Hyundai
>>
2002
>>
Sonata GLS V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Main Harness
Main Harness
Main Harness (1) - View:
Main Harness (1) - Index:

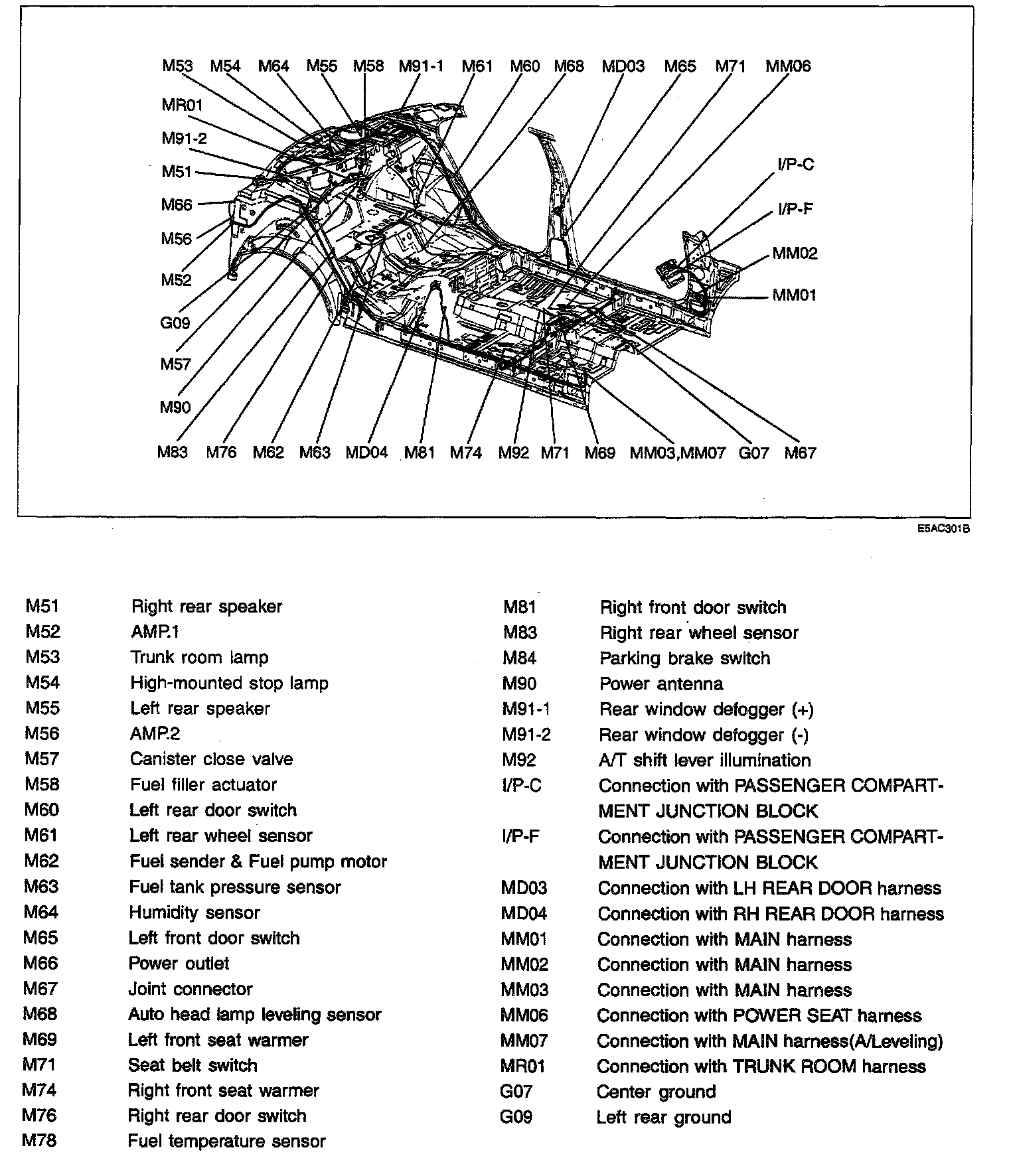

Main Harness (Floor):

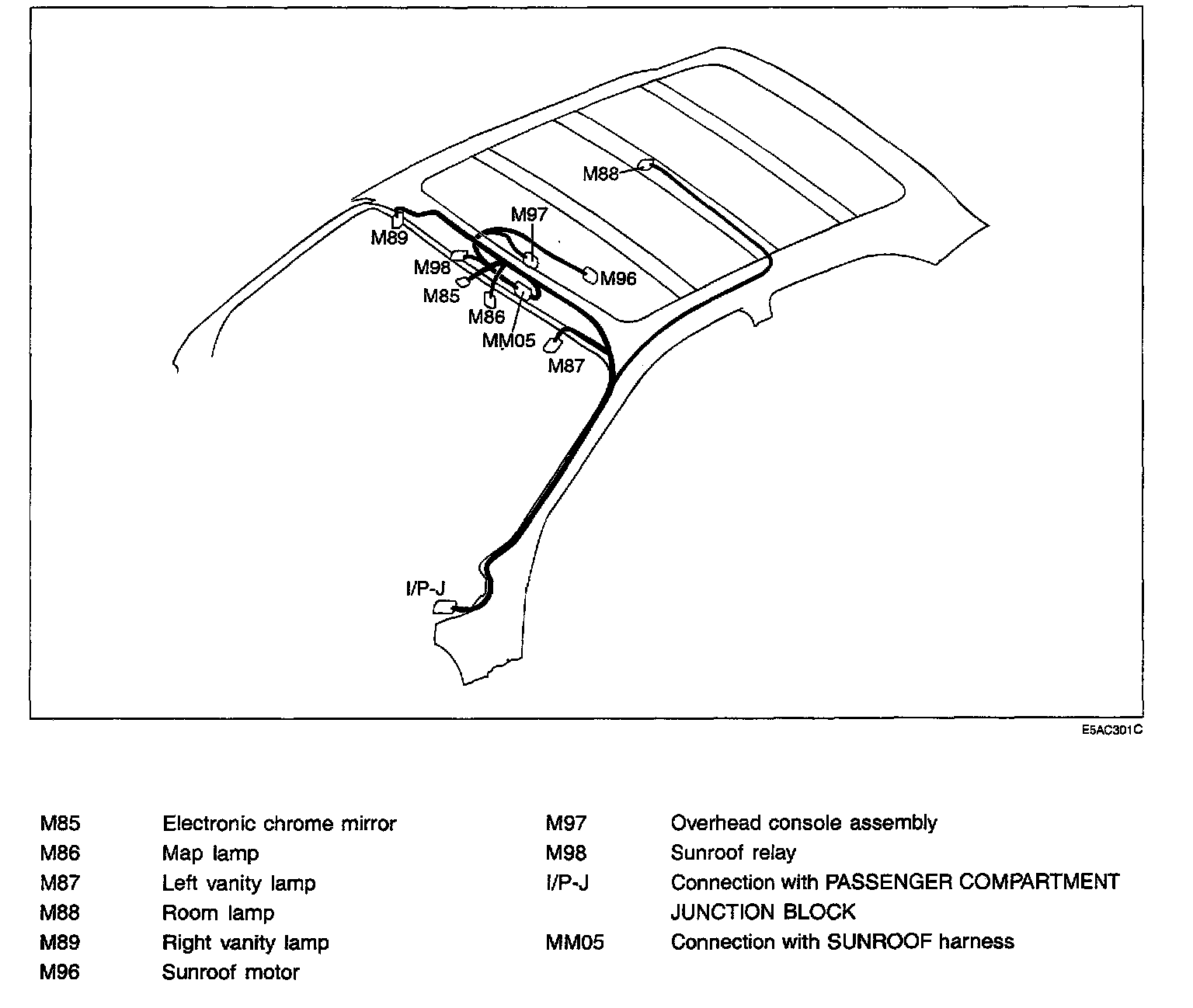

Main Harness (Roof):
Main Harness (Power Seat):
