Blower & A/C Controls (Manual)

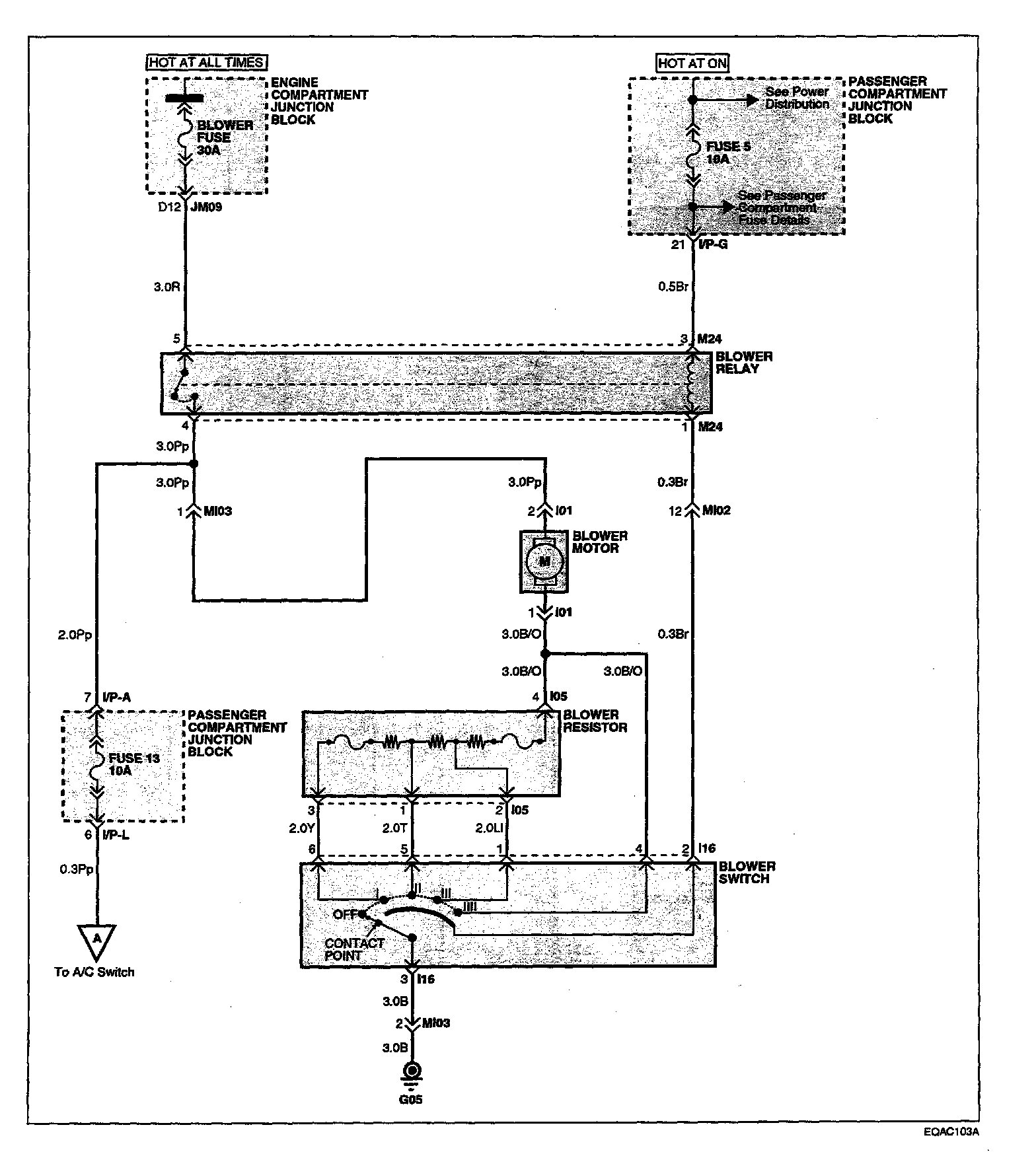

Blower And A/C Controls (Manual) (1):

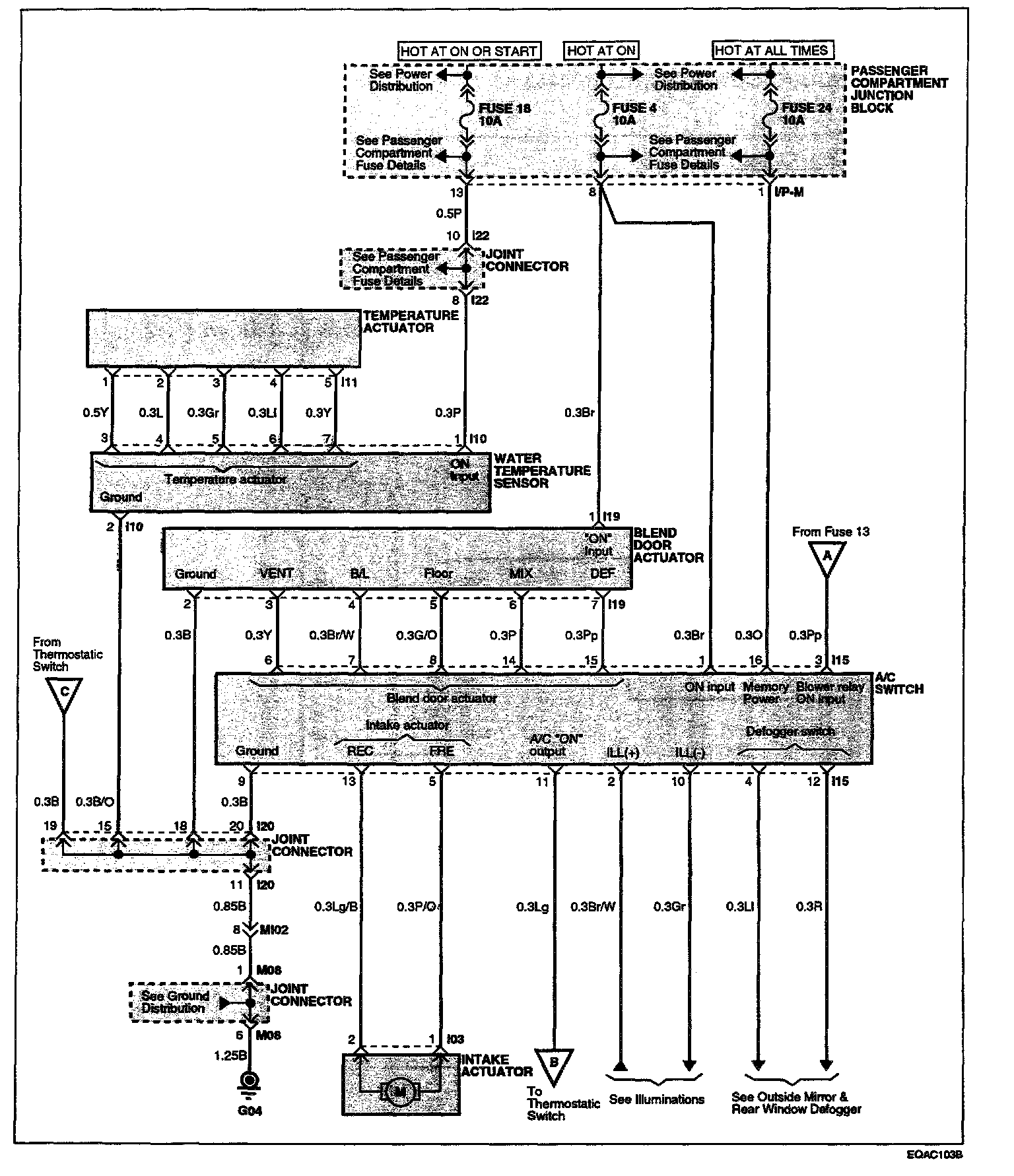

Blower And A/C Controls (Manual) (2):

Blower And A/C Controls (Manual) (3):
