Electrical Diagrams

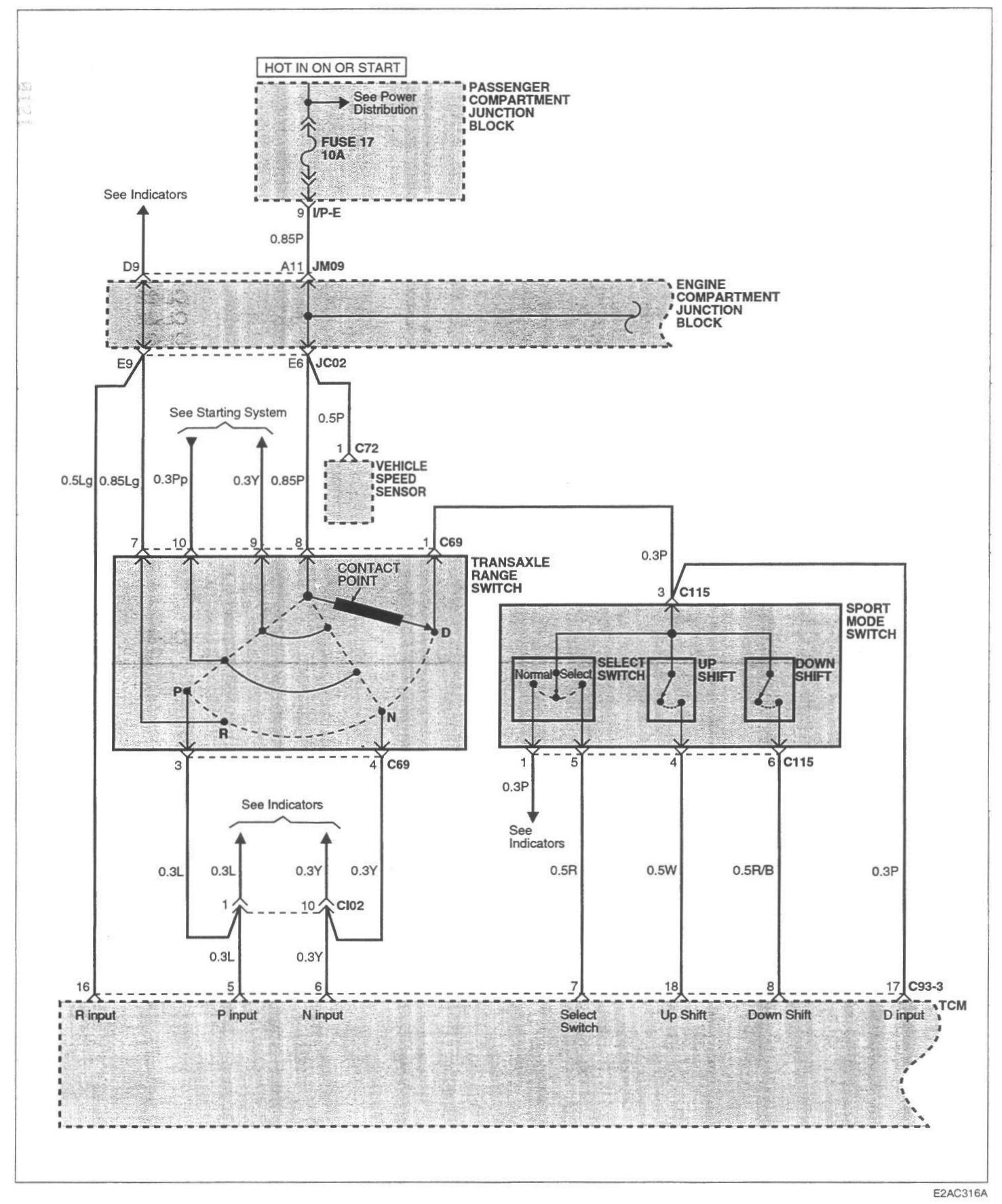

Image SD-106 Automatic Transaxle Control System (V6) (1):

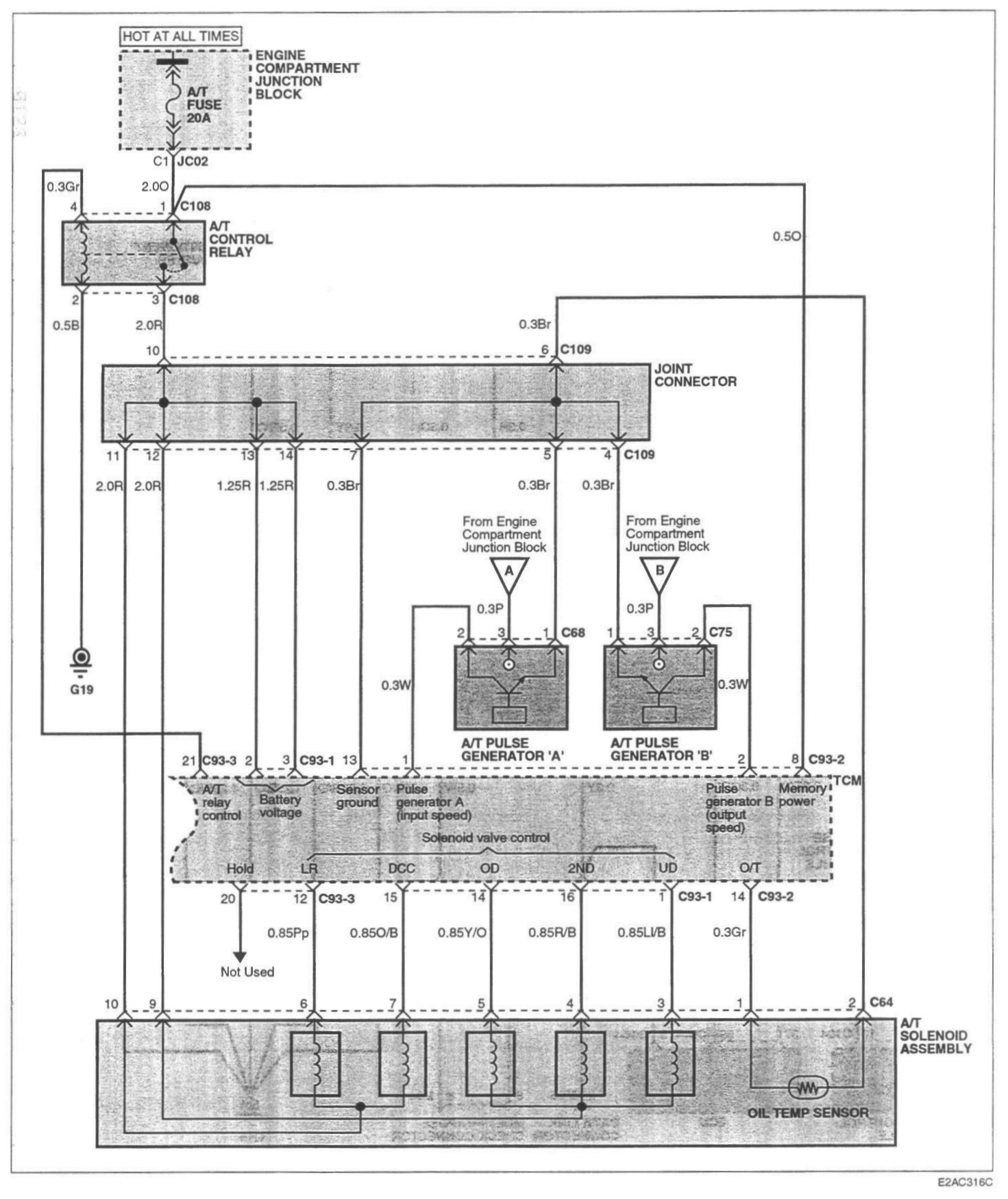

Image SD-107 Automatic Transaxle Control System (V6) (2):
Image SD-108 Automatic Transaxle Control System (V6) (3):
