C Connectors (Control Harness)

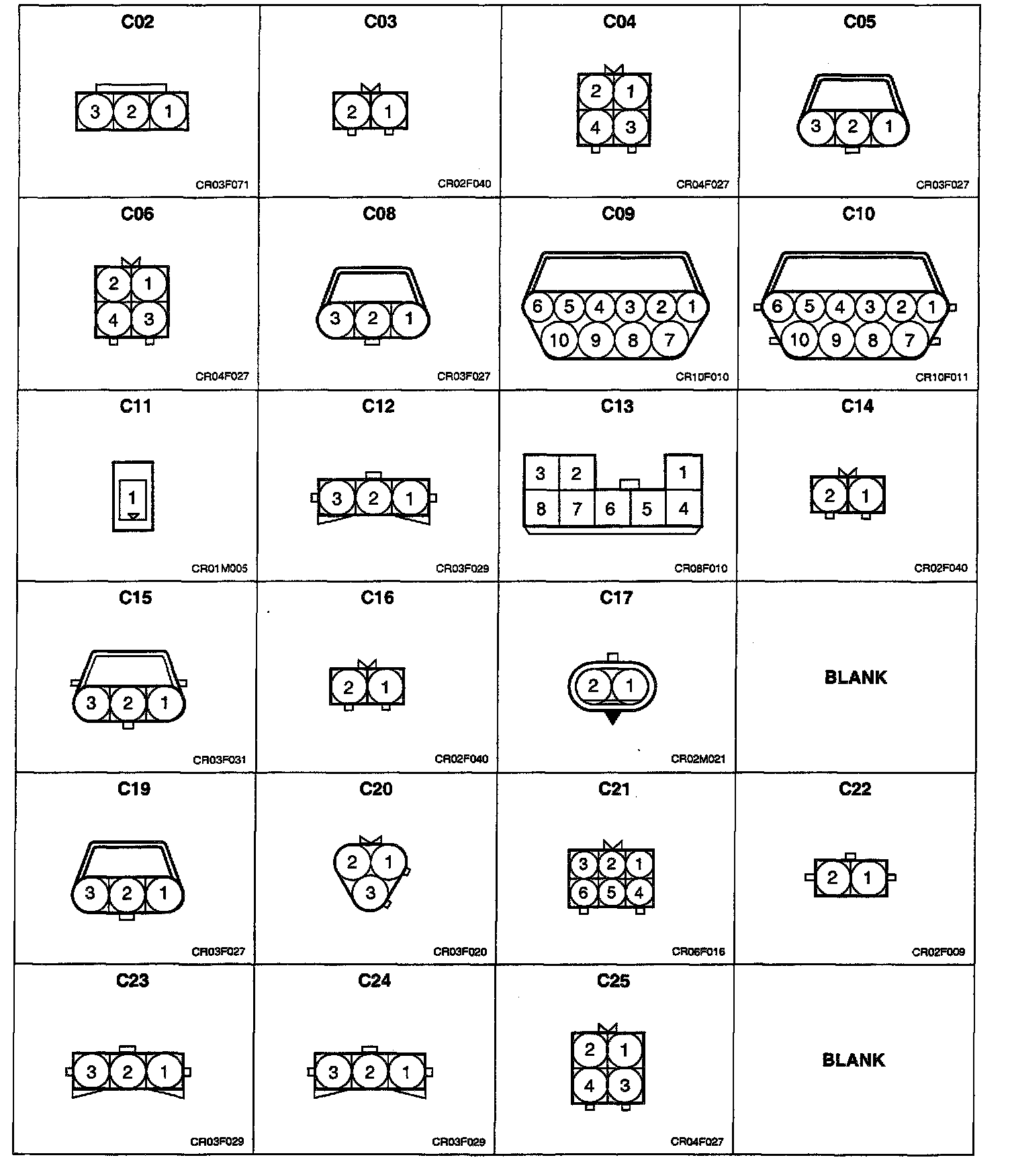

C02 - C25:

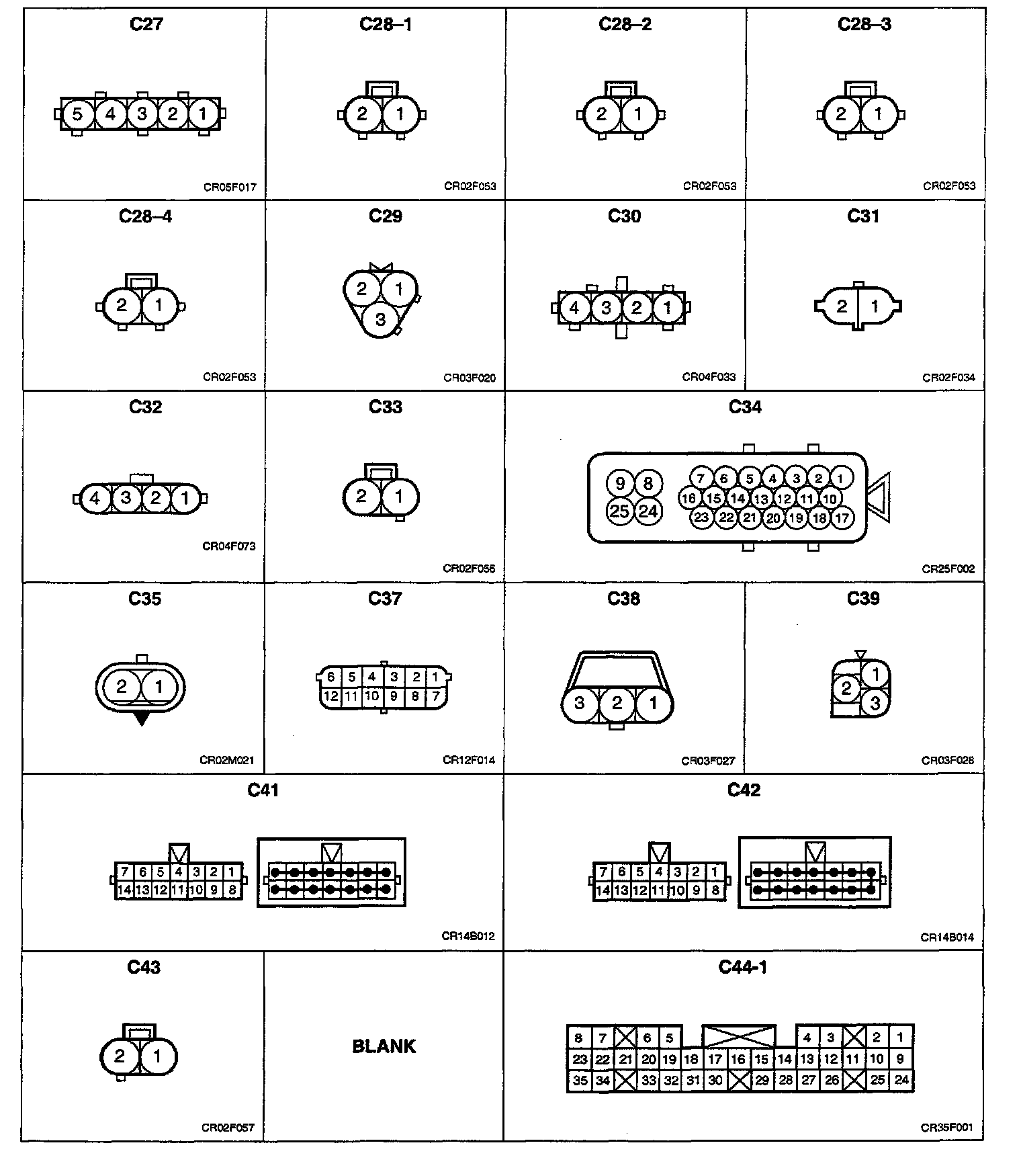

C27, C28-1 - C28-4, C29 - C43, C44-1:

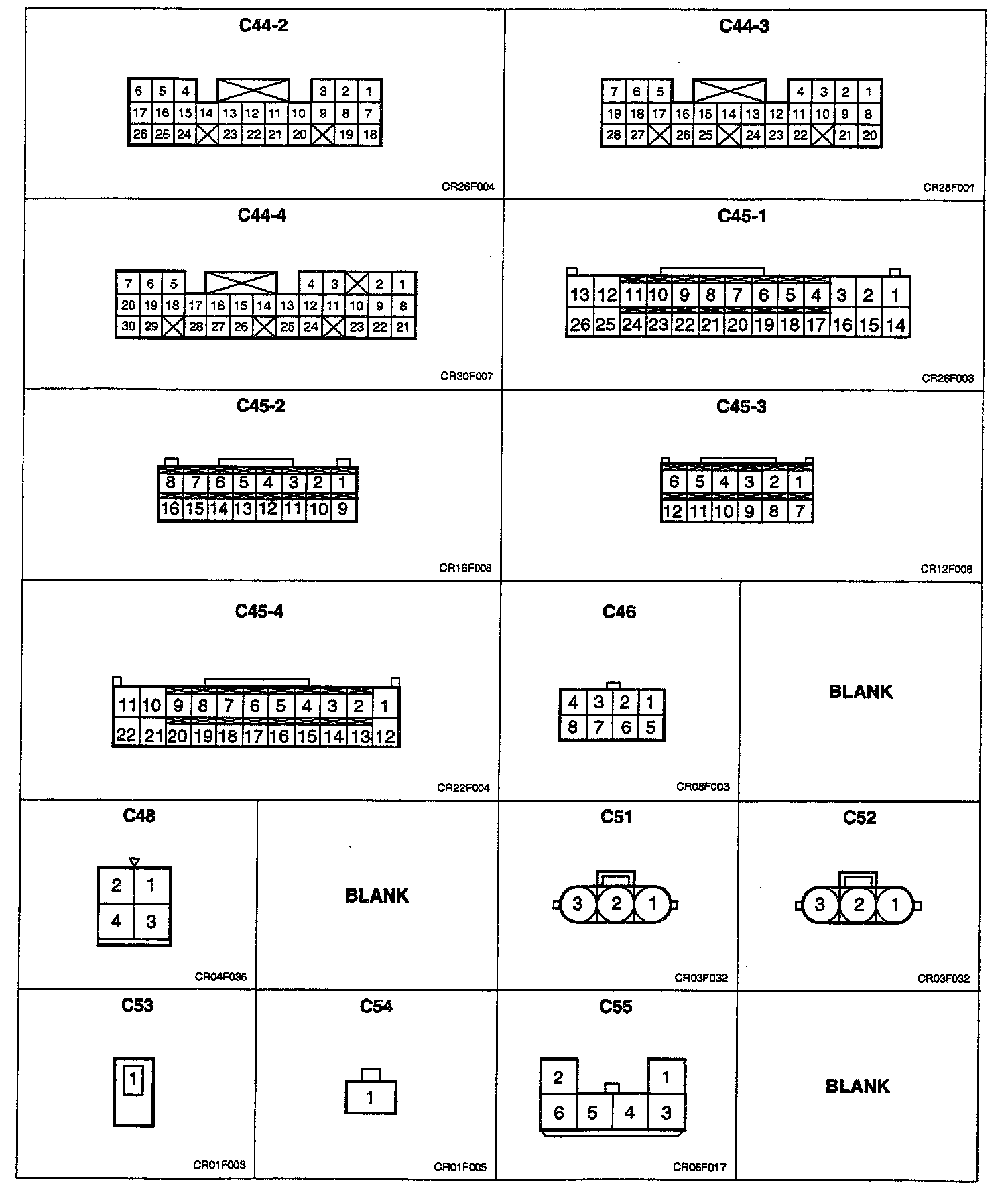

C44-2 - C44-4, C45-1 - C45-4, C46 - C55:

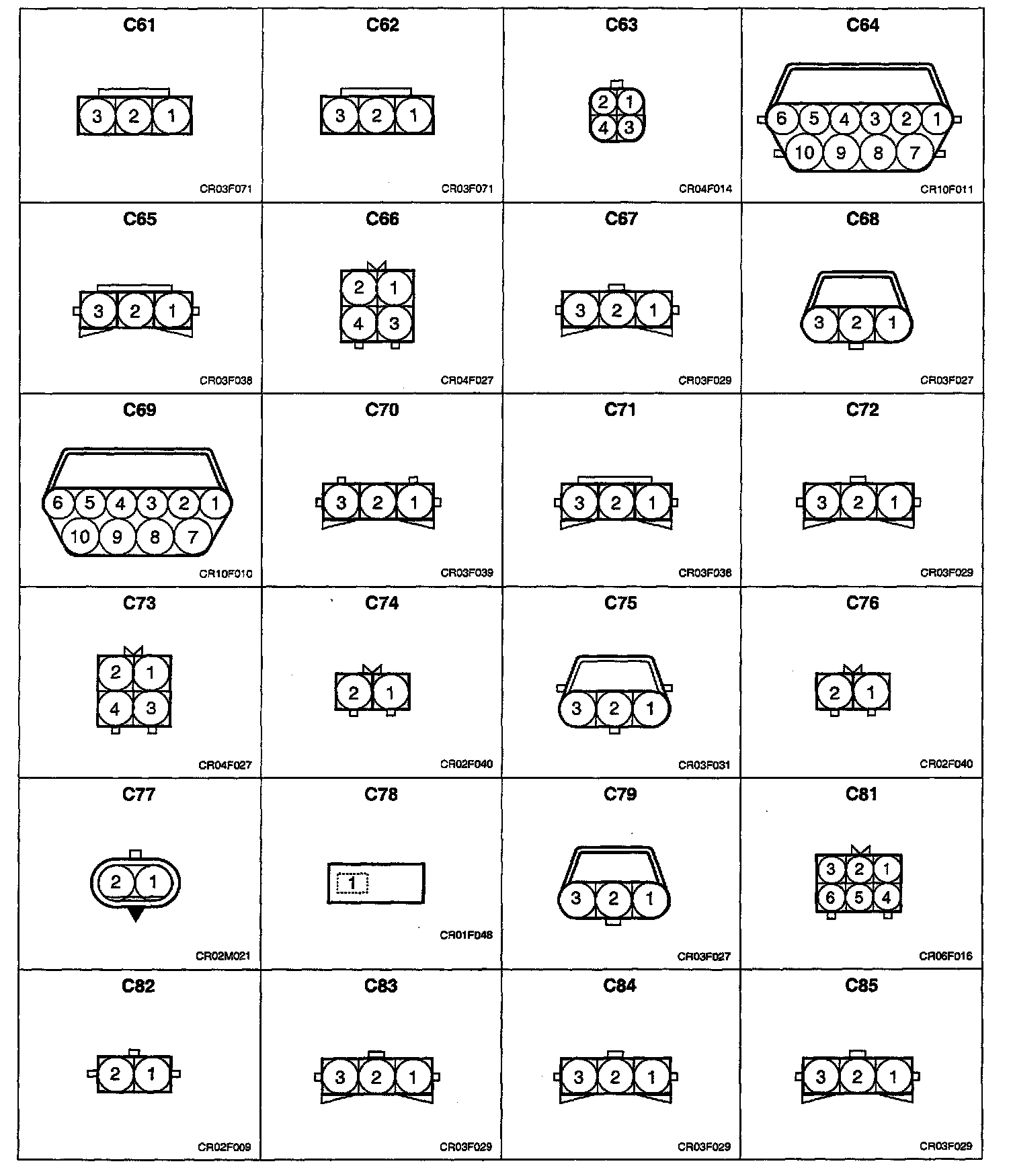

C61 - C85:

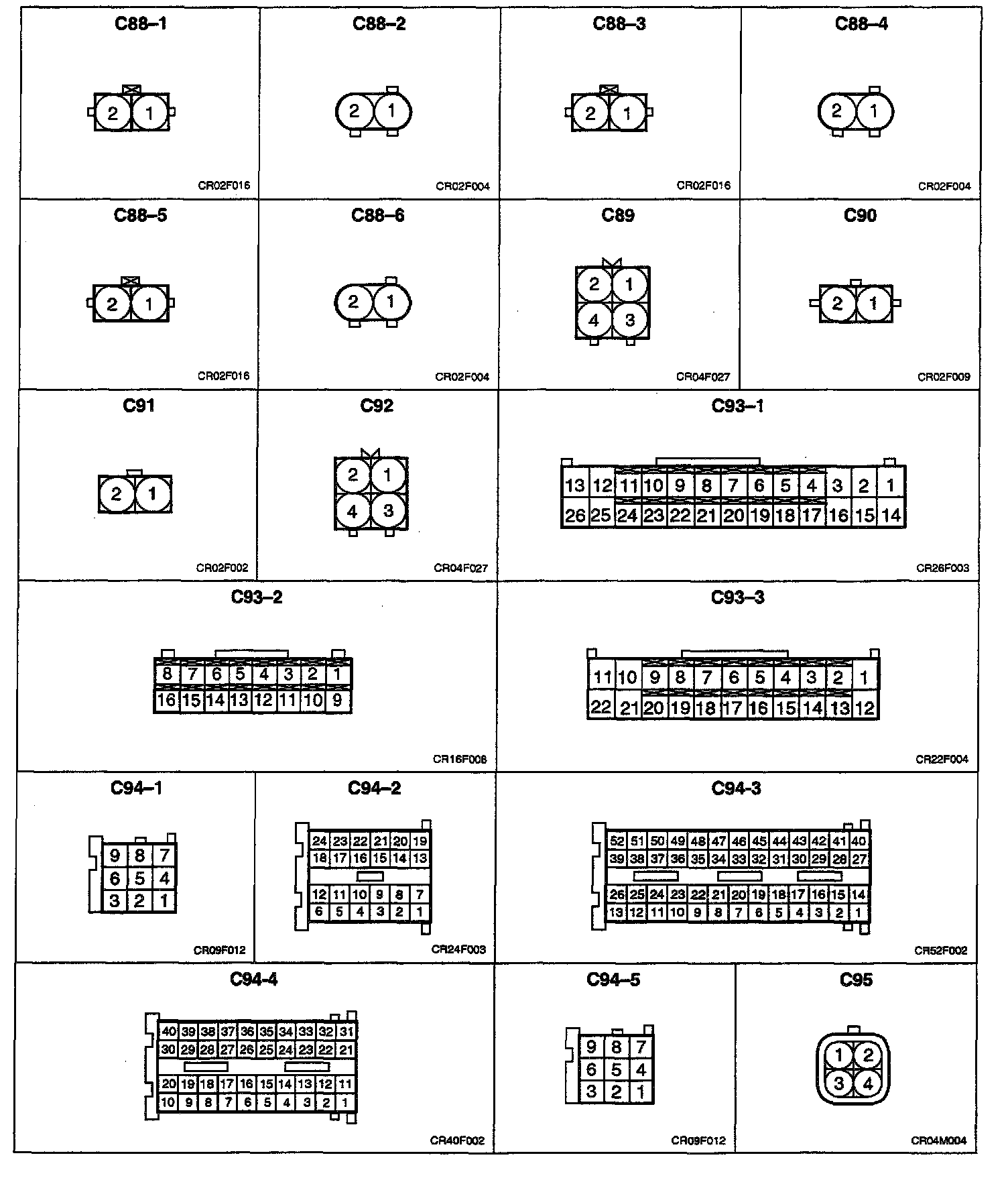

C88-1 - C88-6, C89 -c92, C93-1 - C93-3, C94-1 - C94-5, C95:

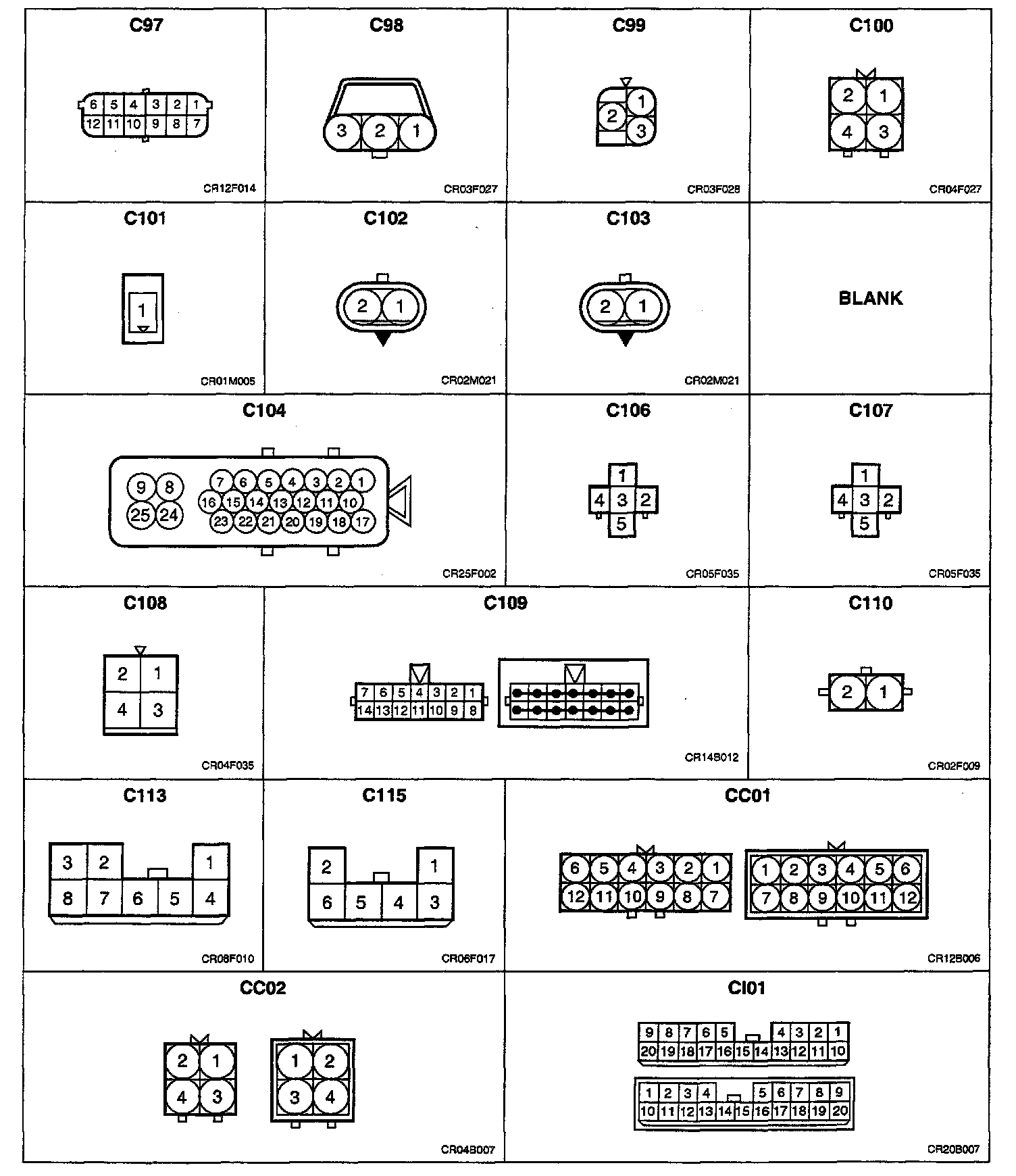

C97 - C115, CC01 - CC02, CI01:

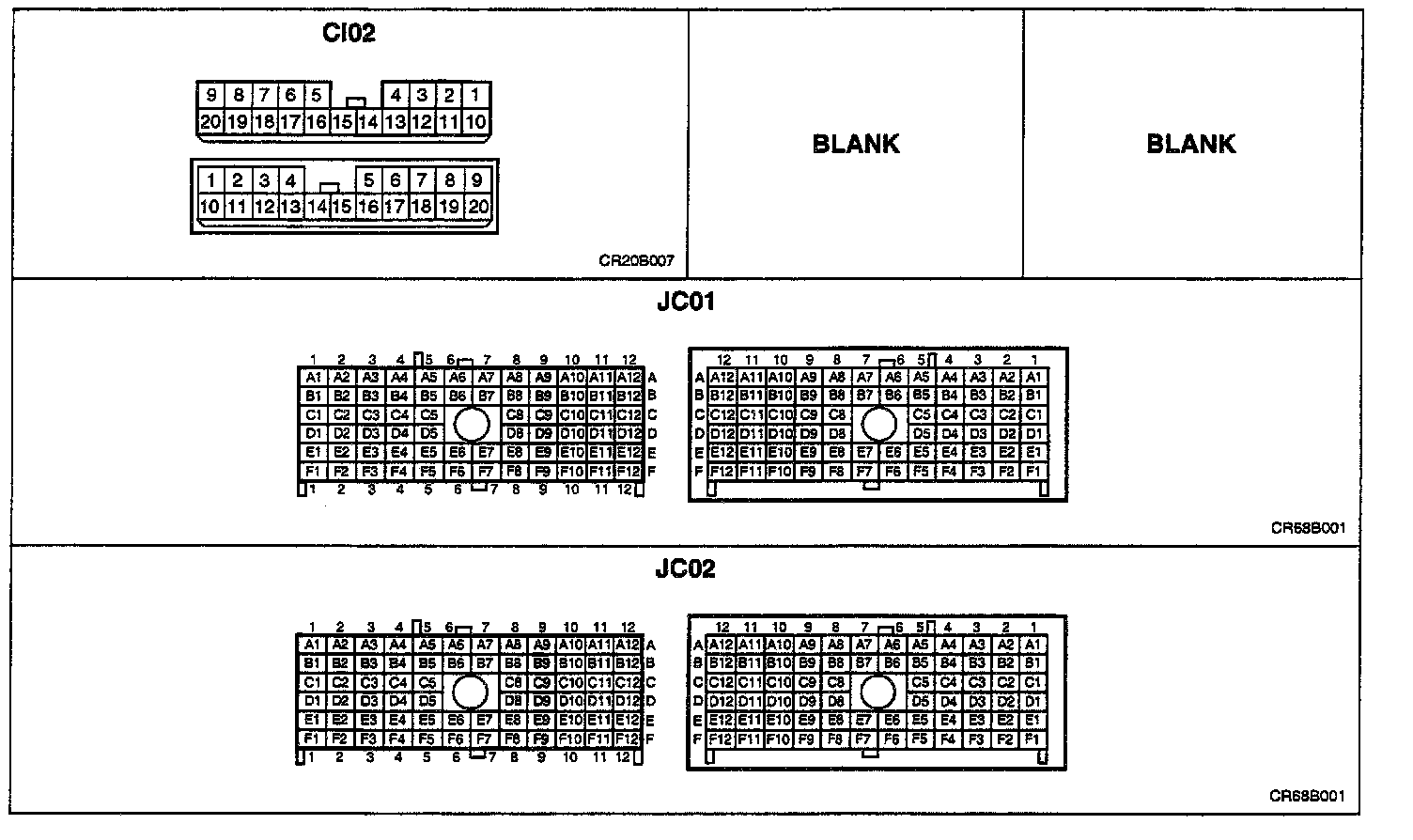

CI02, JC01 - JC02:
