G Connectors (Grounds)

G01:

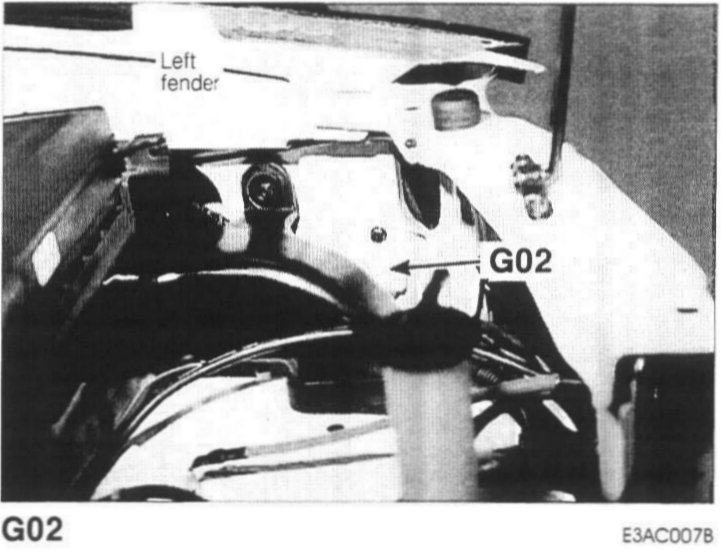

G02:

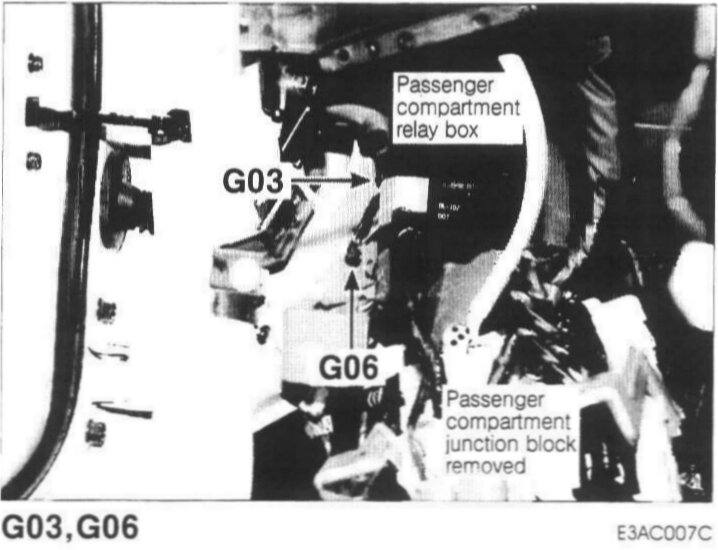

G03, G06:

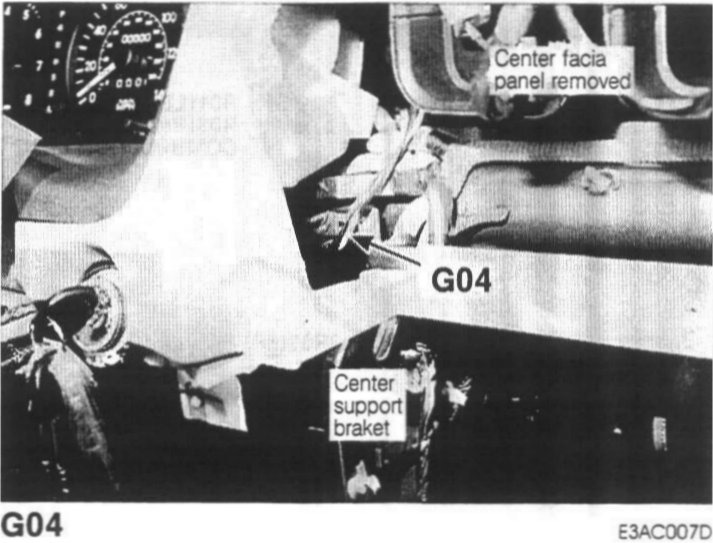

G04:



G05:

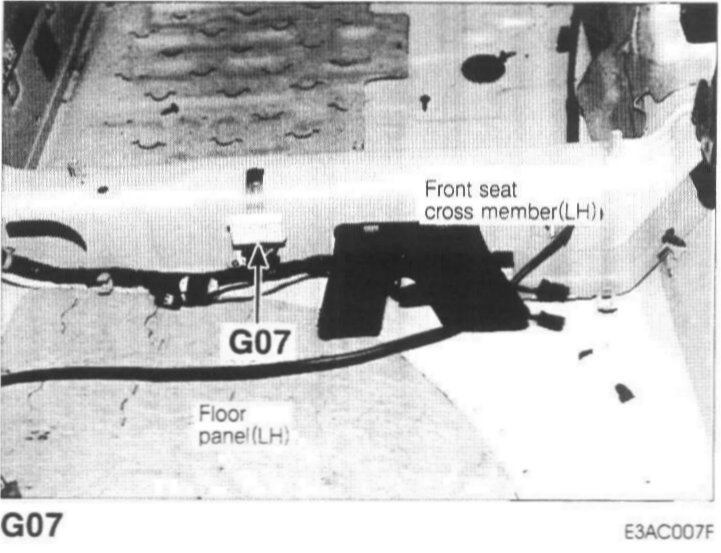

G07:

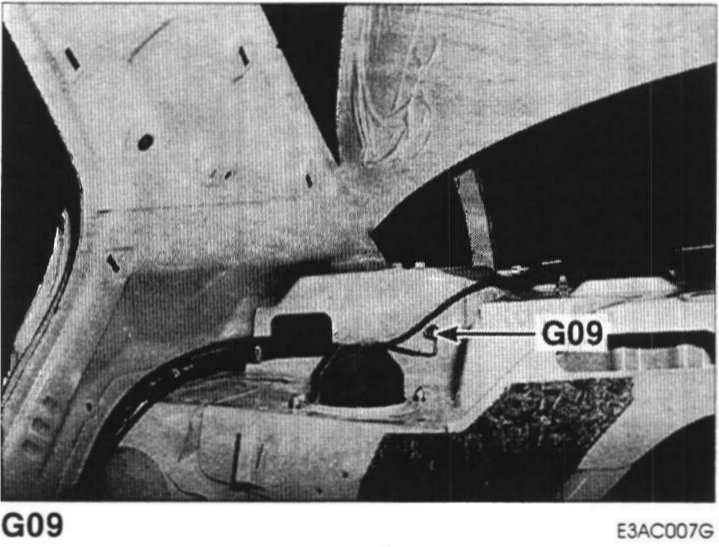

G09:



G10, G13 (DOHC), G14, G18 (V6), G19:



G11:



G12, G17:



G15, G20:

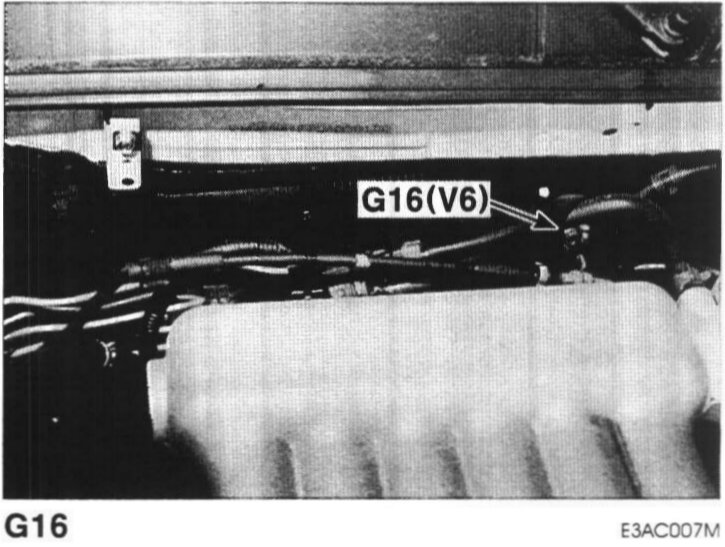

G16:

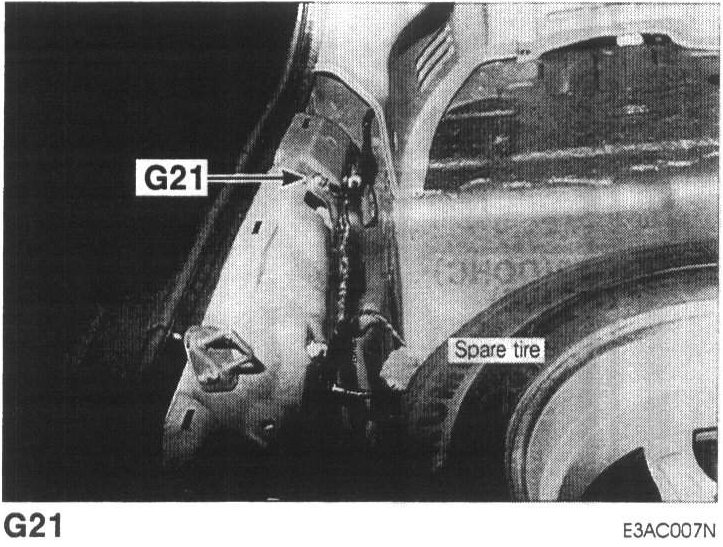

G21:



G24:
