M Connectors (Main Harness) Part 2

M26 Right Side Repeater Lamp:

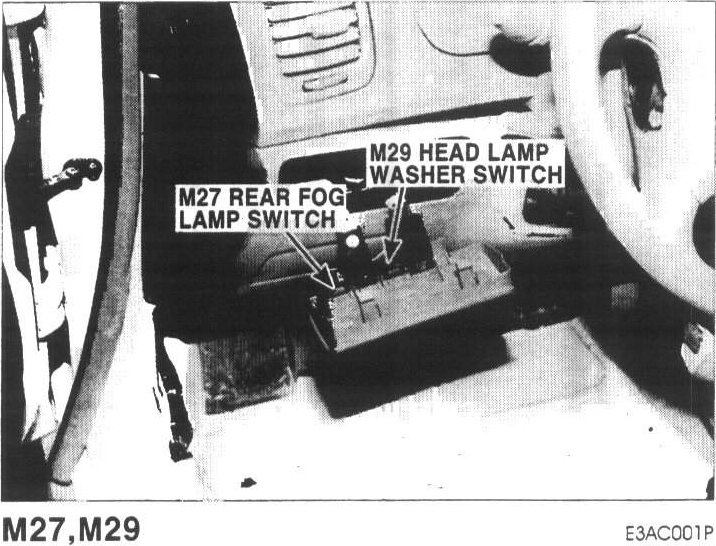

M27 Rear Fog Lamp Switch, M29 Head Lamp Washer Switch:

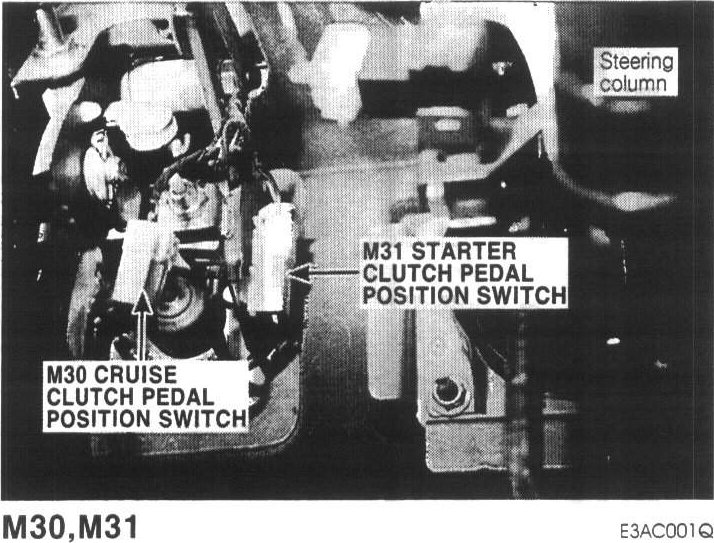

M30 Cruise Clutch Pedal Position Switch, M31 Starter Clutch Pedal Position Switch (M/T):

M33-1 ETACM, M33-2 ETACM:

M33-3 ETACM:

M34 Chime Bell:

M39 Joint Connector:

M40 Left Side Repeater Lamp:

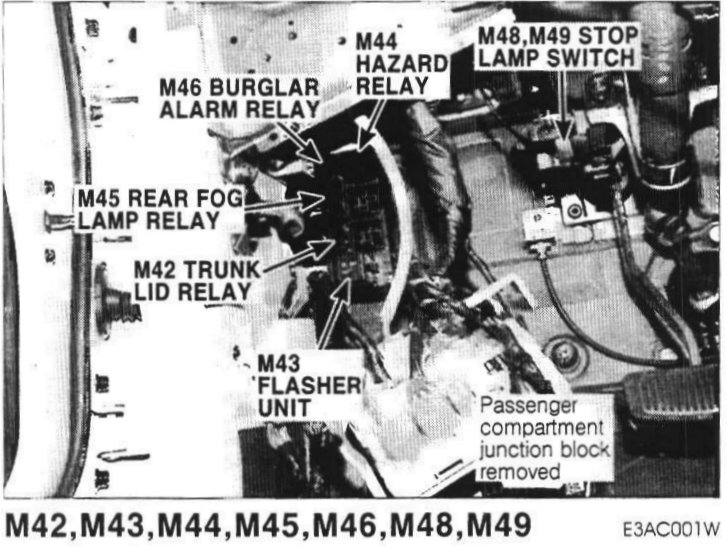

M42 Trunk Lid Relay, M43 Flasher Unit, M44 Hazard Relay, M45 Rear Fog Lamp Relay, M46 Burglar Alarm Relay, M48 Stop Lamp Switch (With Cruise), M49 Stop Lamp Switch (W/O Cruise):

M51 Right Rear Speaker, M55 Left Rear Speaker:

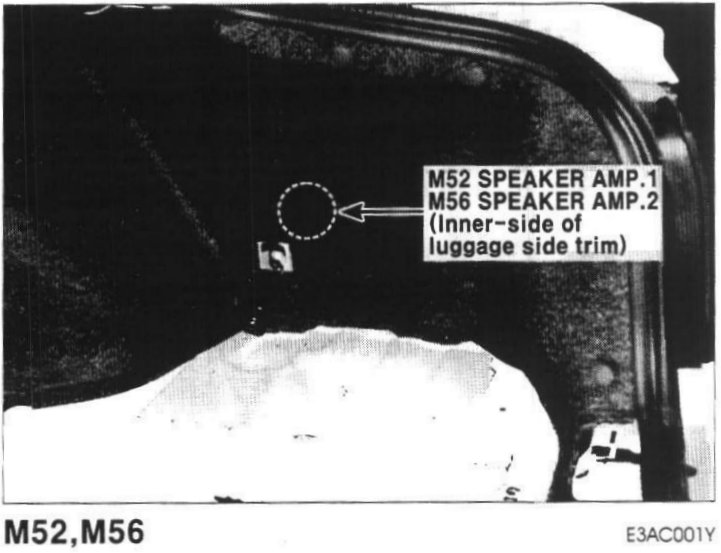

M52 AMP 1 (With Speaker AMP), M56 AMP 2 (With Speaker AMP):

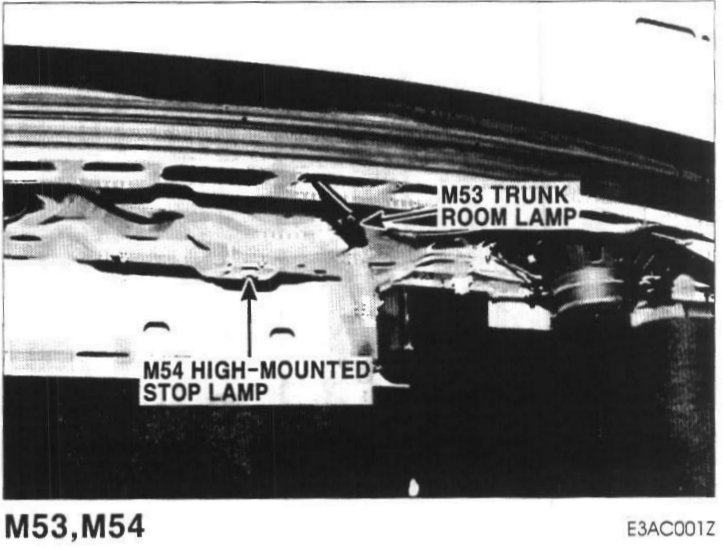

M53 Trunk Room Lamp, M54 High-mounted Stop Lamp:
