M Connectors (Main Harness) Part 5

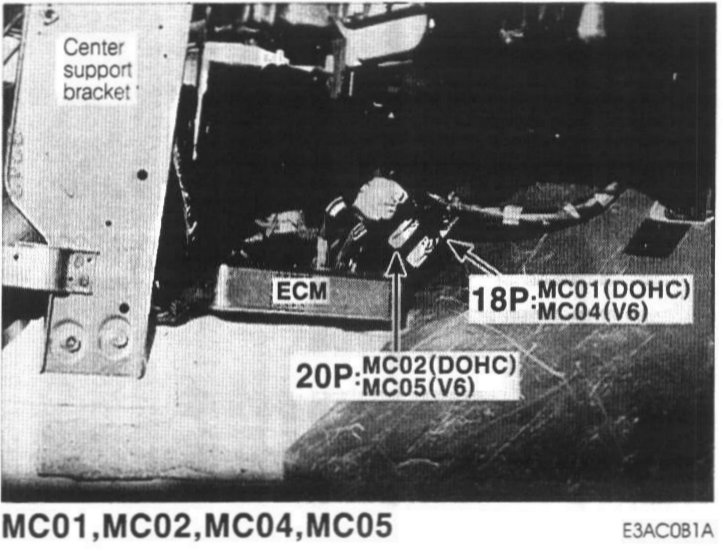

MC01 (DOHC), MC02 (DOHC), MC04 (V6), MC05 (V6):

MD01 (LH), MD02 (RH):

MD03 (LH), MD04 (RH):

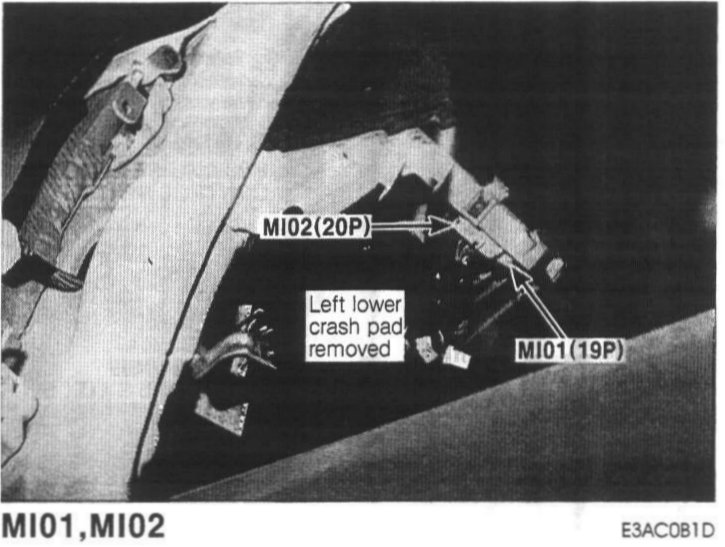

MI01 (19P), MI02 (20P):

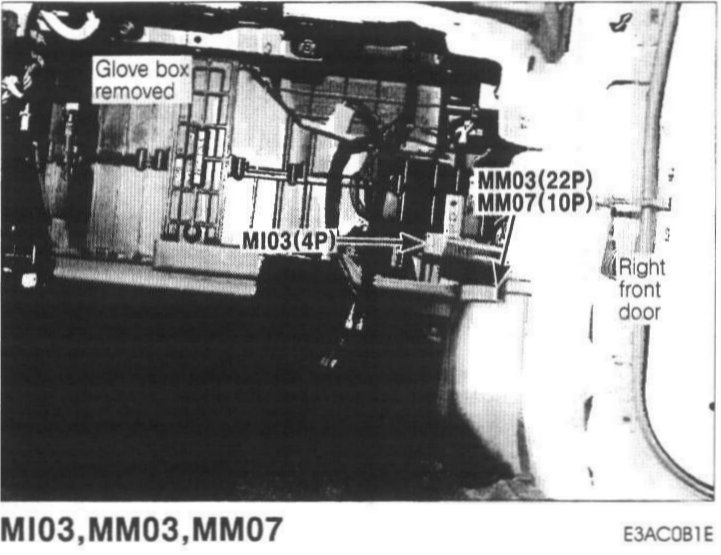

MI03 (4P), MM03 (22P), MM07 (10P):

MM01 (20P), MM02 (16P):

MM04 (With A/Bag), MM09 (W/O A/Bag):

MM05 (6P):

MM06 (2P):

MR01 (10P):

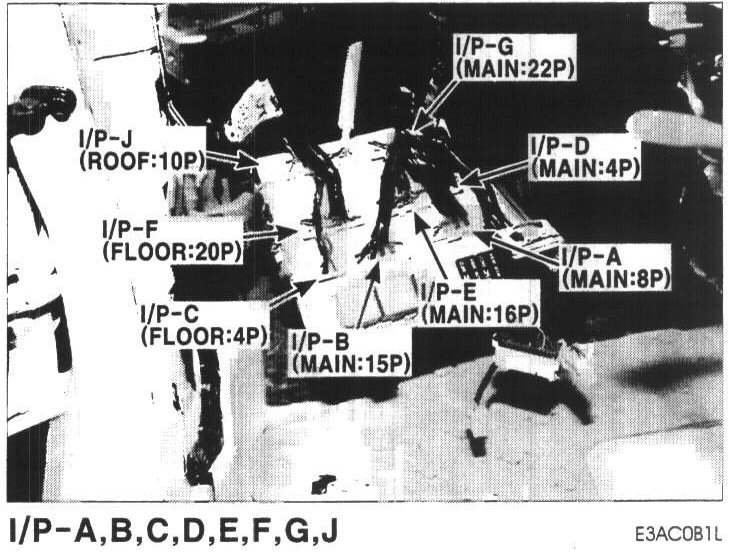

I/P-A (Main: 8P), I/P-B (Main: 15P), I/P-C (Floor: 4P), I/P-D (Main: 4P), I/P-E (Main: 18P), I/P-F (Floor: 20P), I/P-G (Main: 22P), I/P-J (Floor: 10P):

JM09, JM10 (2P):
