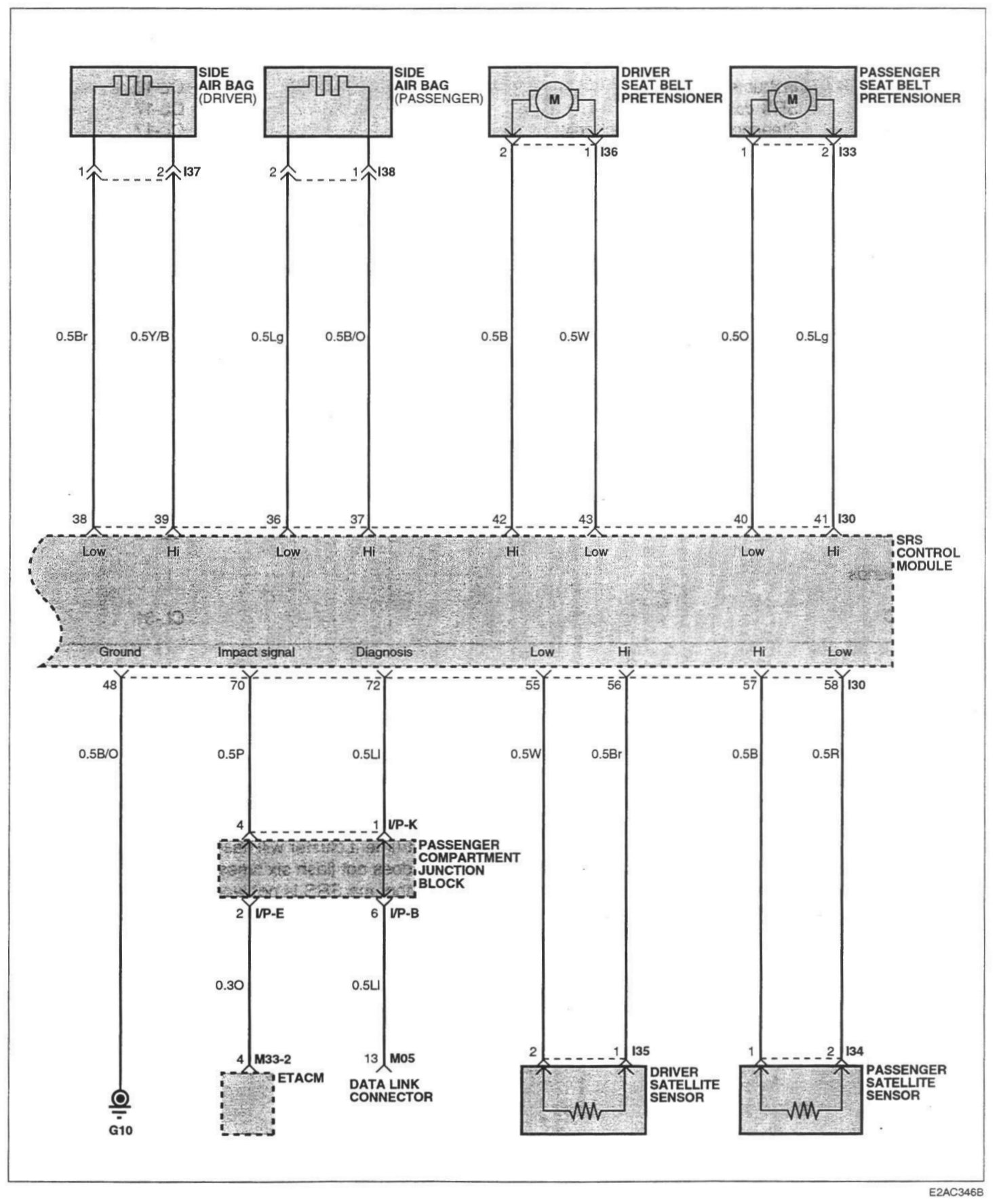

Image Sd-203 Air Bag System (SRS)
Image Sd-203 Air Bag System (SRS)
Image SD-202 Air Bag System (SRS) (1):
Image SD-203 Air Bag System (SRS) (2):
