Data Link Connector
Data Link Connector

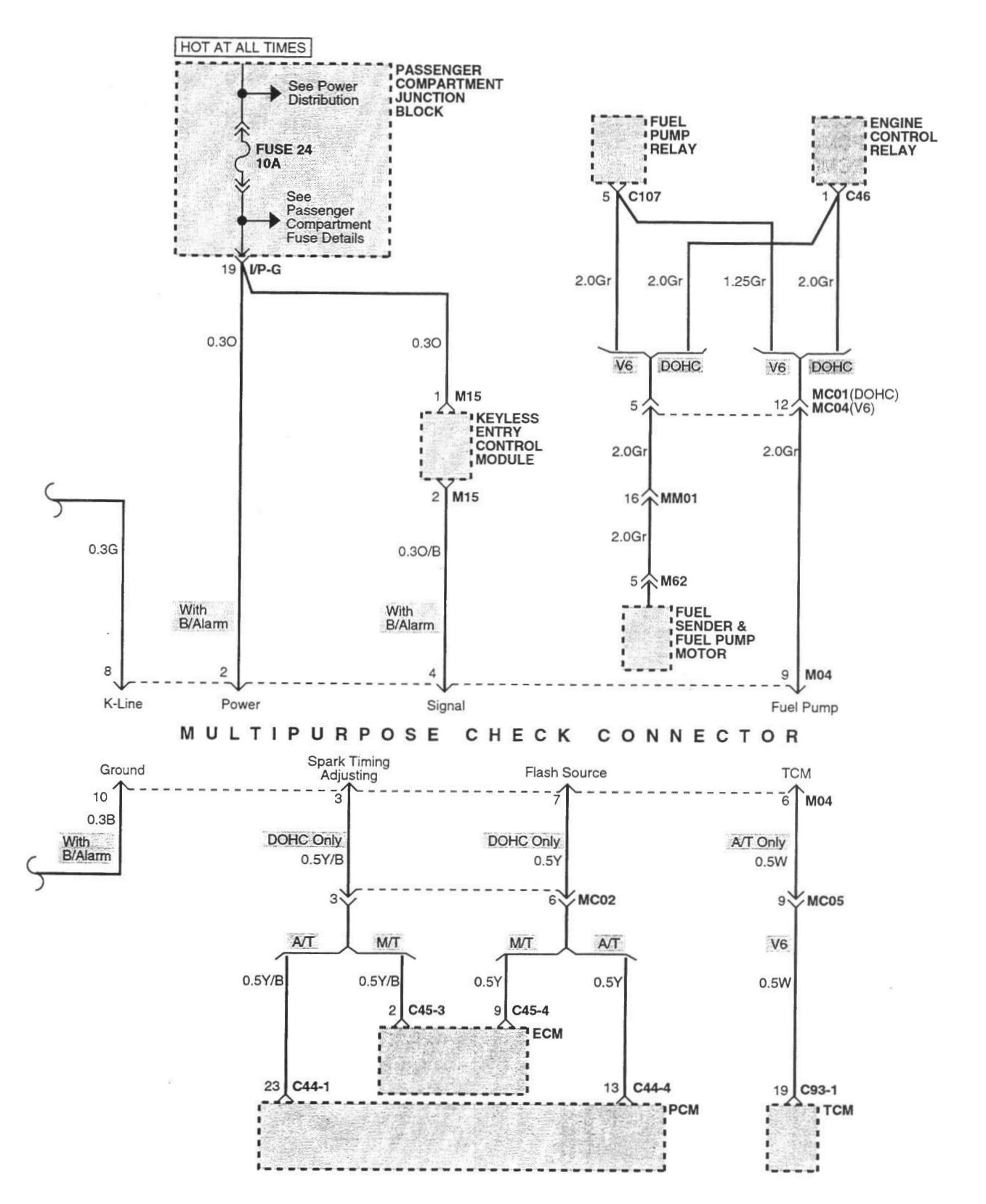

Image SD-50 Data Link Details (1):
Image SD-51 Data Link Details (2):
