Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
2002
>>
Sonata L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Vehicle Speed Sensor
Vehicle Speed Sensor

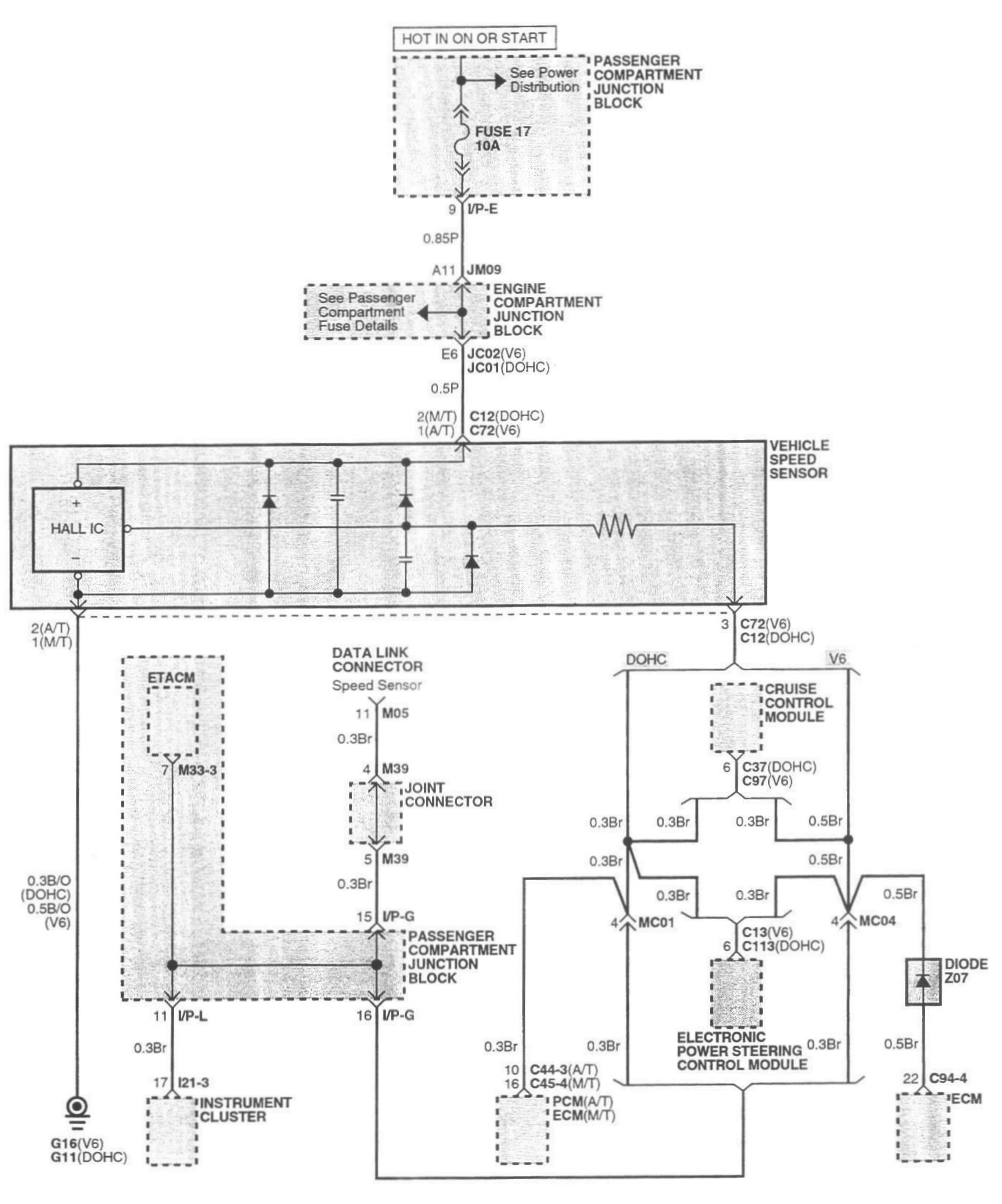

Image SD-54 Vehicle Speed Sensor (1):
