Radio, Stereo, and Compact Disc
Radio, Stereo, and Compact Disc

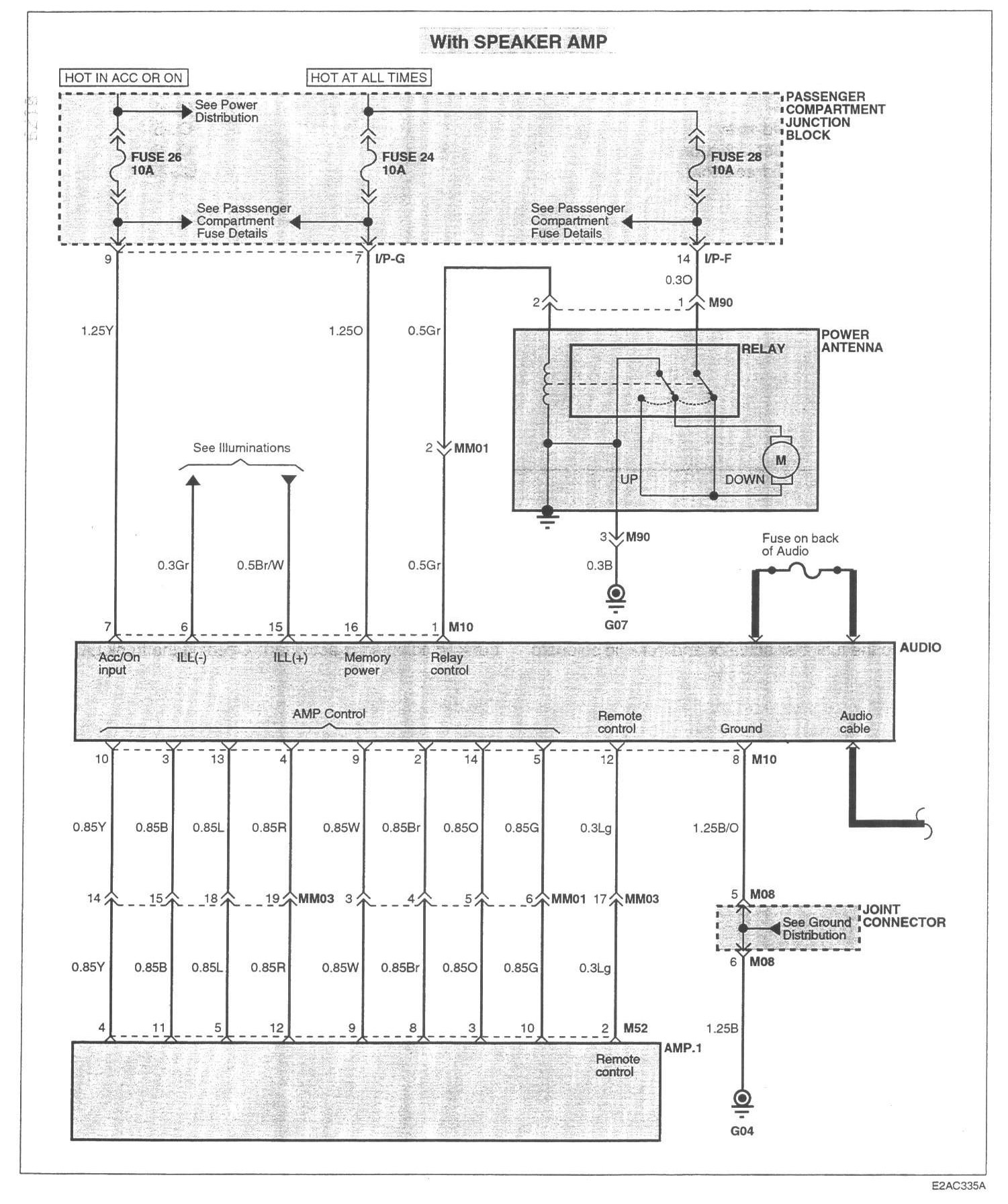

Image SD-164 Audio System (1):

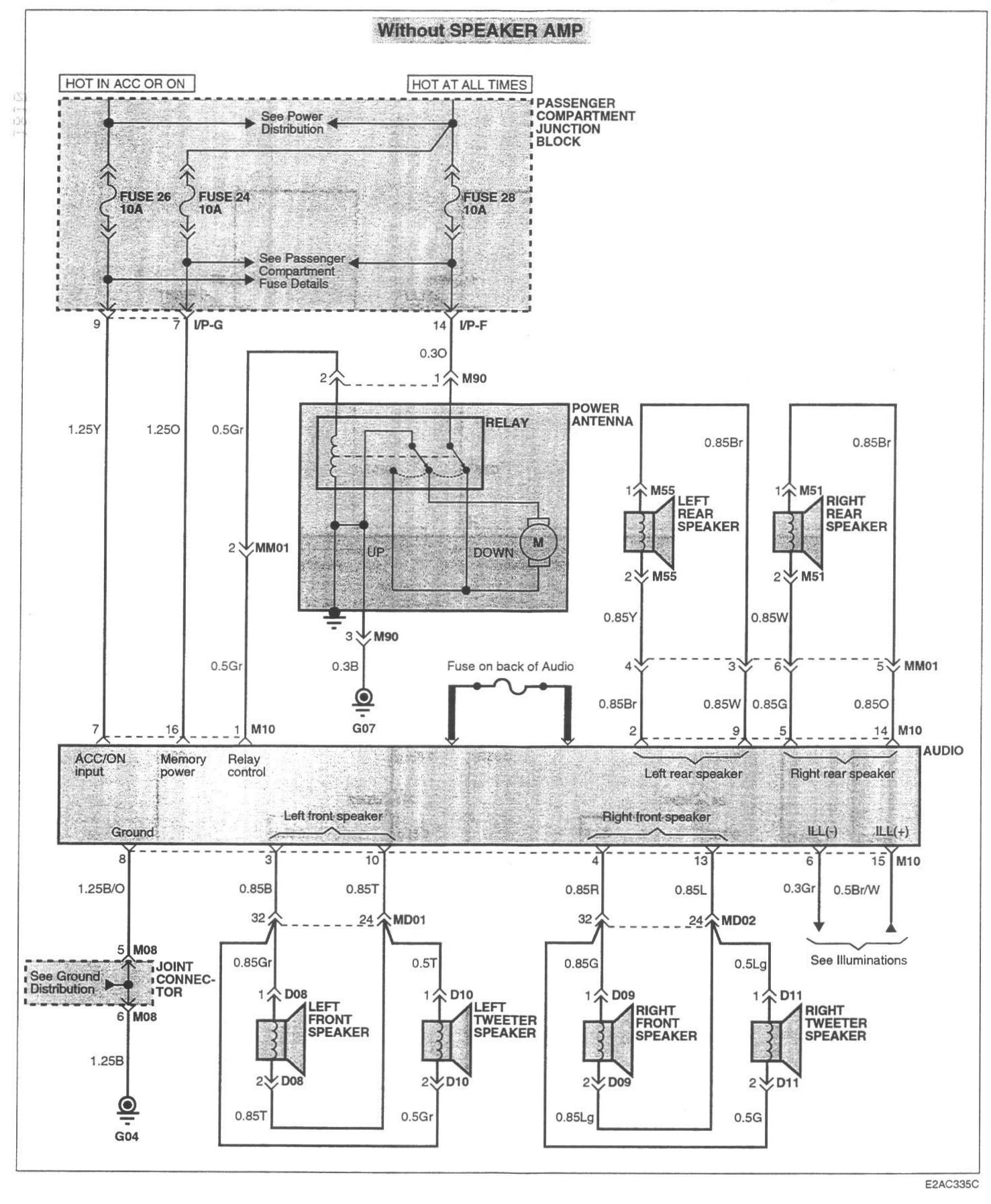

Image SD-165 Audio System (2):

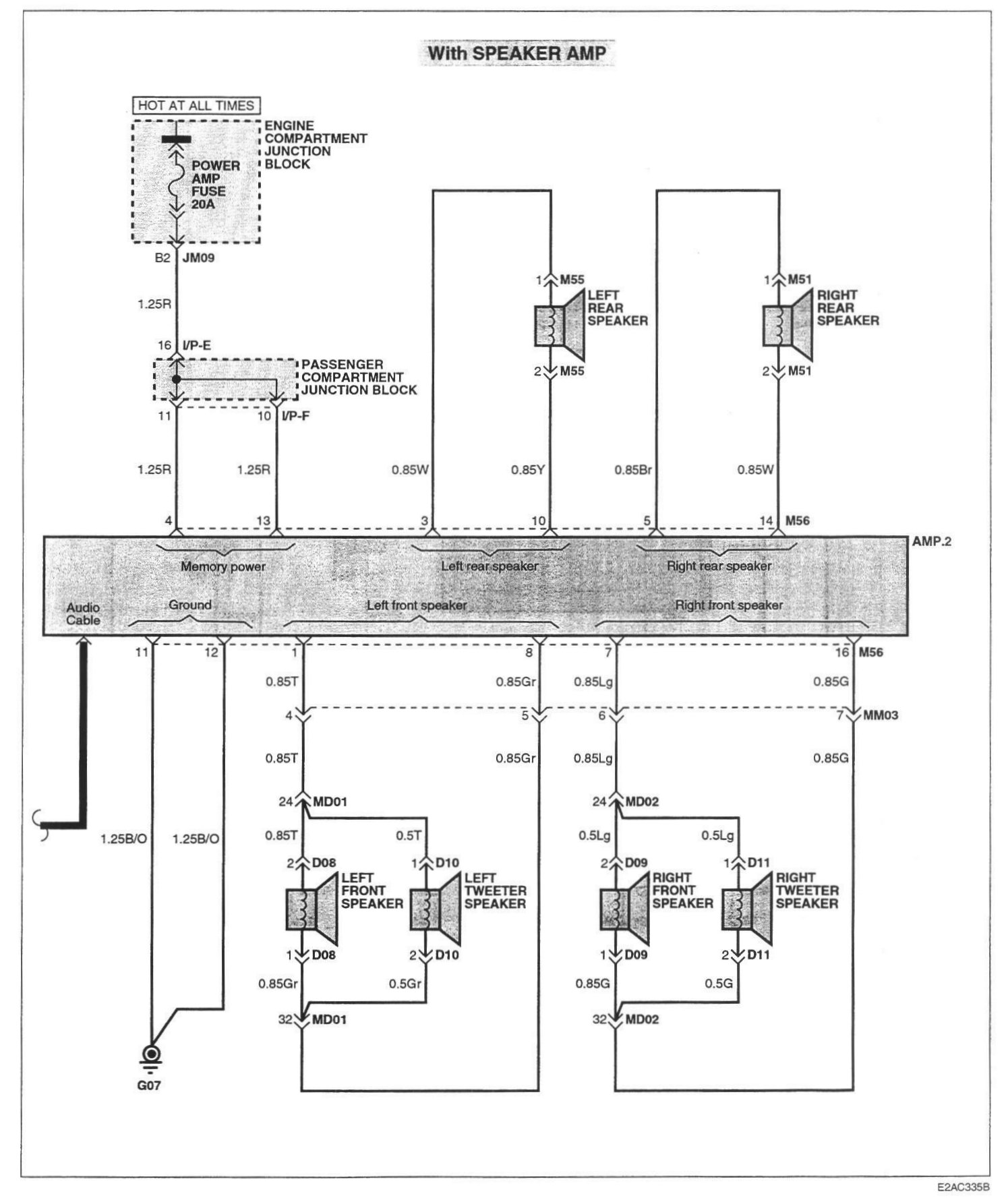

Image SD-166 Audio System (3):
