Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
2002
>>
Sonata L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
>>
System Diagram
System Diagram

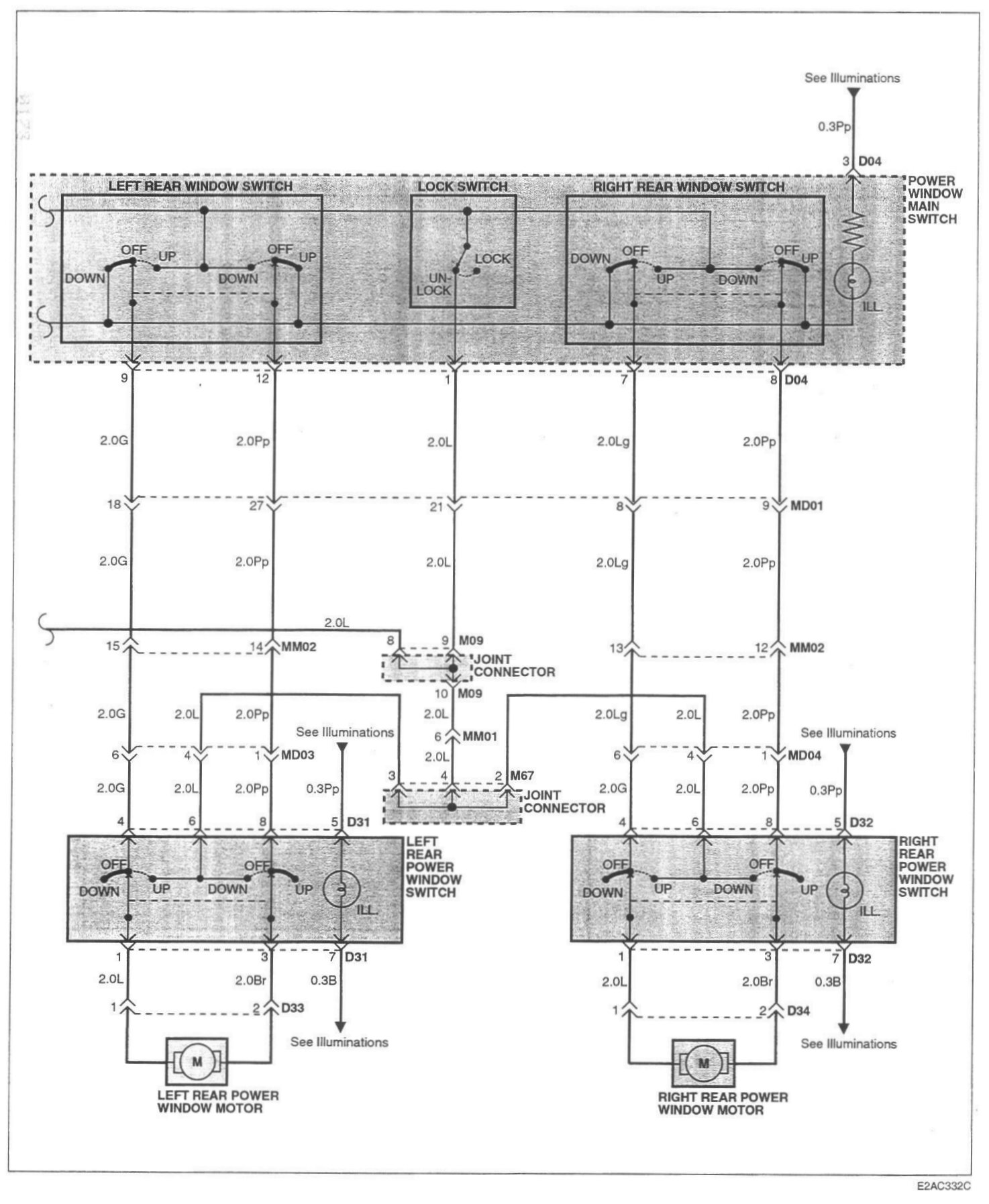

Image SD-156 Power Windows (1):

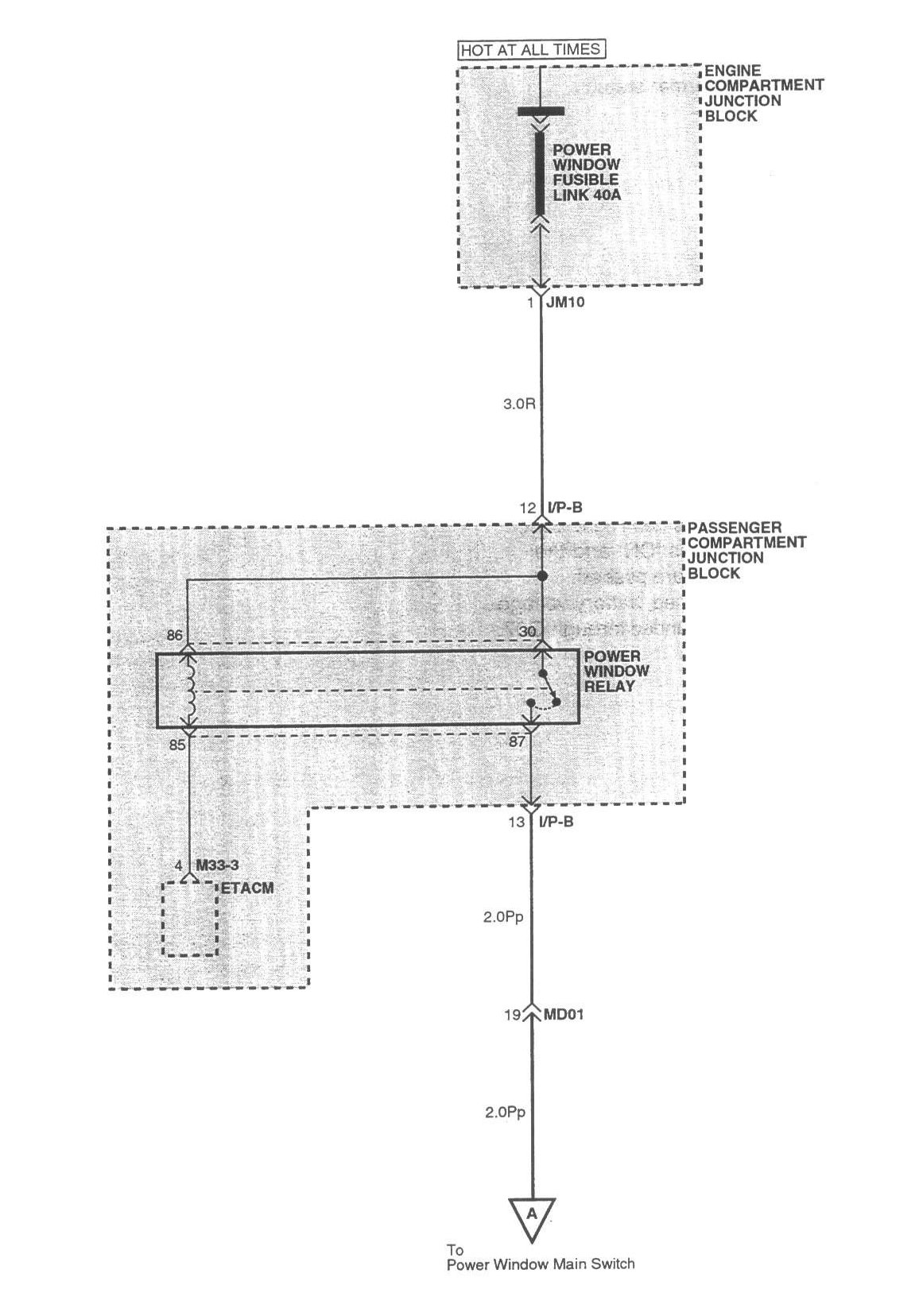

Image SD-157 Power Windows (2):
Image SD-158 Power Windows (3):
