Blower & A/C Controls (Auto)

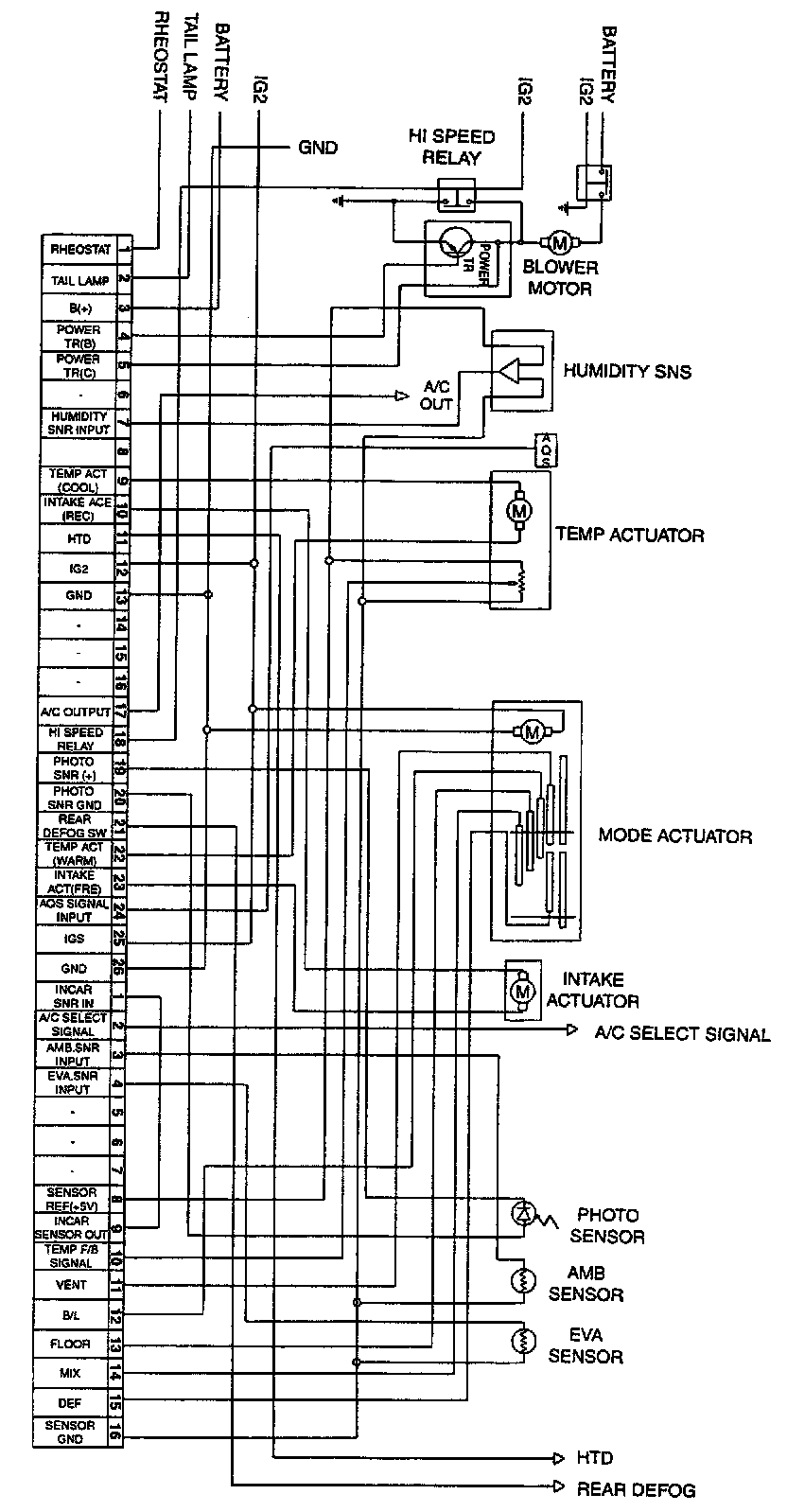

Blower And A/C Controls (Automatic) (1):

Blower And A/C Controls (Automatic) (2):

Blower And A/C Controls (Automatic) (3):
