Lighting and Horns
>>
Trunk Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

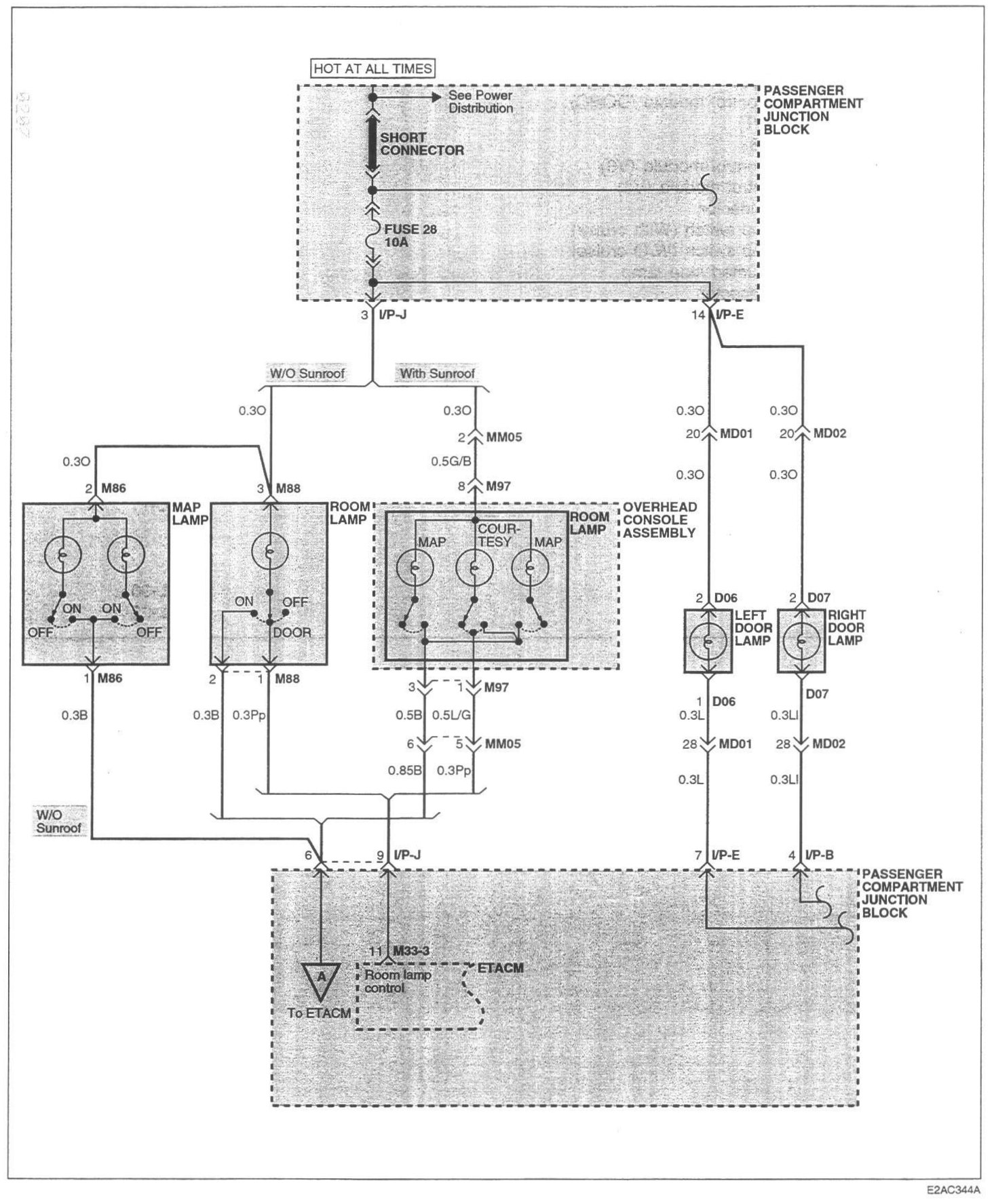

Image SD-192 Courtesy And Trunk Room Lamps (1):

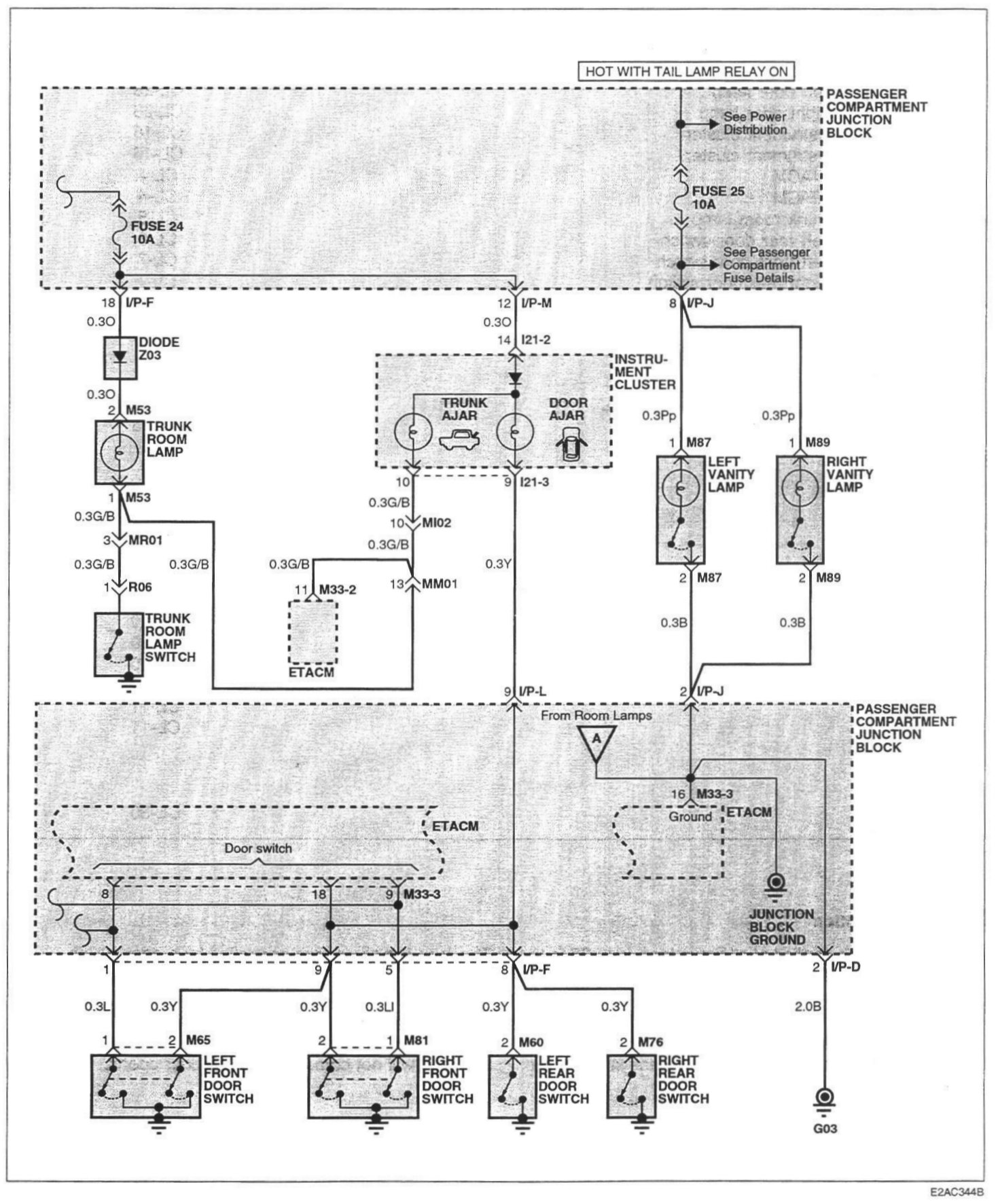

Image SD-193 Courtesy And Trunk Room Lamps (2):
