MFI Control System (DOHC With A/T)

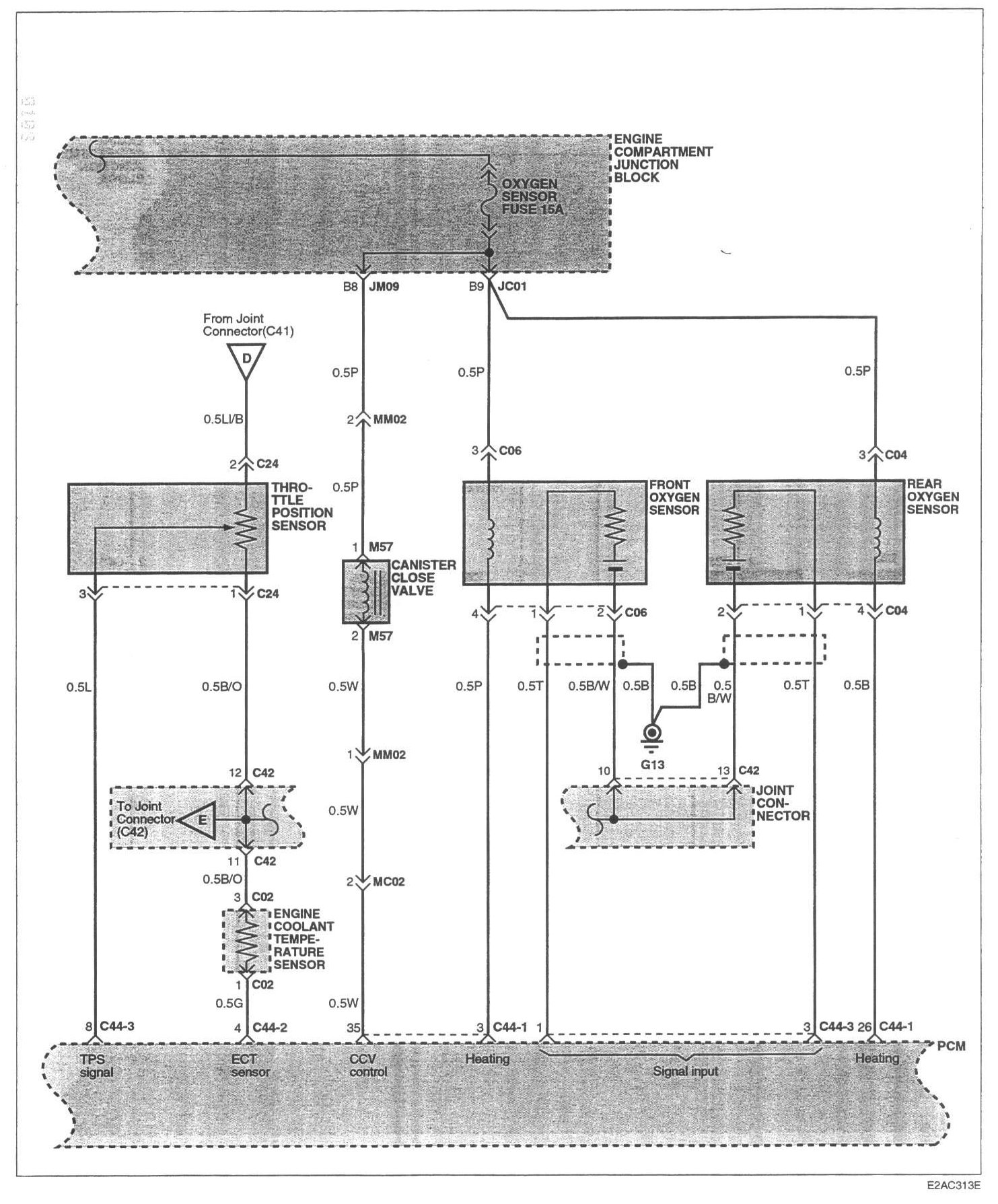

Image SD-84 MFI Control System (DOHC With A/T) (1):

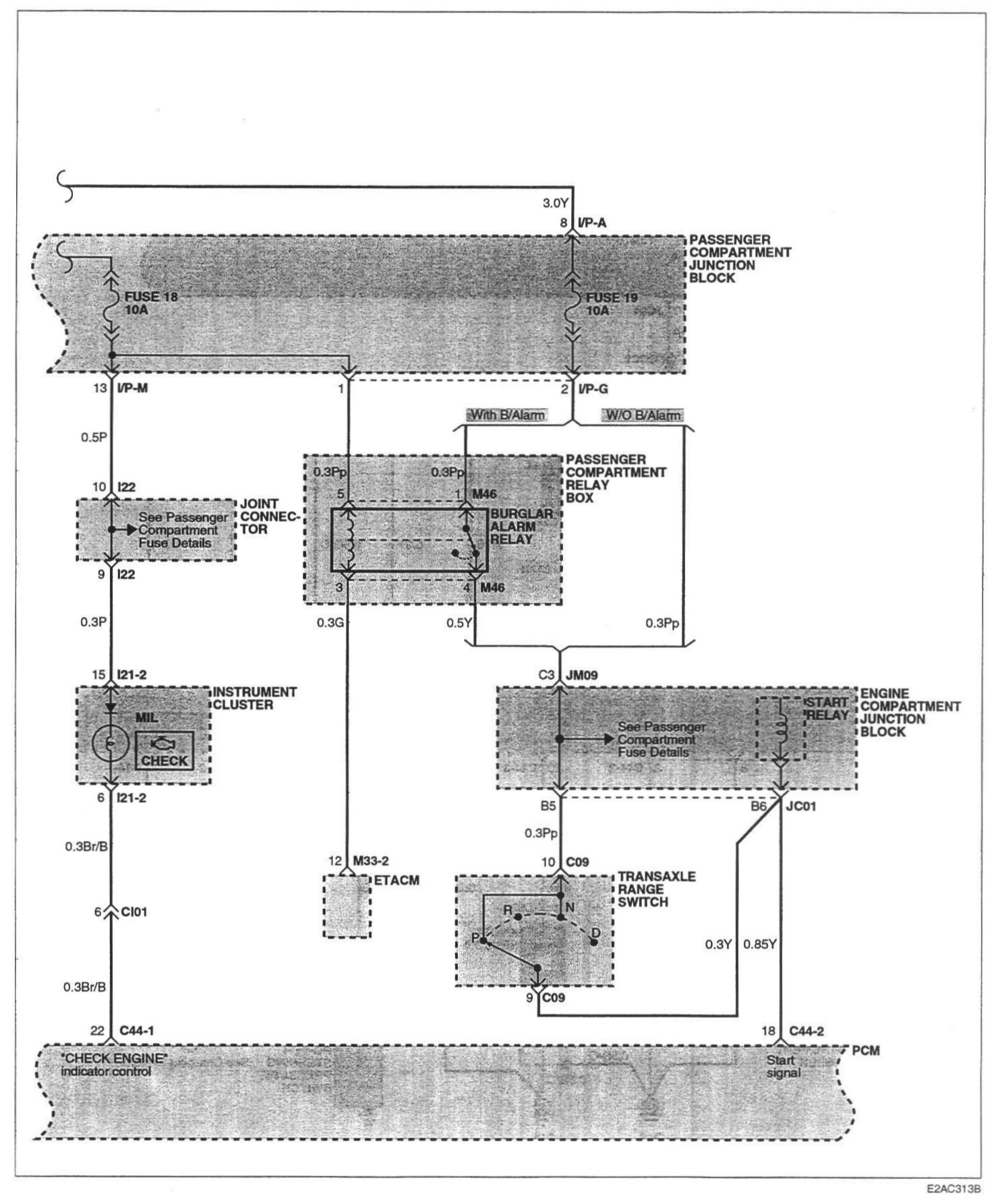

Image SD-85 MFI Control System (DOHC With A/T) (2):

Image SD-86 MFI Control System (DOHC With A/T) (3):

Image SD-87 MFI Control System (DOHC With A/T) (4):

Image SD-88 MFI Control System (DOHC With A/T) (5):

Image SD-89 MFI Control System (DOHC With A/T) (6):

Image SD-90 MFI Control System (DOHC With A/T) (7):

Image SD-91 MFI Control System (DOHC With A/T) (8):
