Clutch, M/T

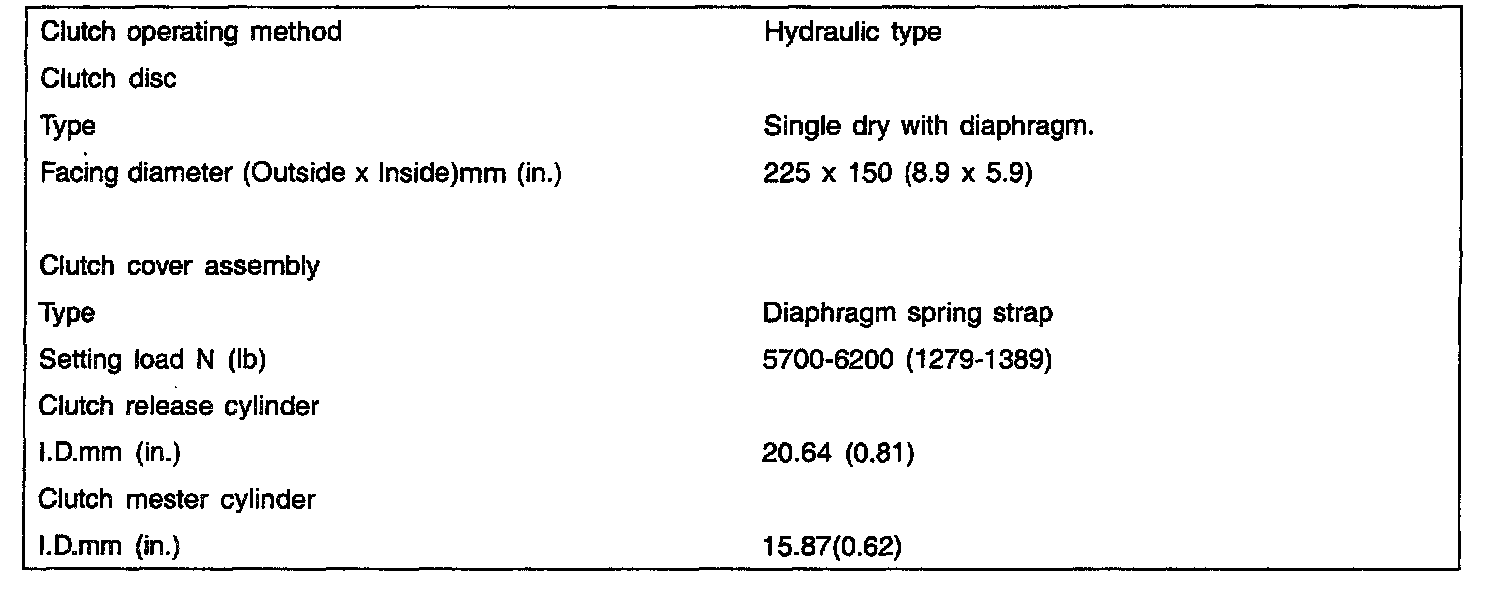

SPECIFICATIONS





Clutch Operating Method Hydraulic Type
Clutch Disc
Type Single Dry With Diaphragm.
Facing Diameter (Outside X Inside) 225 X 150 mm (8.9 X 5.9 inch)
Clutch Cover Assembly
Type Diaphragm Spring Strap
Setting Load 5700 - 6200 N (1279 - 1389 lbs.)
Clutch Release Cylinder
I.D. 20 - 64 mm (0.81 inch)
Clutch Master Cylinder
I.D. 15 - 87 mm (0.62 inch)

SERVICE STANDARD





Standard Value
Clutch Disc Thickness [When free] 8.3 - 8.9 mm (0.326 - 0.350 inch)
Clutch Pedal Height 180.5 ± 0.3 mm
Clutch Pedal Free Play 6 - 13 mm (0.24 - 0.51 inch)
Limit
Clutch Disc Rivet Sink 0.3 mm (0.012 inch)
Diaphragm Spring End Height Difference 0.5 mm (0.02 inch)
Clutch Release Cylinder Clearance To Piston 0.15 mm (0.006 inch)
Clutch Master Cylinder Clearance To Piston 0.15 mm( 0.006 inch)

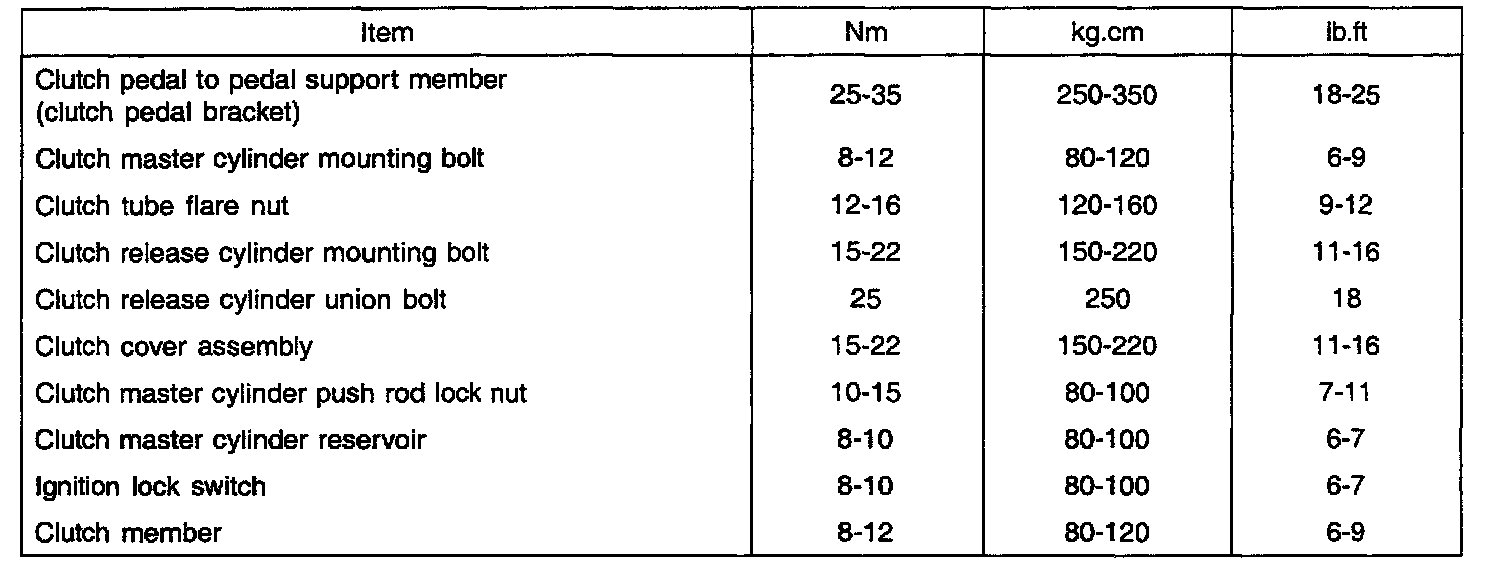

TIGHTENING TORQUE





Clutch Pedal To Pedal Support Member (Clutch Pedal Bracket)
25 - 35 Nm (18 - 25 ft. lbs.)
Clutch Master Cylinder Mounting Bolt 8 - 12 (6 - 9 ft. lbs.)
Clutch Tube Flare Nut 12 - 16 Nm (9 - 12 ft. lbs.)
Clutch Release Cylinder Mounting Bolt 15 - 22 Nm (11 - 16 ft. lbs.)
Clutch Release Cylinder Union Bolt 25 Nm (18 ft. lbs.)
Clutch Cover Assembly 15 - 22 Nm (11 - 16 ft. lbs.)
Clutch Master Cylinder Push Rod Lock Nut 10 - 15 Nm (7 - 11 ft. lbs.)
Clutch Master Cylinder Reservoir 8 - 10 Nm (6 - 7 ft. lbs.)
Ignition Lock Switch 8 - 10 Nm (6 - 7 ft. lbs.)
Clutch Member 8 - 12 Nm (6 - 9 ft. lbs.)





LUBRICANTS
