Mechanical Specifications

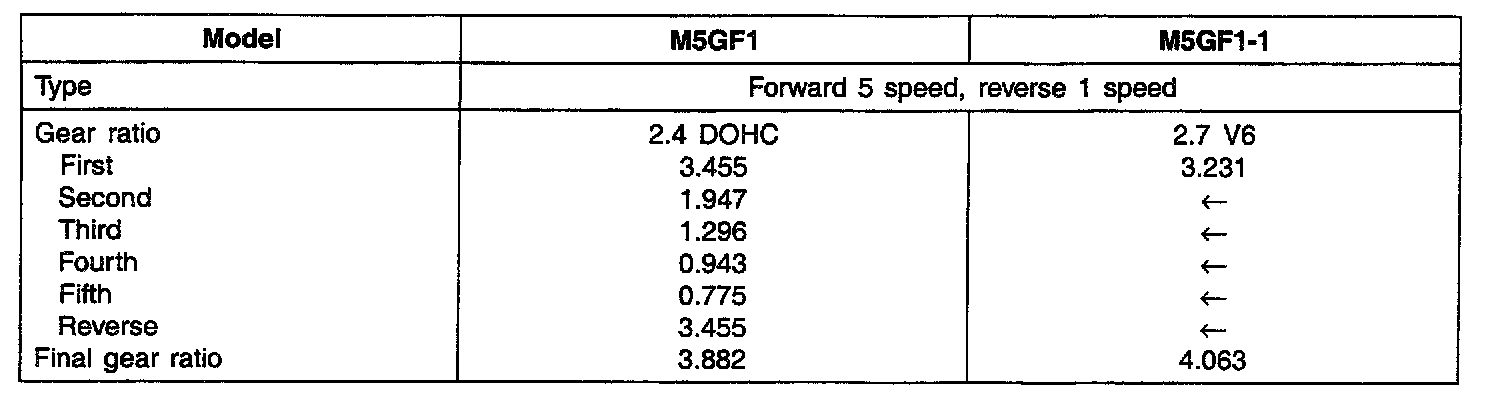

SPECIFICATIONS(M/T)





Gear ratio
First
M5GF1 (2.4 DOHC) 3.455
M5GF1-1 (2.7 V6) 3.231
Second
M5GF1 (2.4 DOHC) 1.947
M5GF1-1 (2.7 V6) 1.947
Third
M5GF1 (2.4 DOHC) 1.296
M5GF1-1 (2.7 V6) 1.296
Fourth
M5GF1 (2.4 DOHC) 0.943
M5GF1-1 (2.7 V6) 0.943
Fifth
M5GF1 (2.4 DOHC) 0.775
M5GF1-1 (2.7 V6) 0.775
Reverse
M5GF1 (2.4 DOHC) 3.455
M5GF1-1 (2.7 V6) 3.455
Final gear ratio
M5GF1 (2.4 DOHC) 3.882
M5GF1-1 (2.7 V6) 4.063

SERVICE STANDARD(M/T)





Differential Side Bearing End Play 0.05T - 0.10T (0.0019T - 0.0039T)
Gear Backlash In Differential 0.025L - 0.150L (0.00095L - 0.0057L)
Input Front Bearing Snap Ring End Play 0.01. - 0.12L (0-00038L - 0.0045L)
Input Rear Bearing Snap Ring End Play 0.01L - 0.12L (0.000381 - 0.0045L)
Output Front Bearing Snap Ring End Play 0.01 - 0.12L (0.00038L - 0.0045L)
Output Rear Bearing Snap Ring End Play 0.01 - 0.09L (0.00038L - 0.00342L)
5Th Input Gear Snap Ring End Play 0.01 - 0.05L (0.00038L - 0.0019L)
3rd Output Gear Snap Ring End Play 0.01L - 0.05L (0.00038L - 0.001 9L)

TIGHTENING TORQUE(M/T)





Release Bearing Sleeve Bolt 5 - 8 Nm (4 - 6 ft. lbs.)
Release Fork Shaft Level Nut 27 - 40 Nm (20 - 29 ft. lbs.)
Select Lever 20 - 27 Nm (15 - 20 ft. lbs.)
Oil Drain Plug 30 - 35 Nm (22 - 26 ft. lbs.)
Poppet Ball 35 - 42 Nm (26 - 31 ft. lbs.)
Clutch Housing To Transmission Case 35 - 42 Nm (26 - 31 ft. lbs.)
Speedometer Driven Gear 4 - 6 Nm (3 - 4 ft. lbs.)
Reverse Idler Bolt 43 - 55 Nm (32 - 40 ft. lbs.)
Side Cover Bolt 10 - 12 Nm (7 - 8 ft. lbs.)
Shift Control Cable Bracket 20 - 27 Nm (15 - 20 ft. lbs.)
Cylinder And Hose Assembly 15 - 22 Nm (11 - 16 ft. lbs.)
Shift Lever Bracket 9 - 14 Nm (7 - 10 ft. lbs.)
Front Roll Stopper Bracket To Subframe Bolts 60 - 80 Nm (43 - 58 ft. lbs)
Front Roll Stopper Insulator Bolt And Nut 50 - 65 Nm (36 - 47 ft. lbs.)
Front Roll Stopper Bracket To Transaxle Bolts 60 - 80 Nm (43 - 58 ft. lbs.)
Rear Roll Stopper Bracket To Subframe Bolts 50 - 65 Nm (36 - 47 ft. lbs.)
Rear Roll Stopper Insulator Bolt And Nut 50 - 65 Nm (36 - 47 ft. lbs.)
Rear Roll Stopper Bracket To Transaxle Bolts 60 - 80 Nm (43 - 58 ft. lbs.)
Transaxle Mounting Sub Bracket Nut 60 - 80 Nm (43 - 58 ft. lbs.)
Transaxle Mounting Bracket Bolts 60 - 80 Nm (43 - 58 ft. lbs.)
Transaxle Mounting Insulator Bolt 90 - 110 Nm (65 - 80 ft. lbs.)
Front Bearing Retainer & Detent Body Cover Bolt 15 - 22 Nm (10 - 16 ft. lbs.)

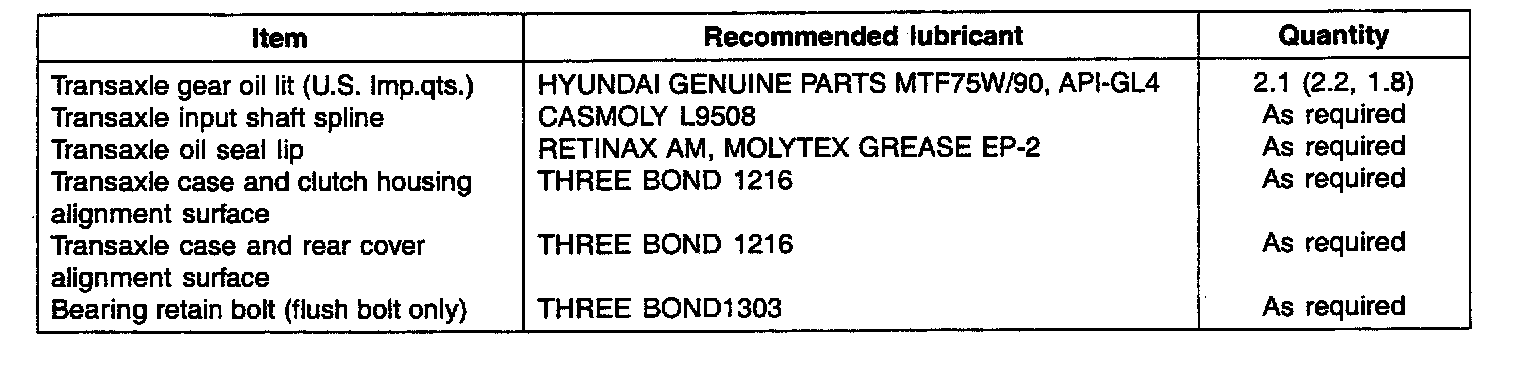

LUBRICATIONS(M/T)
