Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>
Indicators
Indicators

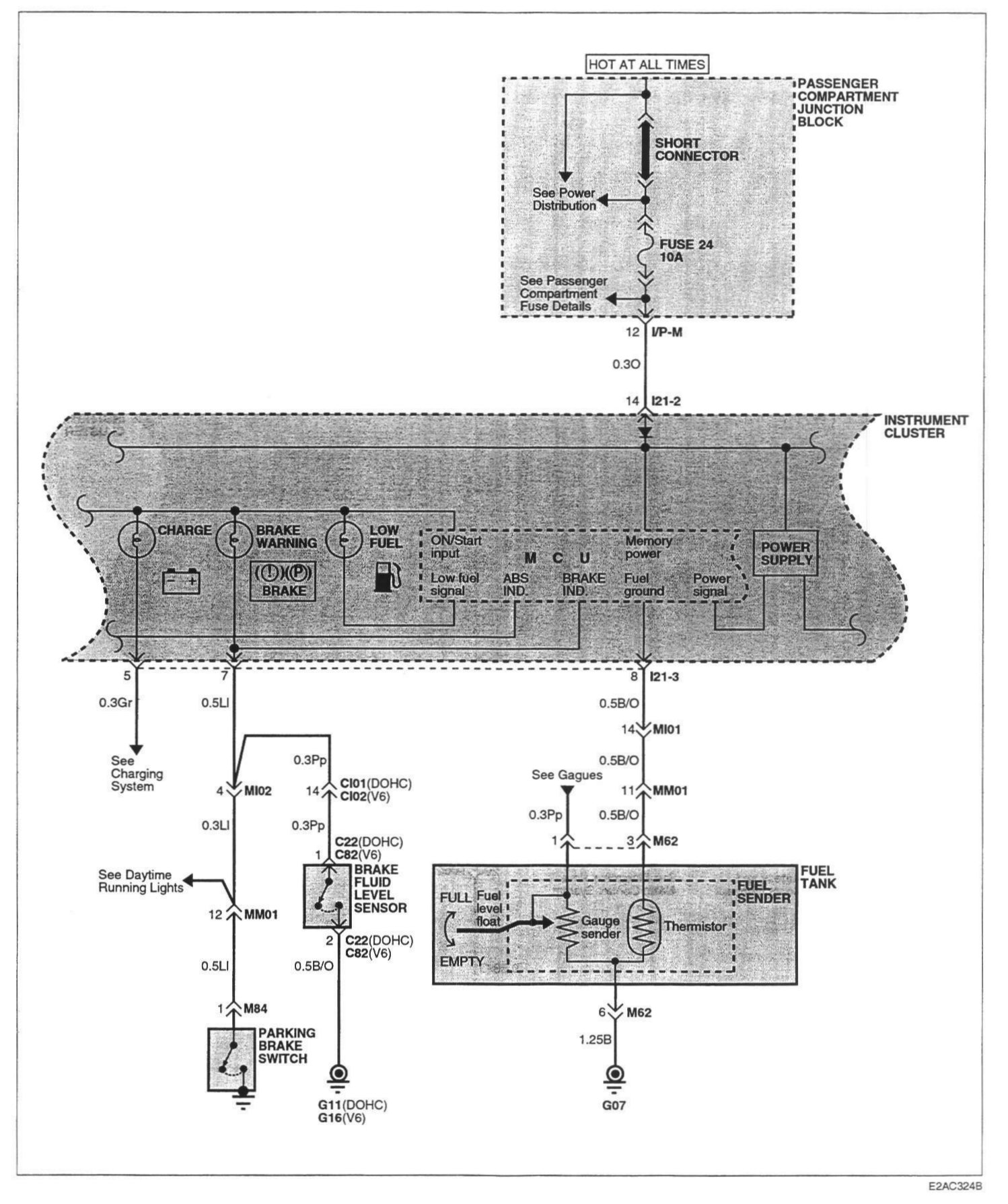

Image SD-132 Indicators (1):

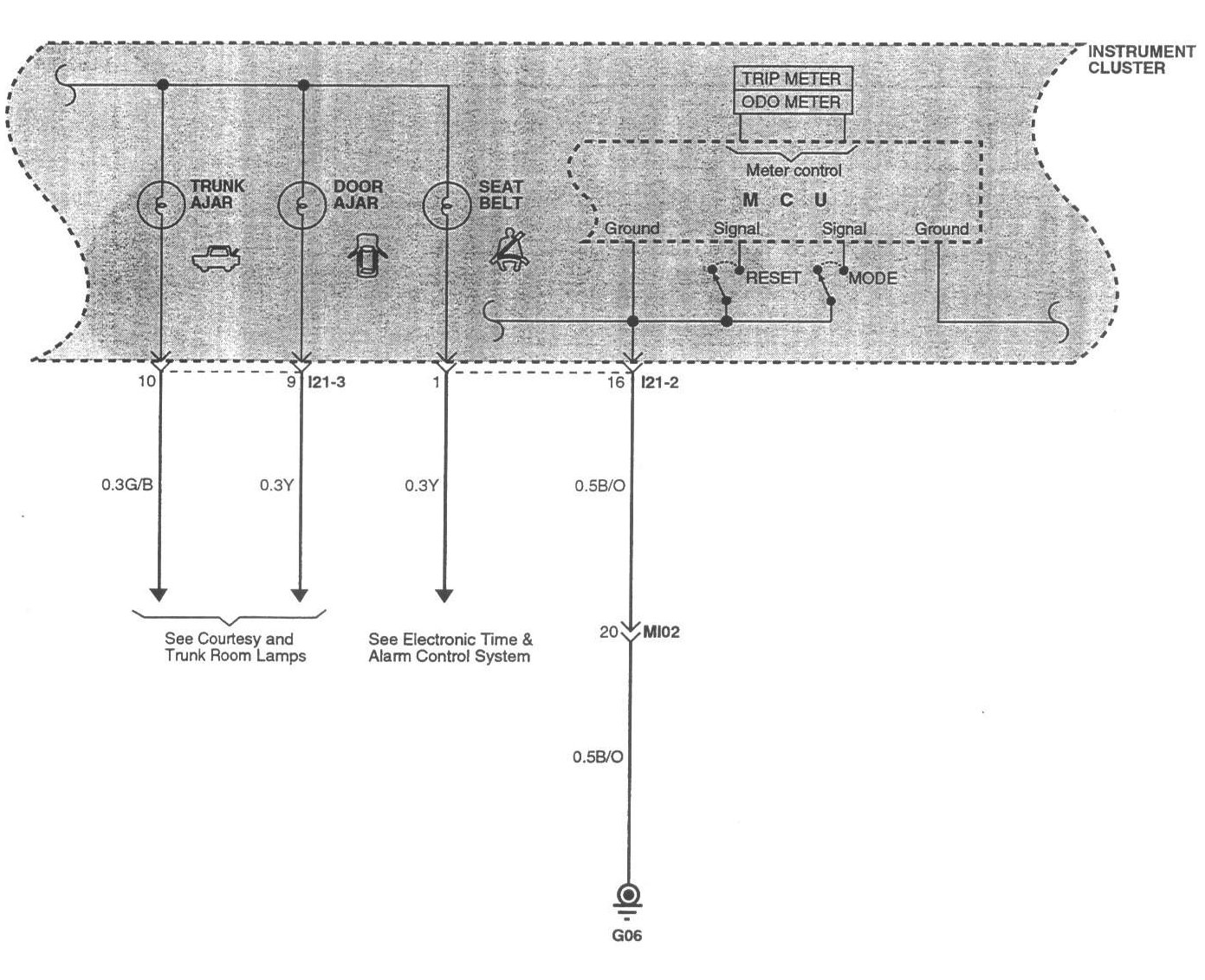

Image SD-133 Indicators (2):

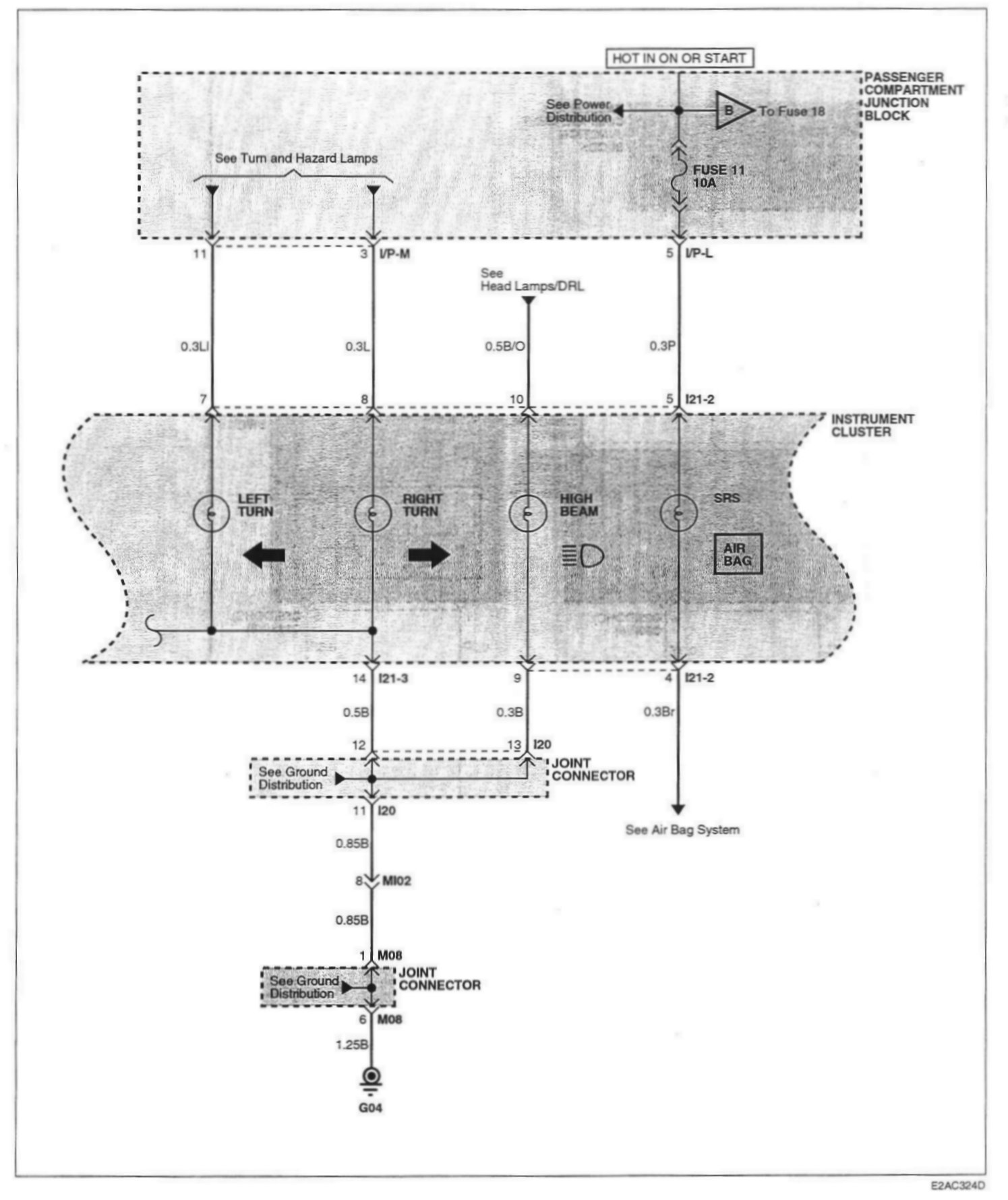

Image SD-134 Indicators (3):

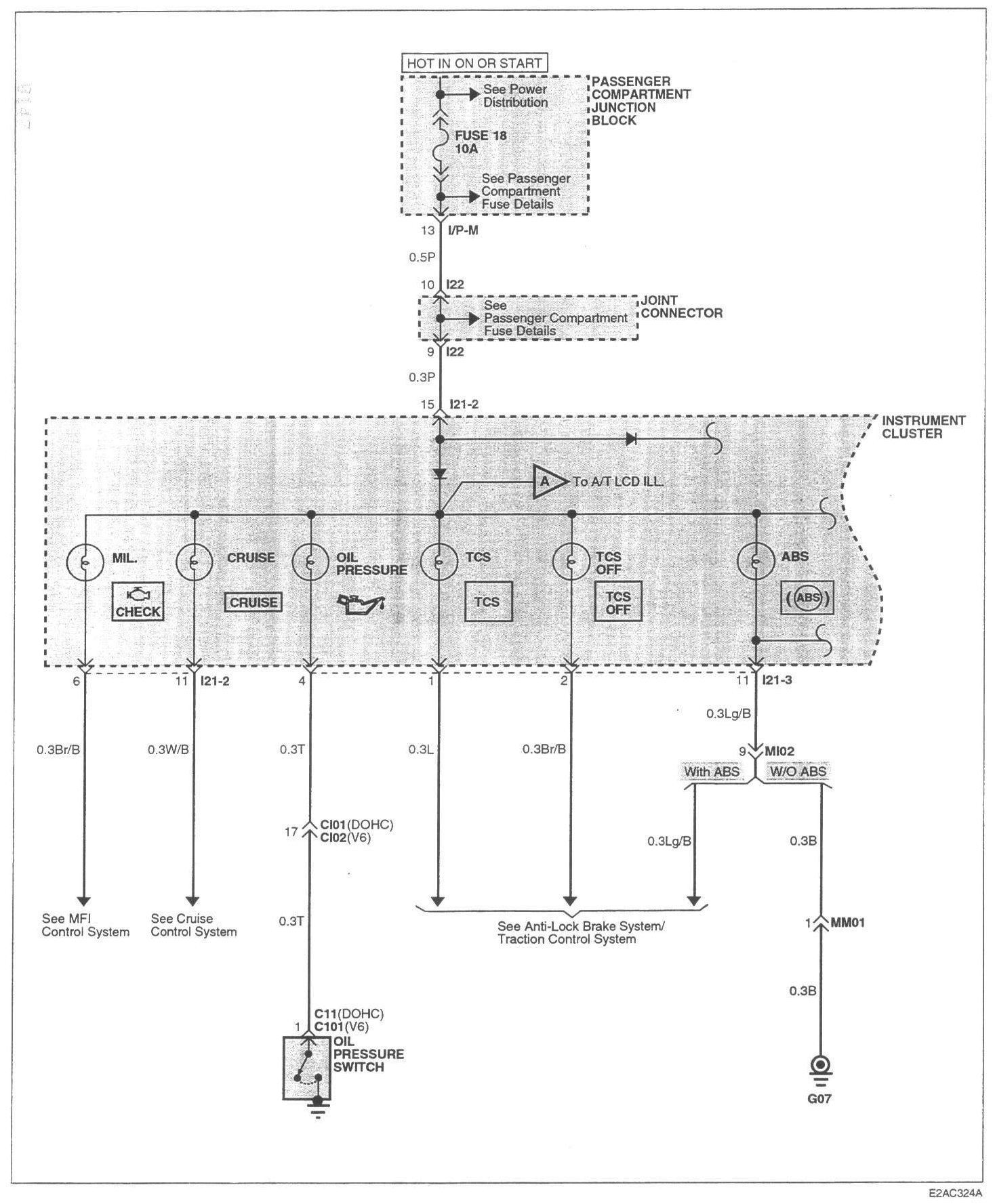

Image SD-135 Indicators (4):

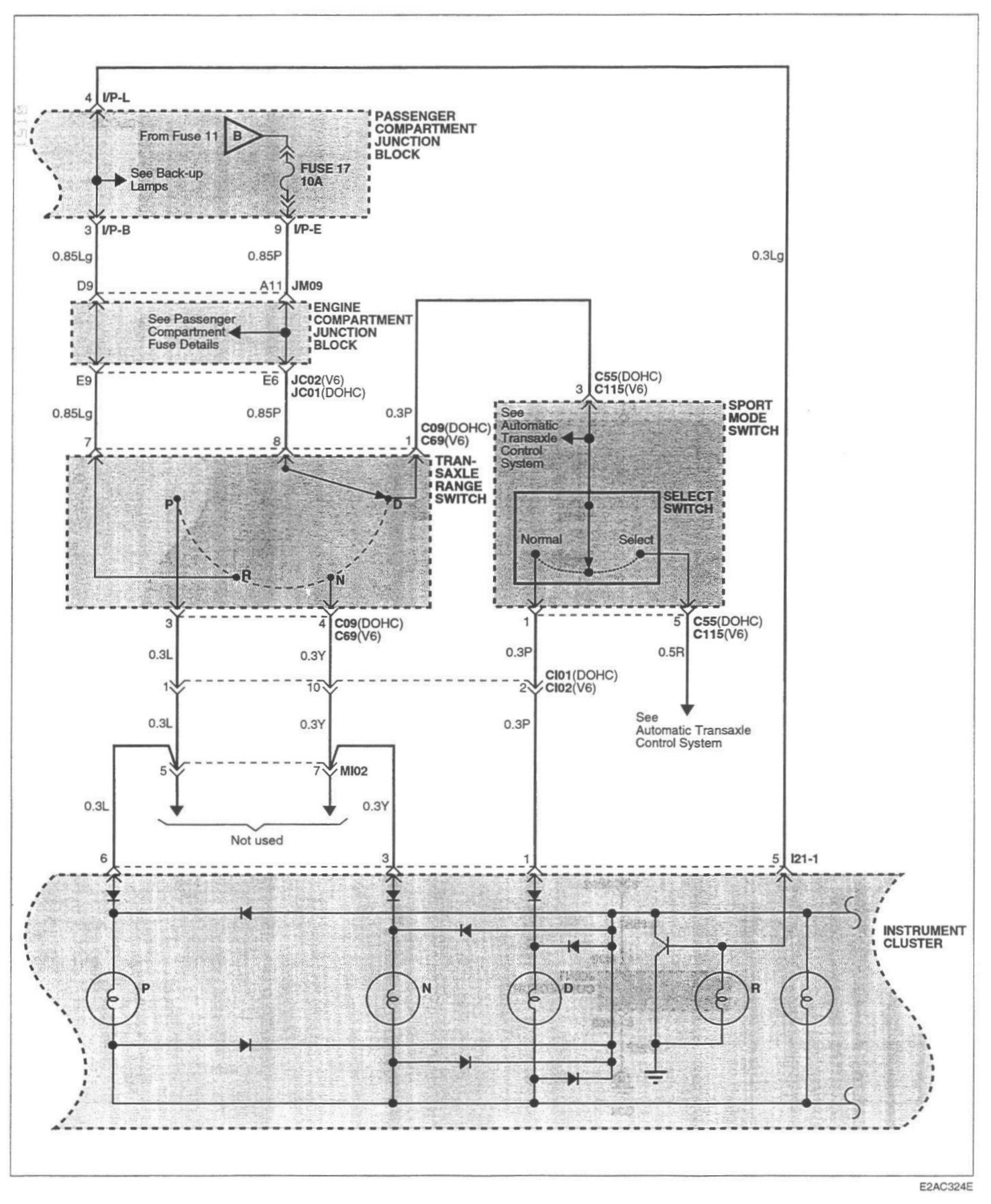

Image SD-136 Indicators (5):
Image SD-137 Indicators (6):
