Home >> Hyundai >> 2002 >> Sonata LX V6-2.7L >> Repair and Diagnosis >> Lighting and Horns >> Tail Lamp >> Diagrams >> Electrical Diagrams

Electrical Diagrams

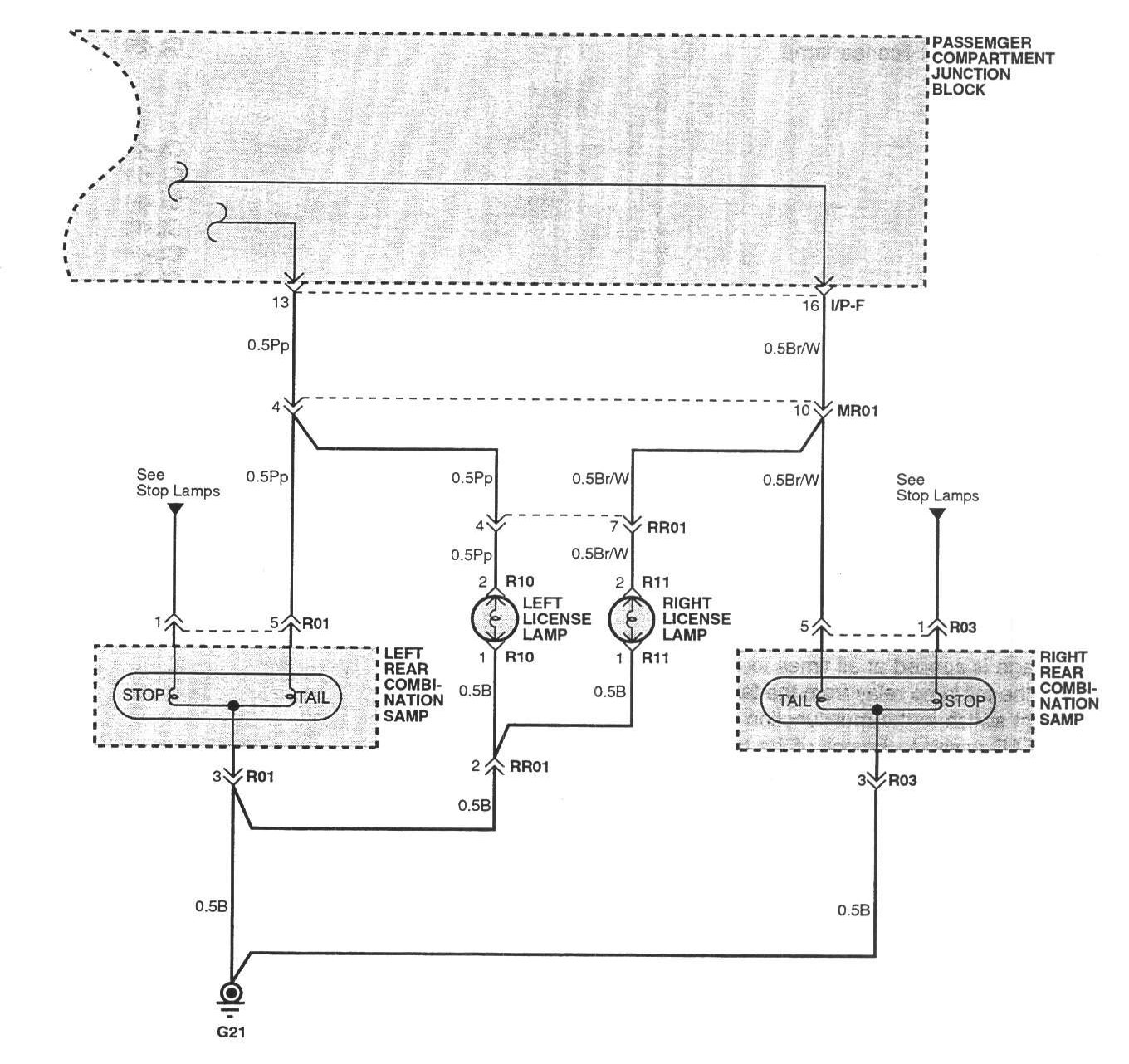

Image SD-184 Tail, Parking And License Lamps (1):



Image SD-185 Tail, Parking And License Lamps (2):
