Electrical - Vanity Lamp Power Source Change
Group: BODY ELECTRICALNumber: 02-90-015
Date: DECEMBER, 2002
Model: XG350
Subject
CHANGE OF VANITY LAMP POWER SOURCE
2002 XG350
DESCRIPTION:
The power source for the vanity lamp was changed to operate the vanity lamp independent of the tail lamp operation.

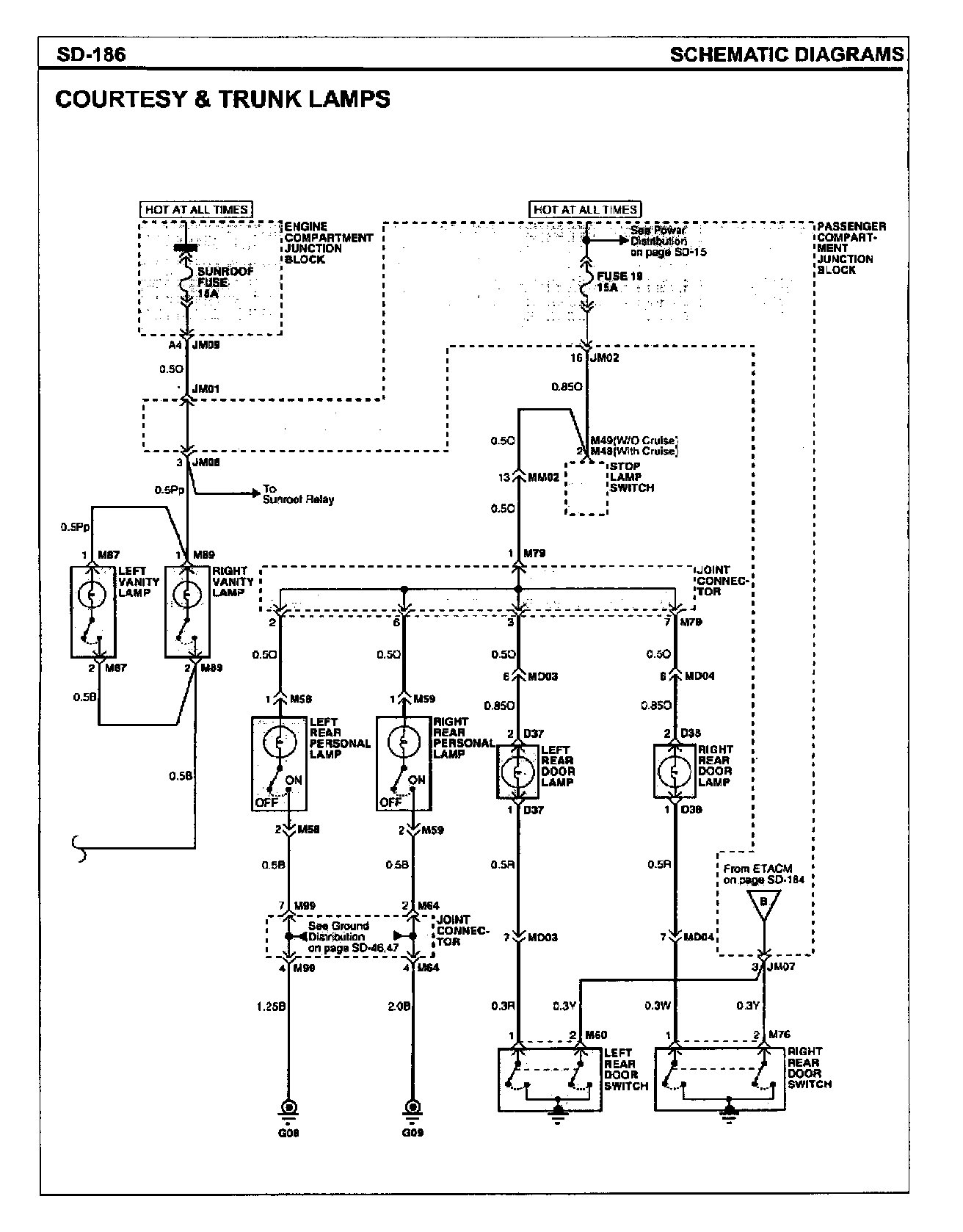

Before this change, the tail lamps needed to be on in order for the vanity lights to work. This bulletin provides the new schematic diagram for the vanity lamps.
Please record this TSB number at the bottom of the appropriate ETM page for future reference.

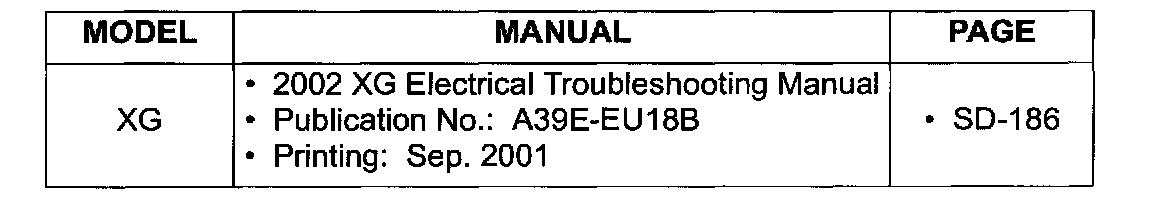

AFFECTED ETM AND PAGE:
AFFECTED VEHICLE INFORMATION:
^ Model: XG
^ Production change date: September 16, 2002
