Antenna: Service and Repair

REMOVAL AND INSTALLATION
1. Disconnect the negative battery terminal.

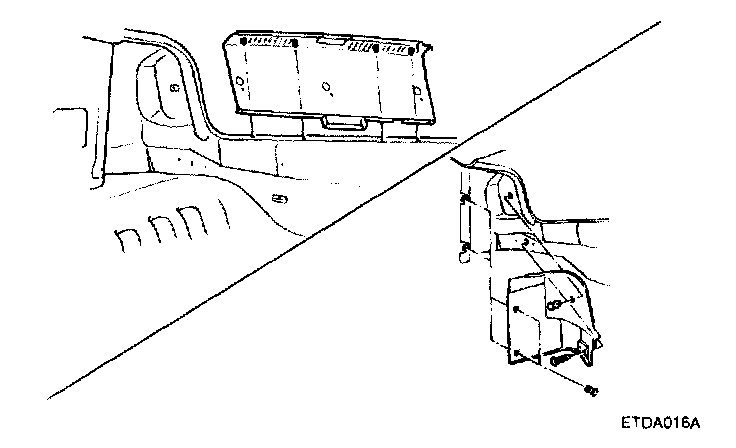

2. Remove the rear transverse trim and left side luggage rear trim.

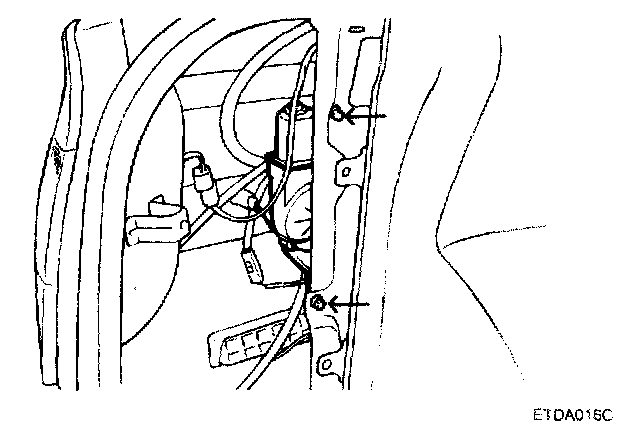

3. Remove the antenna mounting nut and bolt. Disconnect the wiring connector and the antenna feeder cable.
4. Installation is the reverse of removal.
