Performance Test Diagnosis

Part 1:




Part 2:




Part 3:




Part 4:

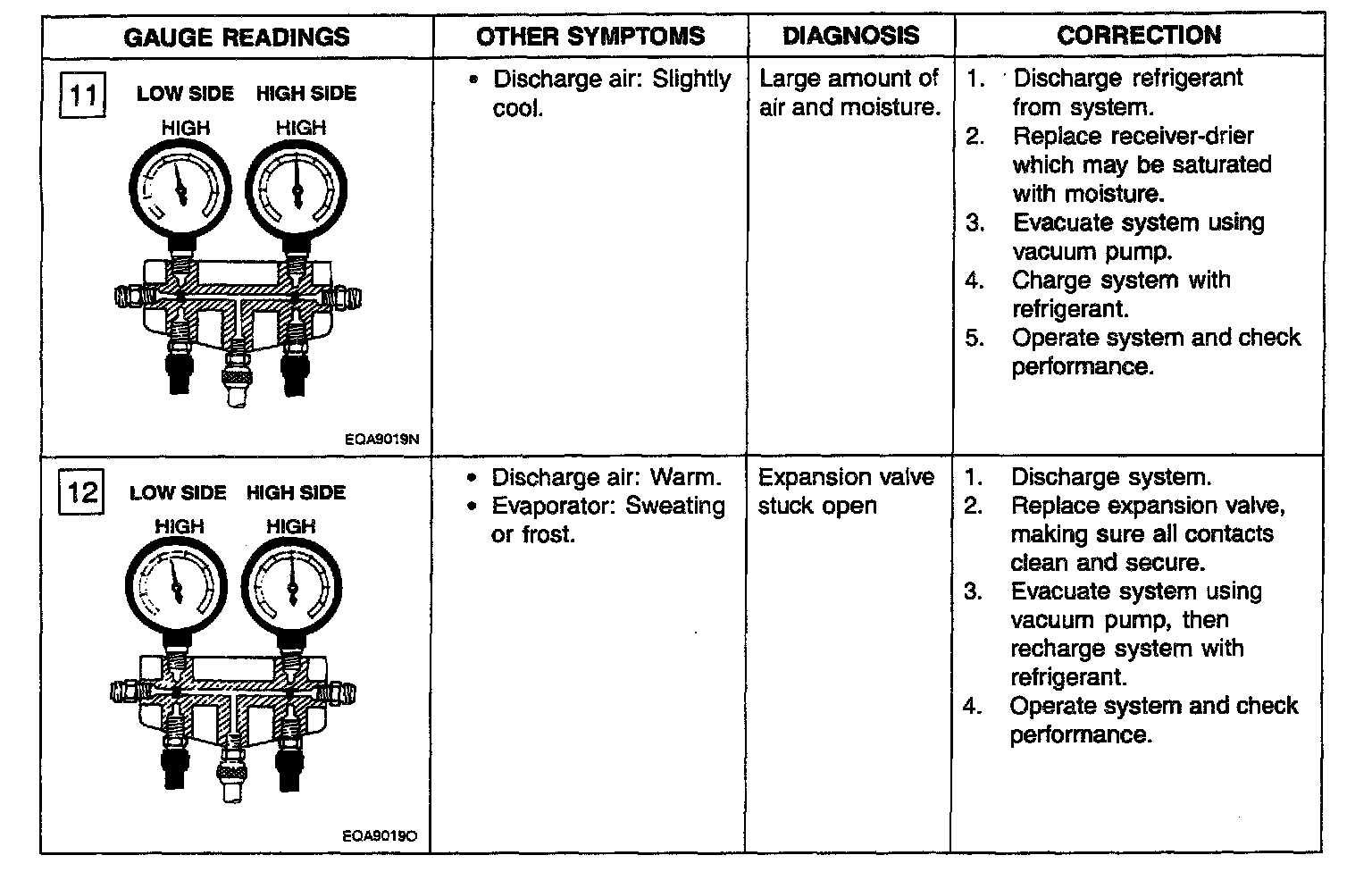

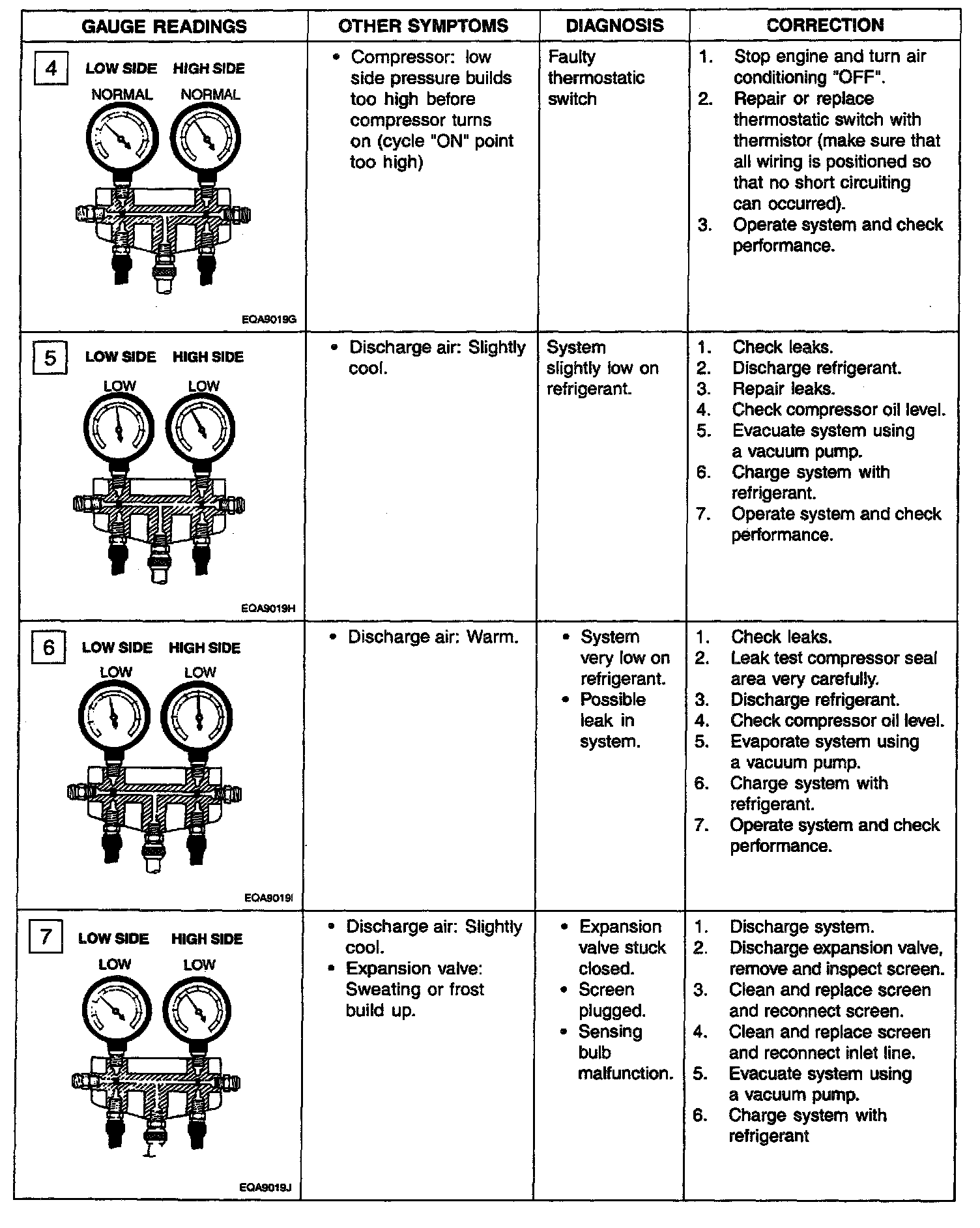

The test gauge indicators shown in the above chapter are to be used as typical examples of common problem, which you may need to diagnose.
