Indicators
Indicators (1):

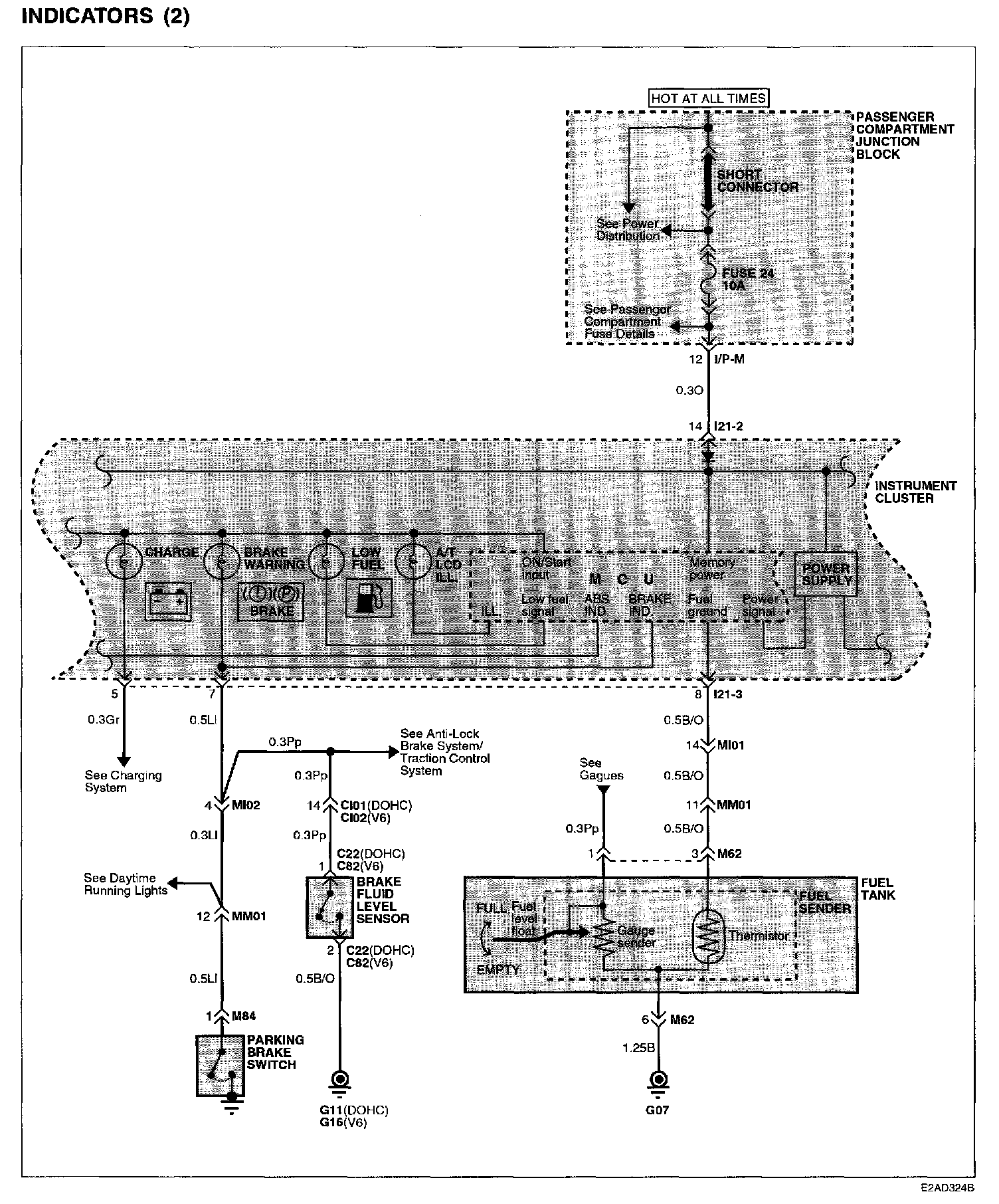

Indicators (2):
Indicators (3):

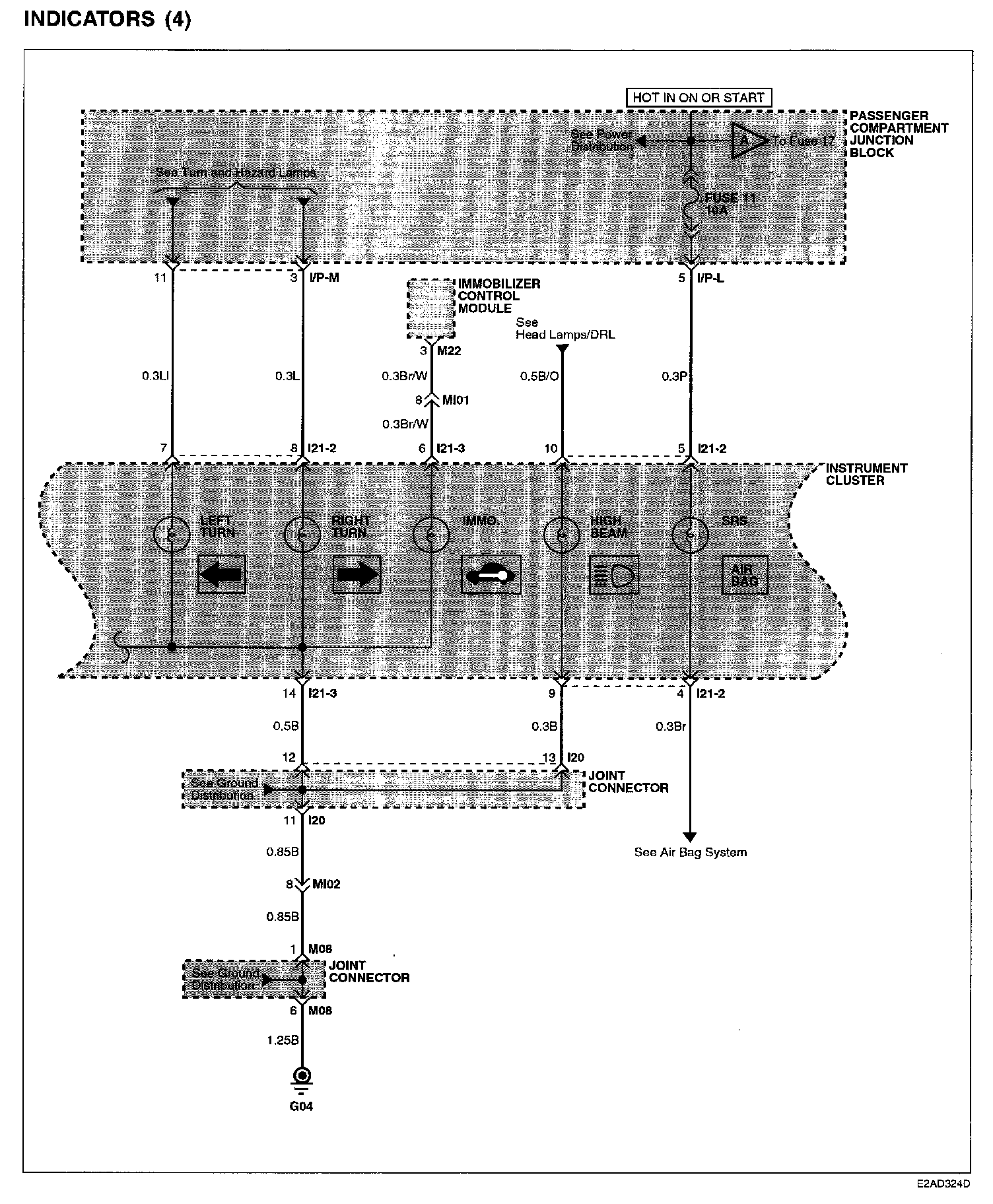

Indicators (4):
Indicators (5):

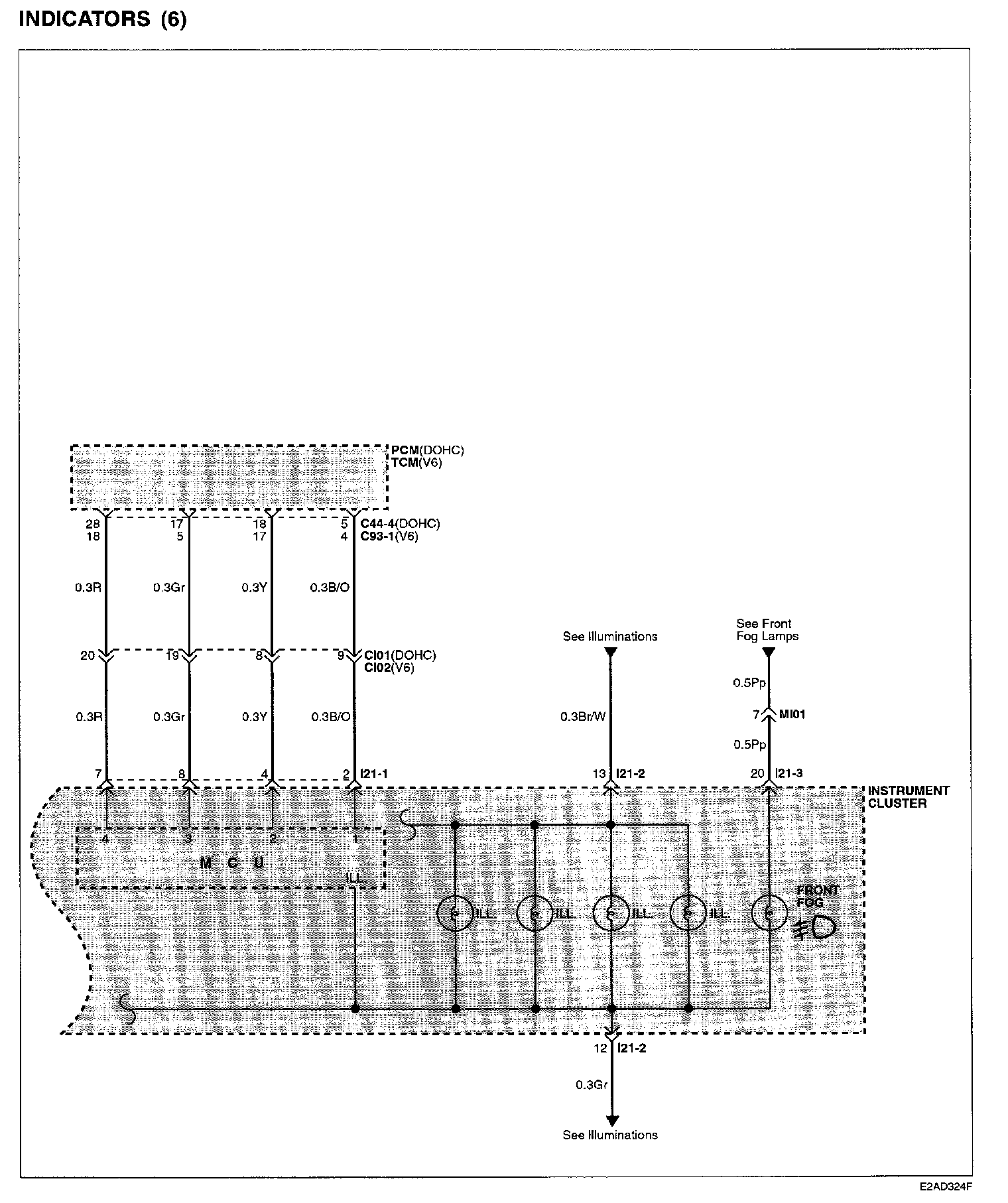

Indicators (6):
Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations
Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
