Radio, Stereo, and Compact Disc: Service and Repair

1. Disconnect the negative(-) battery terminal.

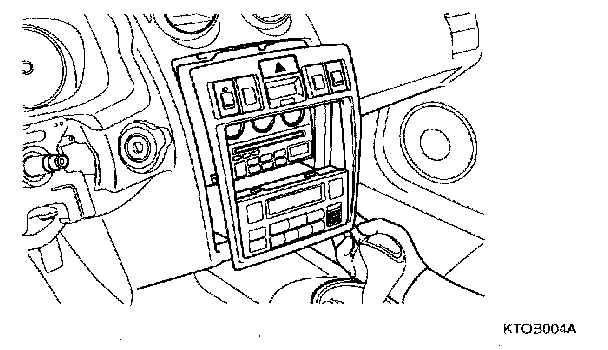

2. Remove the center facia panel and disconnect the wire connectors.

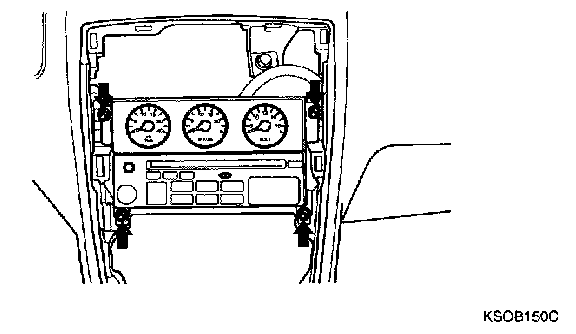

3. Remove the 4 screws holding the audio and multigauge unit then remove the audio assembly.
4. Installation is the reverse of removal.

AUTO CD CHANGER




1. Remove the right side quarter trim.
2. Remove the auto CD changer from the right side quarter panel.
