Automatic Transmission/Transaxle

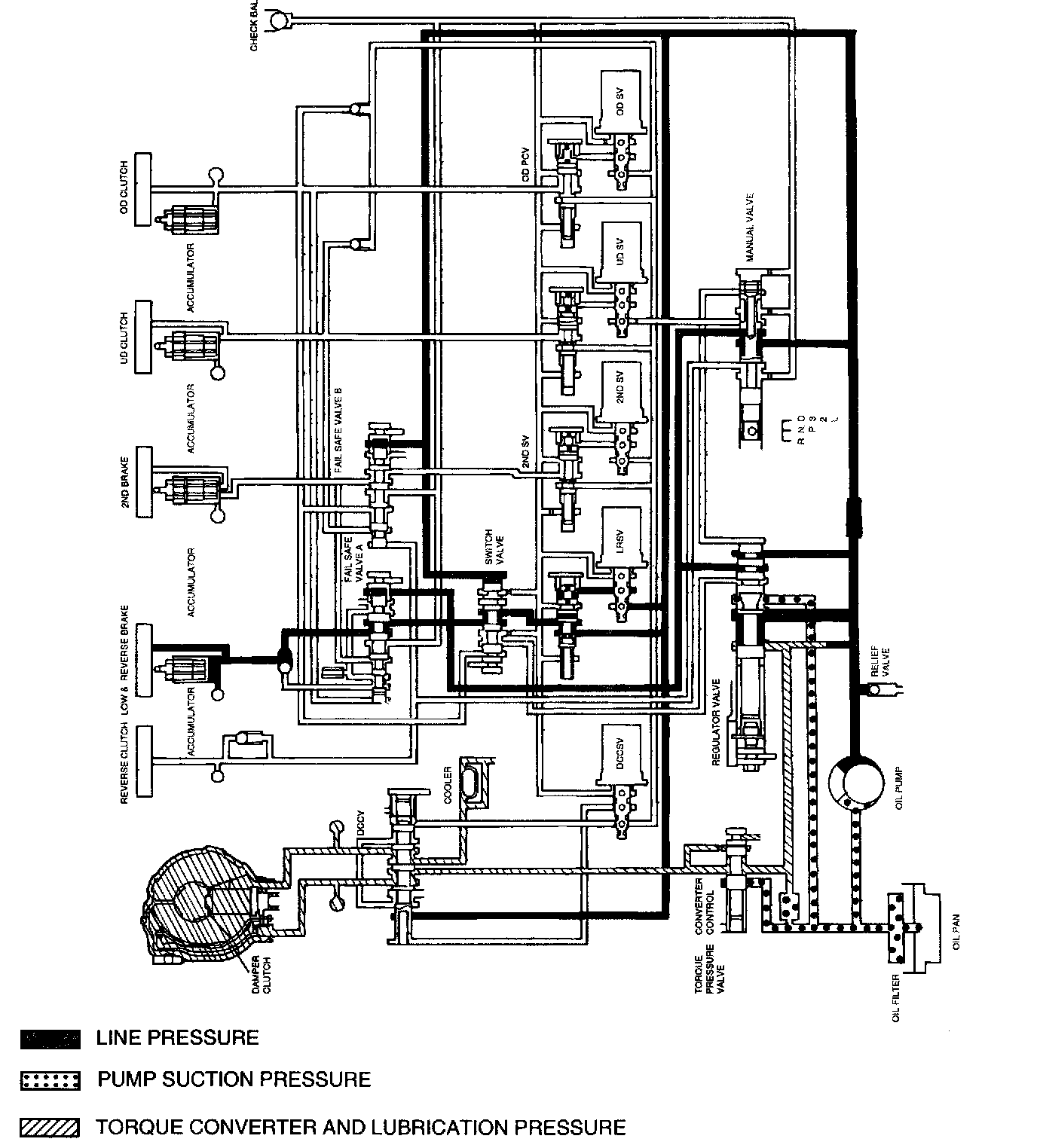

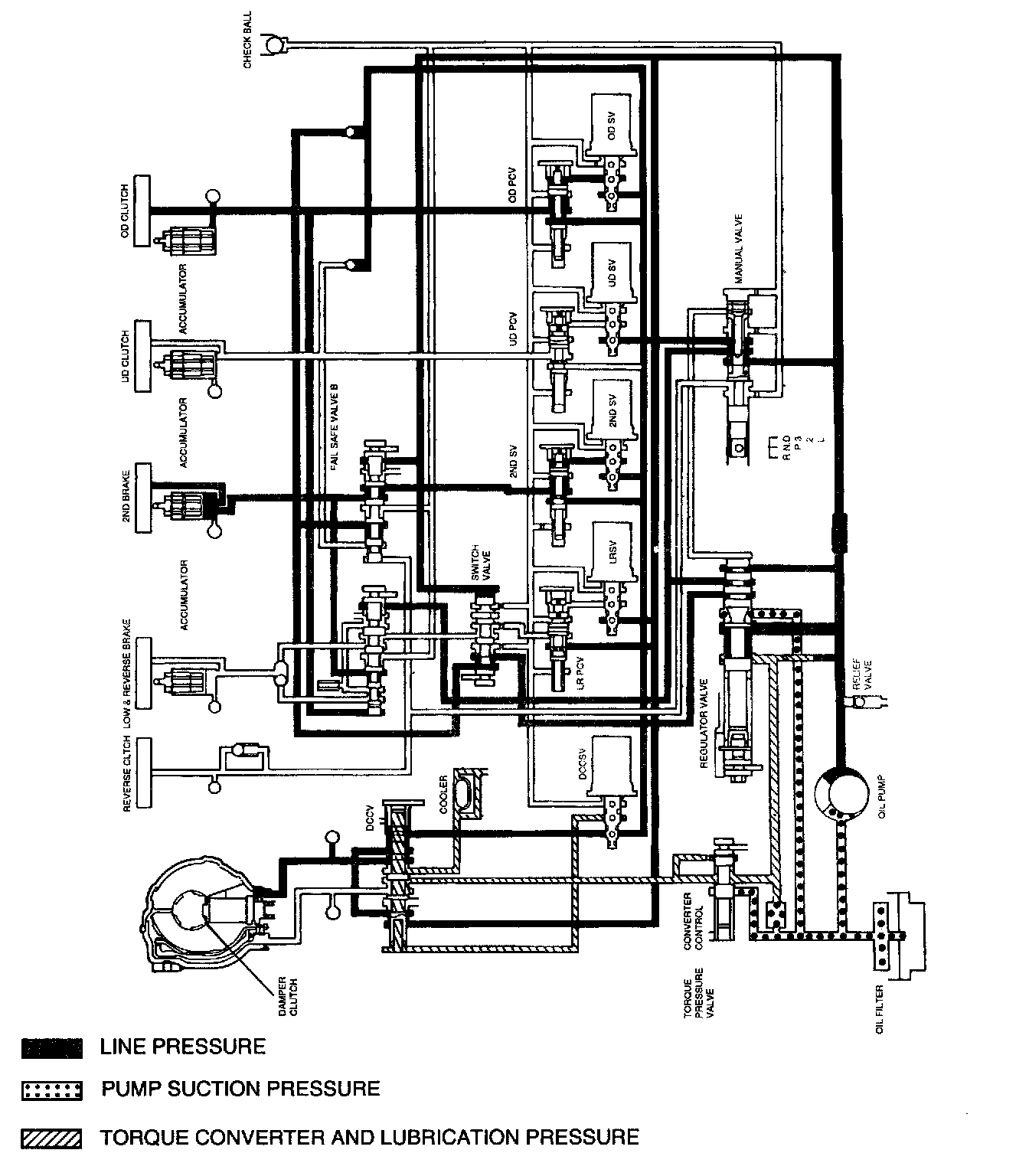

AUTOMATIC TRANSAXLE HYDRAULIC CIRCUIT





PARK & NEUTRAL





FIRST





SECOND





THIRD





FOURTH





REVERSE
