Drive Axles, Bearings and Joints: Specifications

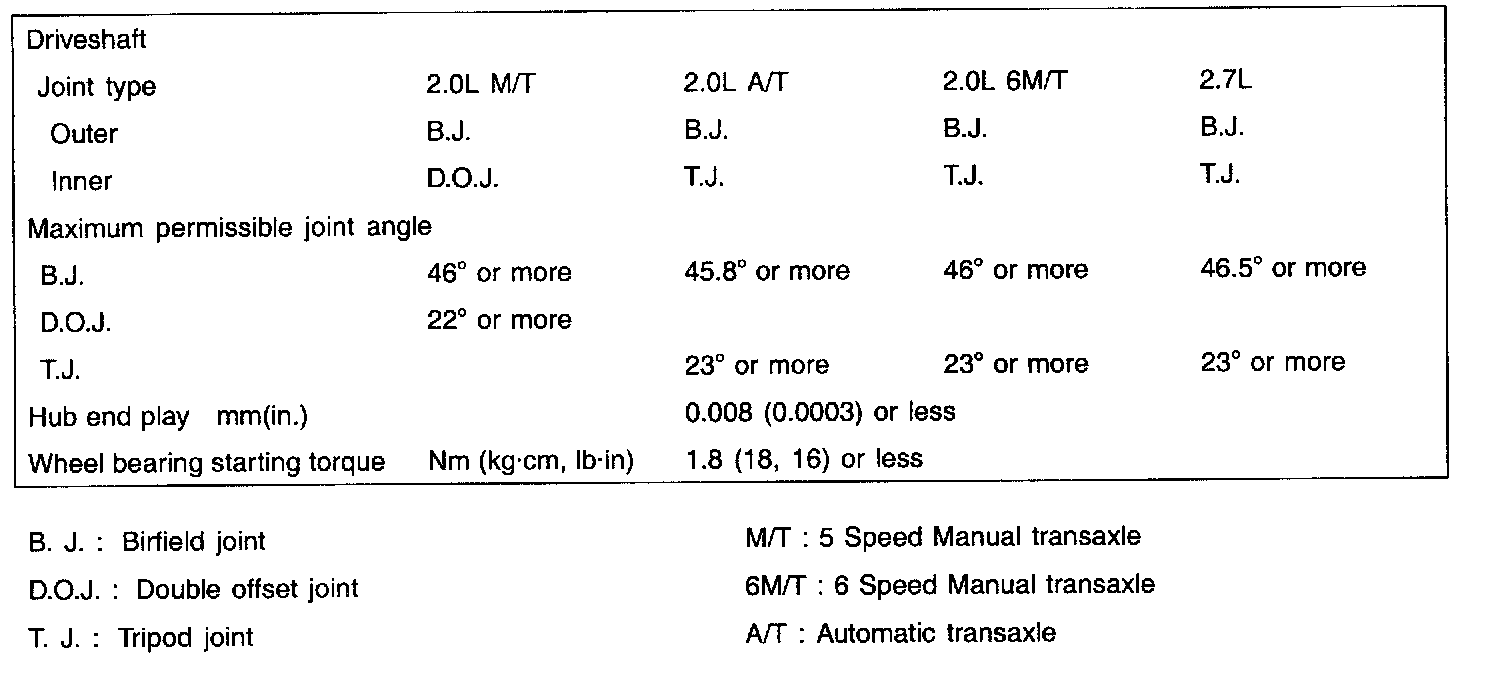

SPECIFICATIONS





TIGHTENING TORQUE

CAUTION: Replace self-locking nuts with new ones after removal.
