Mirrors: Service and Repair

Outside Rear View Mirror:

COMPONENTS

REMOVAL AND INSTALLATION

CAUTION: Wear gloves to remove and install the mirror holder.

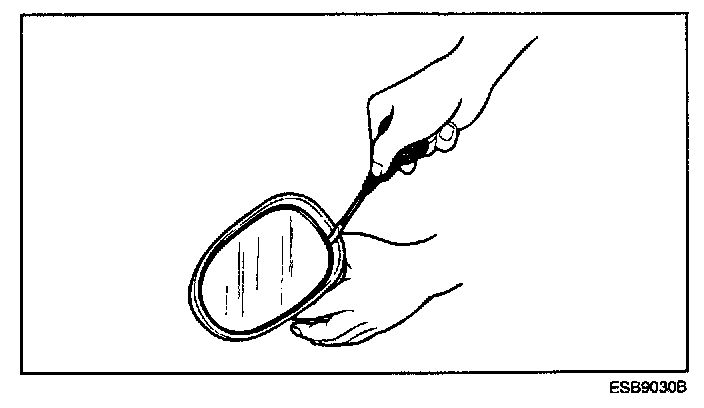

1. Insert a flat-bladed screwdriver between the outside rearview mirror holder and mirror assembly.

CAUTION: When prying with a flat-bladed screwdriver, wrap it with a shop towel to prevent damage.

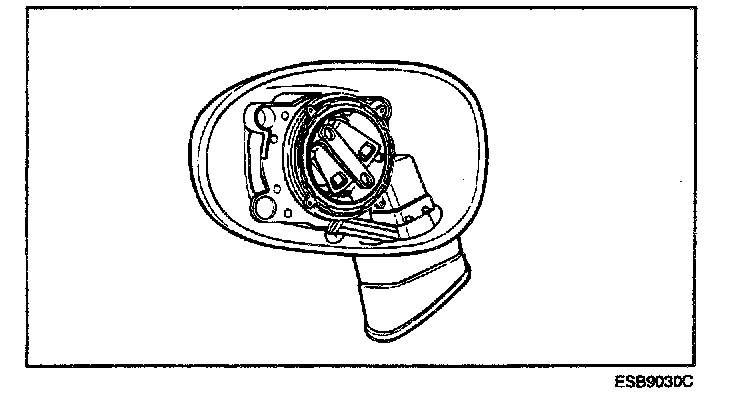

2. Remove the outside rearview mirror actuator from outside rearview mirror housing.
3. Installation is the reverse of removal.
