Memory Positioning Systems: Specifications

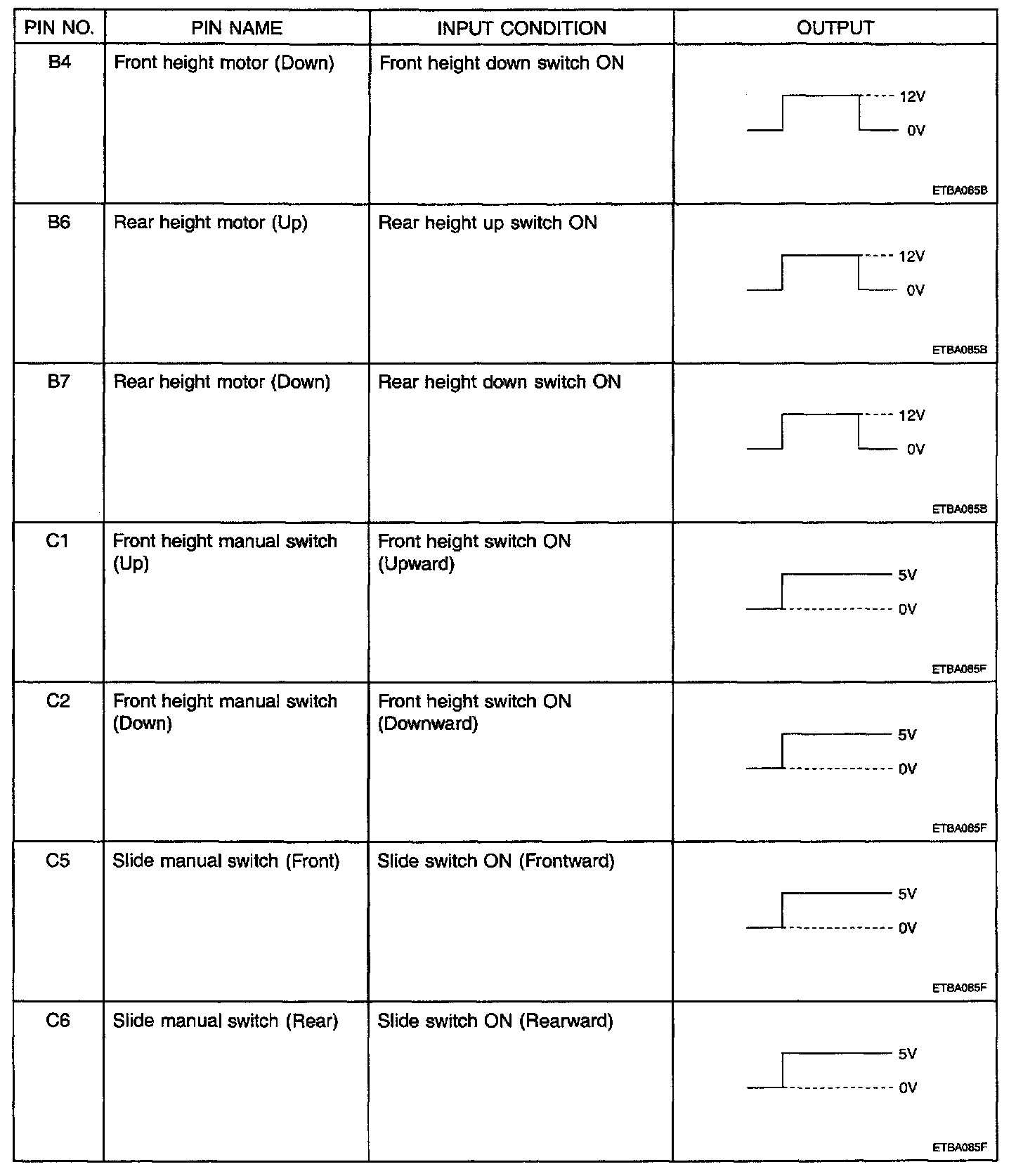

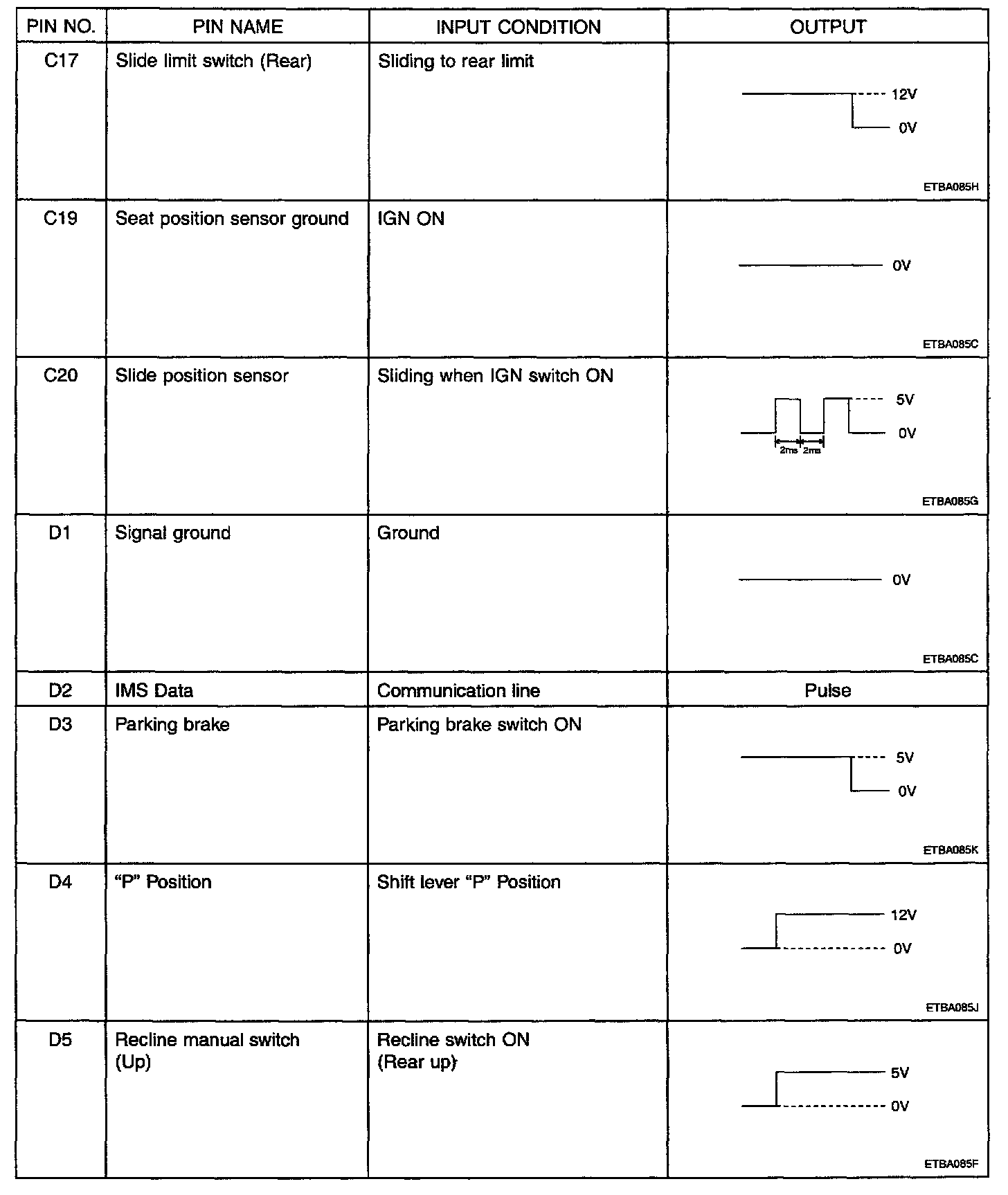

Output Pulse Part 1:



Output Pulse Part 2:



Output Pulse Part 3:



Output Pulse Part 4:



Output Pulse Part 5:



Output Pulse Part 6:
