M Connectors (Main Harness)

M01-1 - M26:



M33-1 - M57:

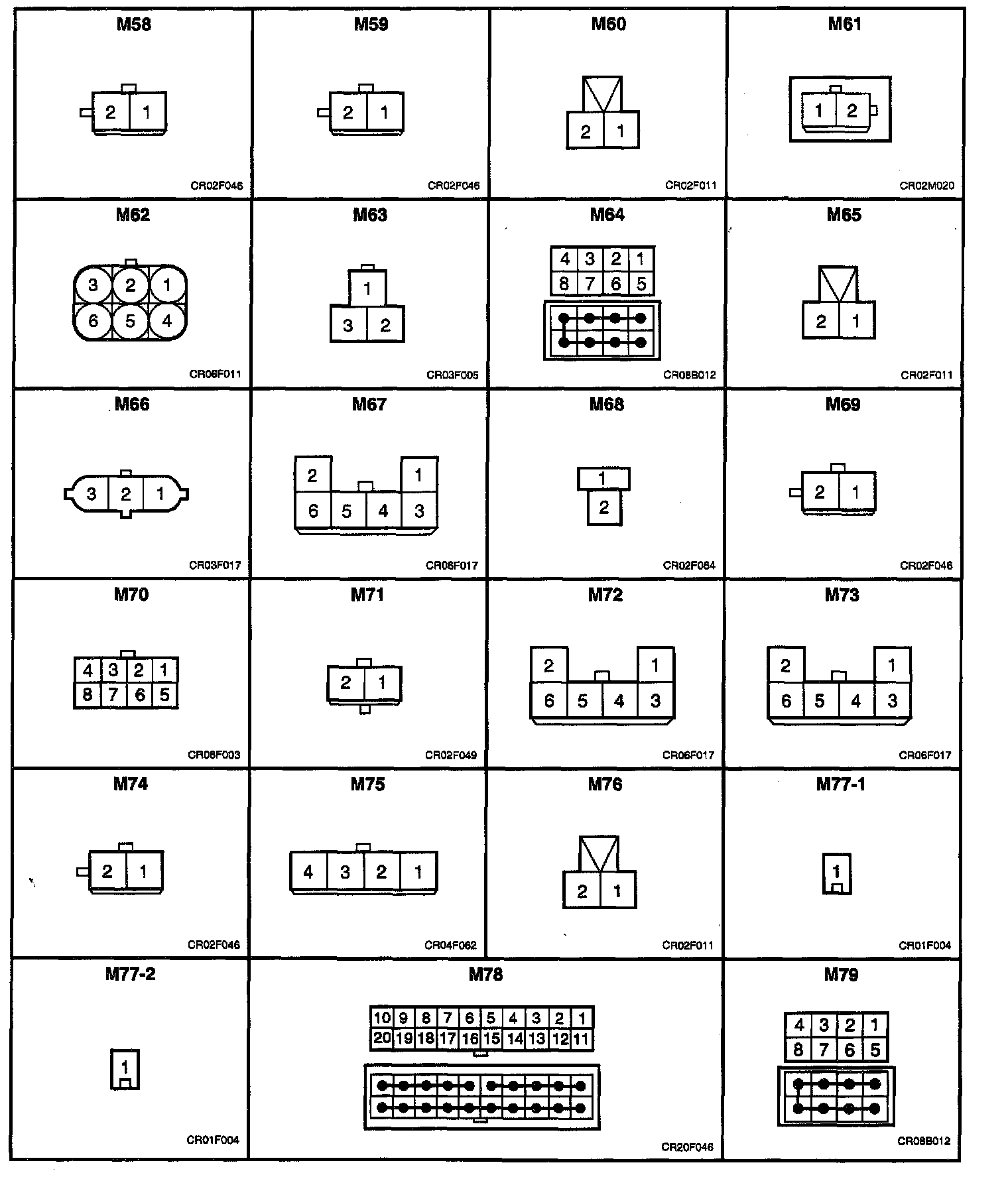

M58 - M79:



M80 - M102:



M103 - M120:



M121 - MD04:



MD05 - MM10:

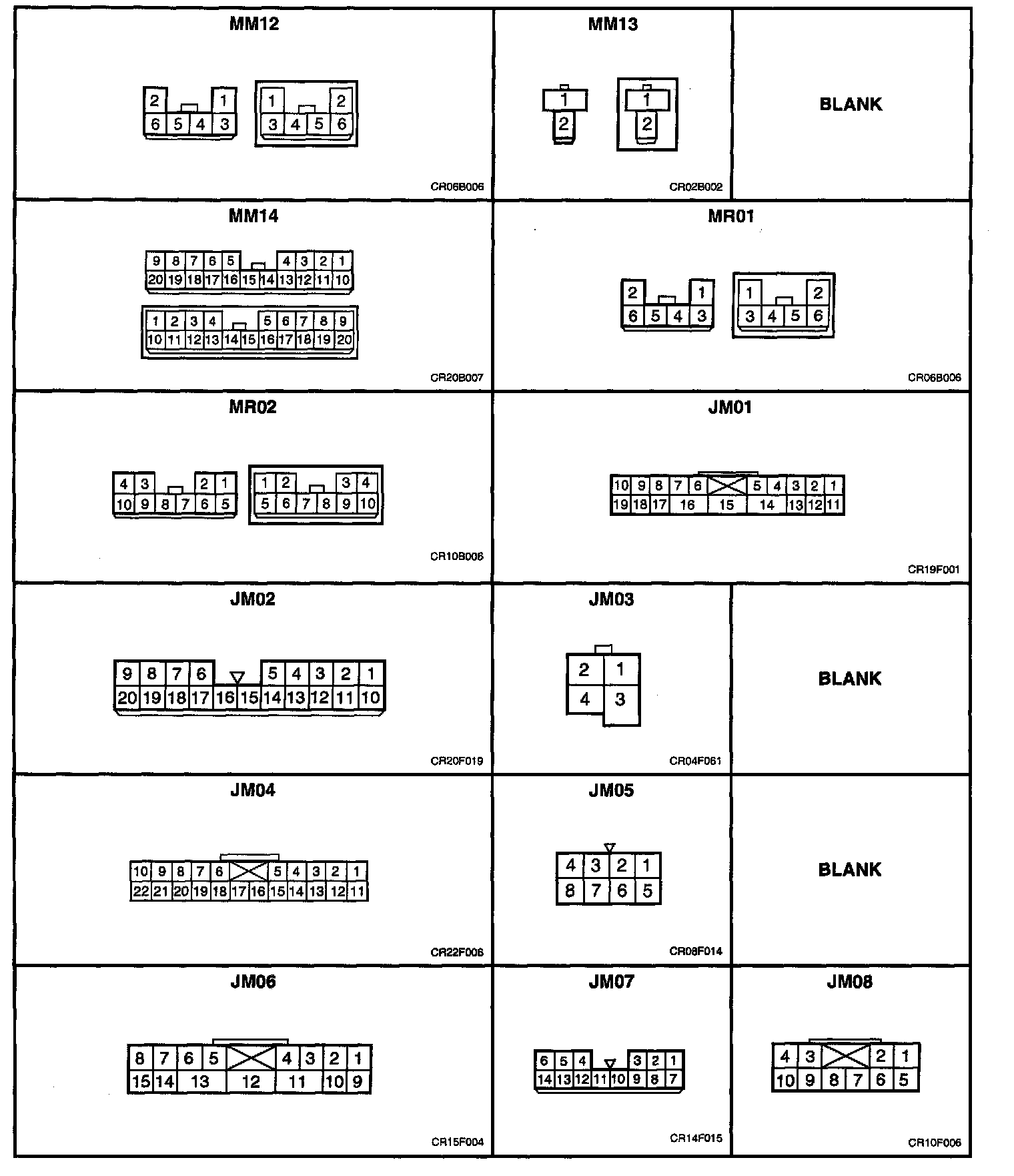

MM12 - JM08:



JM09 - JM10:
