C Connectors (Control Harness)

C01 Engine Coolant Temperature Sensor & Sender:

C02 ETS Control Module (With TCS):

C03 Knock Sensor:

C05 Camshaft Position Sensor:

C08 A/T Pulse Generator A, C09 Transaxle Range Switch, C10 ATM Solenoid Assembly:

C11 Oil Pressure Switch:

C12 Vehicle Speed Sensor:

C13 Mass Air Flow Sensor, C18 Throttle Position Sensor:

C14 ETS Motor, C17 Left Front Wheel Sensor:

C15 A/T Pulse Generator -B:

C16 Electronic Power Steering Solenoid:

C19 Accel Position Sensor:

C21 Wiper Motor, C22 Brake Fluid Level Sensor:

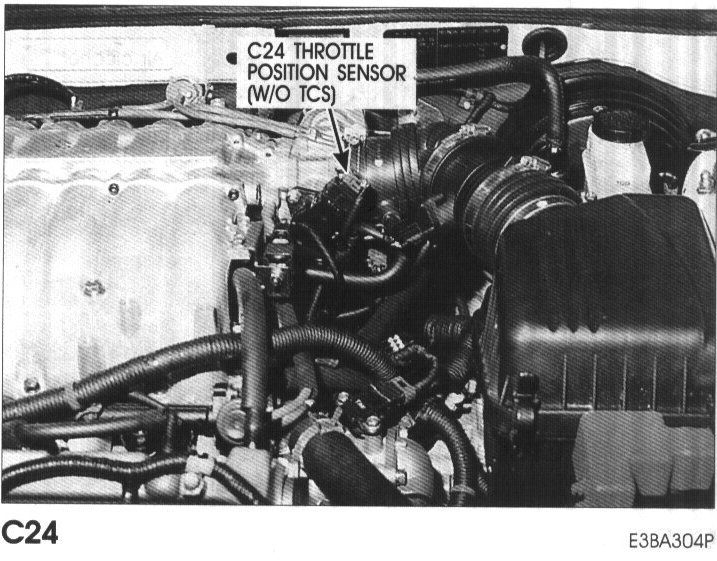

C24 Throttle Position Sensor (Without TCS):

C25 Oxygen Sensor (B2/S1):

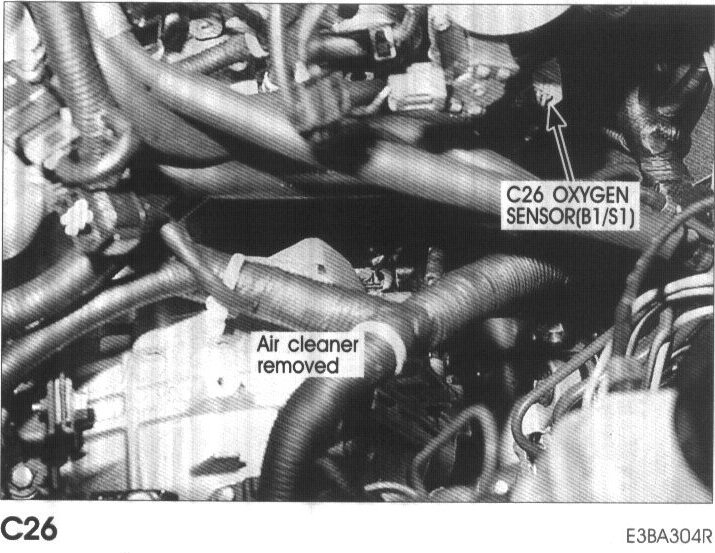

C26 Oxygen Sensor (B1/S1):

C27-1 Variable Intake Sensor, C27-2 Variable Intake Motor:

C28-1, C28-2, C28-3, C28-4, C28-5, C28-6 Injector #1, #2, #3, #4, #5, #6:

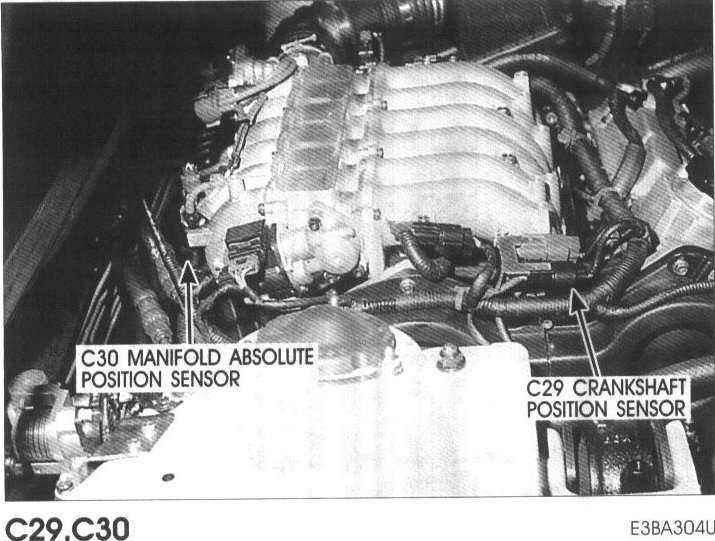

C29 Crankshaft Position Sensor, C30:

C32 Generator:

C33 EGR Solenoid, C35 Right Front Wheel Sensor:

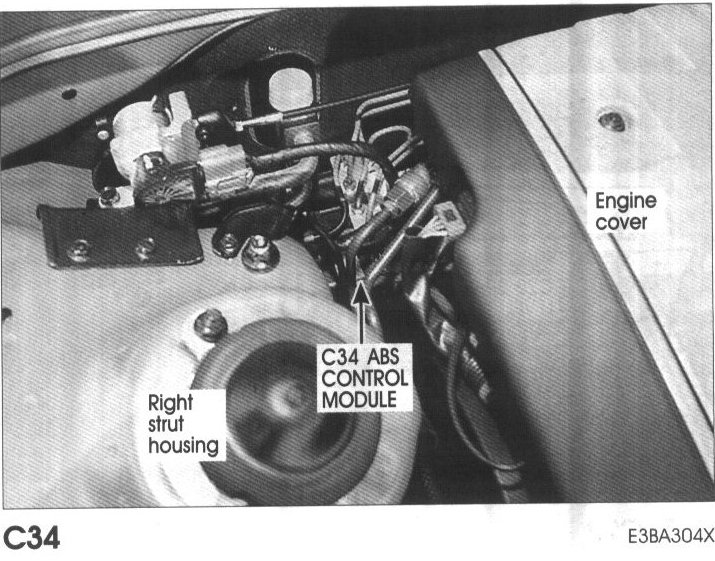

C34 ABS Control Module:

C36 Limp Home Valve, C40 ABS Bleeding Connector:

C37 Purge Control Solenoid Valve:

C38 Rear Oxygen Sensor (B2/S2):

C39 Rear Oxygen Sensor (B1/S2):

C41, C42 Joint Connector, C44-1, C44-2, C44-3, C44-4 PCM:

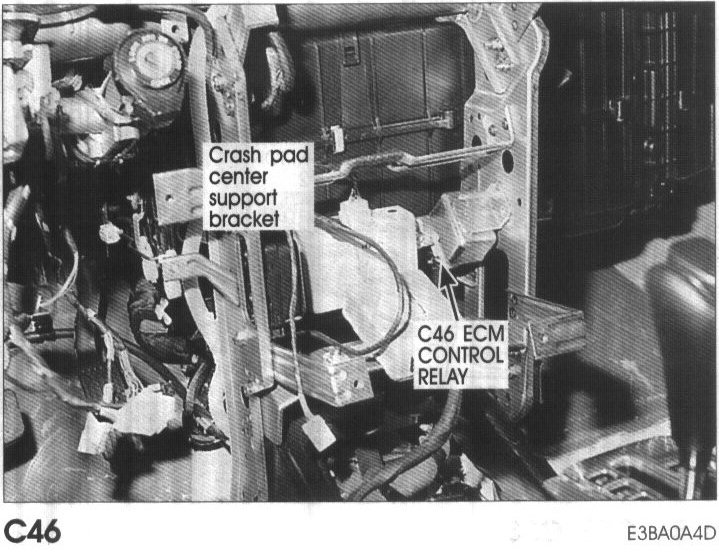

C46 ECM Control Relay:

C48 A/T Control Relay:

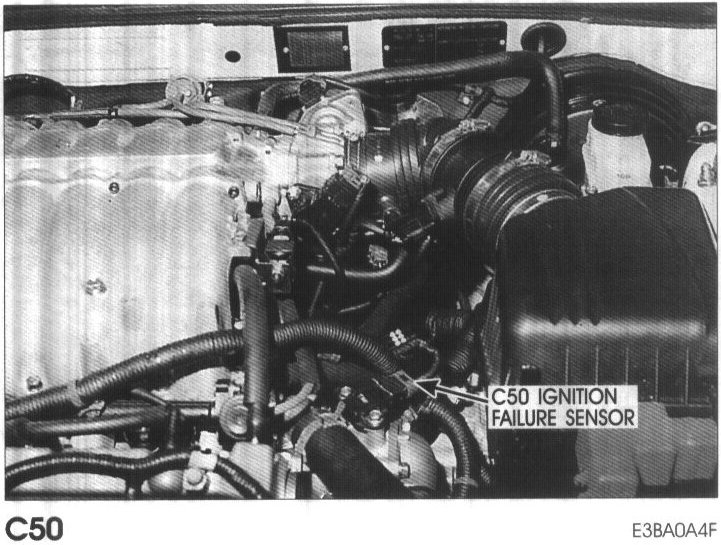

C50 Ignition Failure Sensor:

C51, C52, C53 Ignition Coil #1, #2, #3:

C54 Power Steering Switch:

CC01:

CC03:

JC01:
