D Connectors (Door Harness)

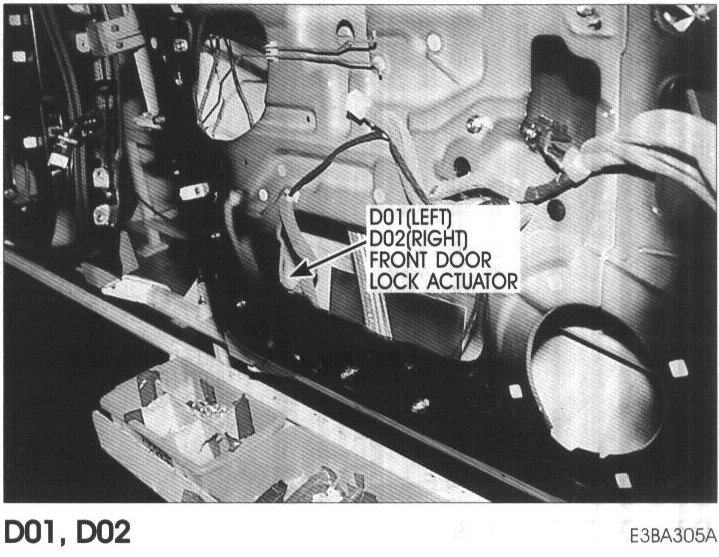

D01, D02 Left & Right Front Door Lock Actuator:

D03, D04, D05 Driver Door Module.1, 2 (W/O & With MS):

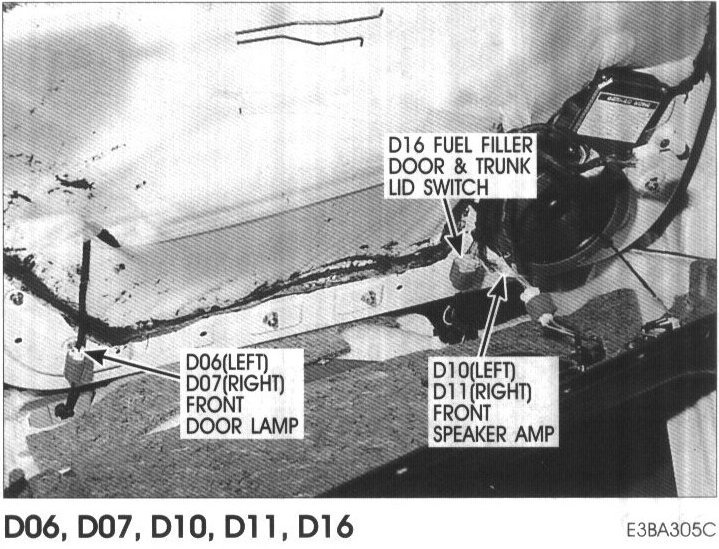

D06, D07 Left & Right Front Door Lamp, D10, D11 Left & Right Front Speaker Lamp, D16 Fuel Filler Door & Trunk Lid Switch:

D12, D13 Left & Right Joint Connector, D17, D18 Left & Right Front Power Window Motor:

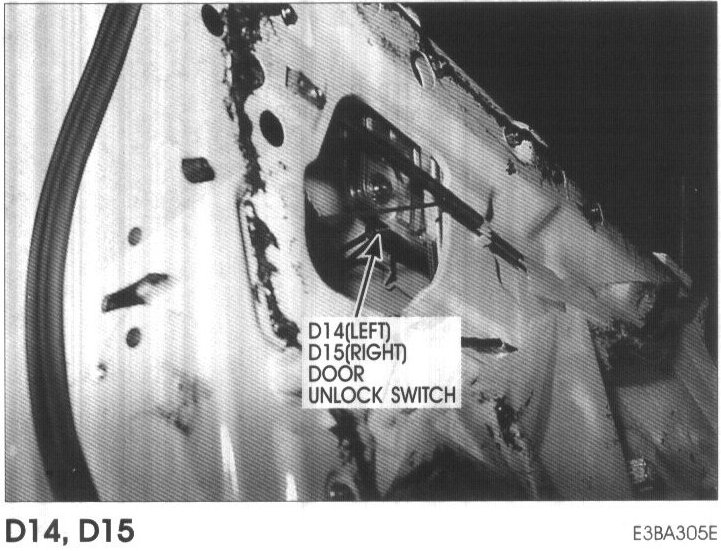

D14, D15 Left & Right Door Unlock Switch:

D19, D20 Left & Right Outside Mirror Motor:

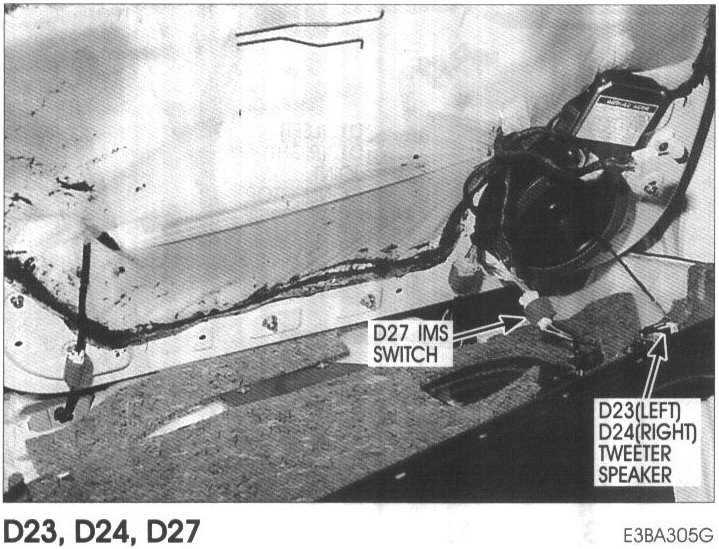

D23, D24 Left & Right Tweeter Speaker, D27 IMS Switch:

D25, D26 Left & Right IMS Mirror Motor:

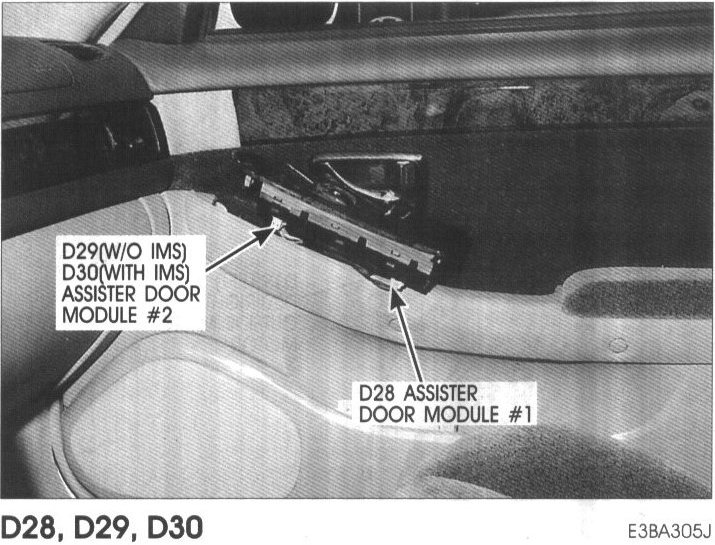

D28, D29, D30 Assisted Door Module 1, 2 (Without & With IMS):

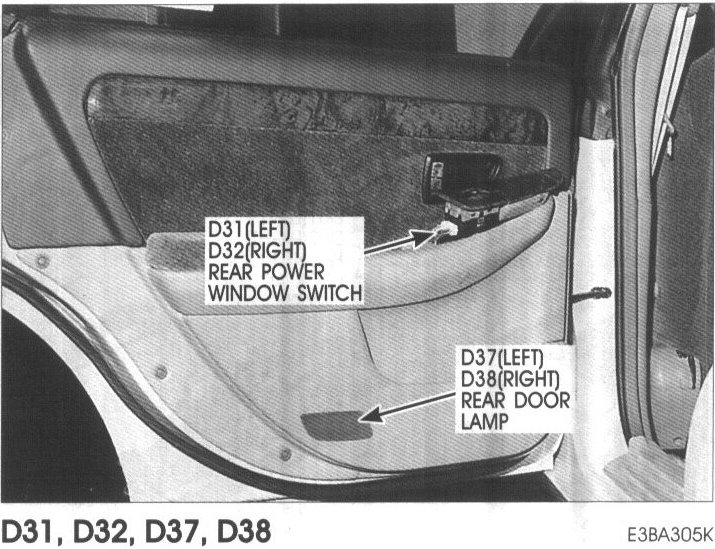

D31, D32 Left & Right Rear Power Window Switch, D37, D38 Left & Right Rear Door Lamp:

D33, D34 Left & Right Rear Power Window Switch:

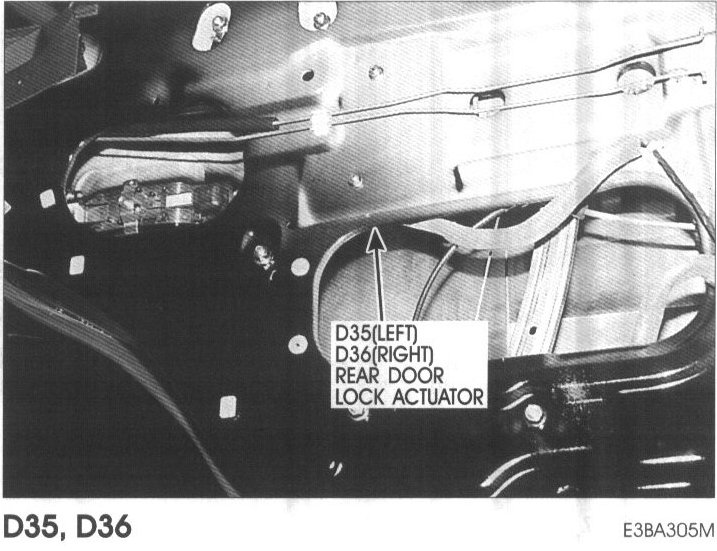

D35, D36 Left & Right Rear Door Lock Actuator:
