G Connectors (Grounds)

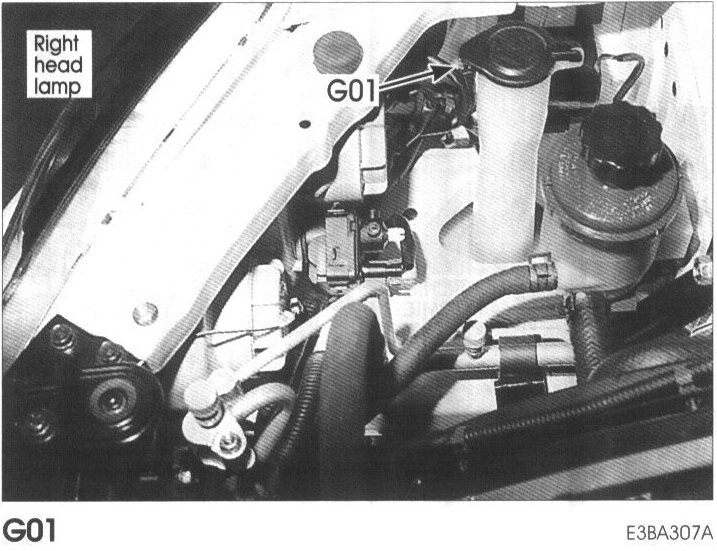

G01:

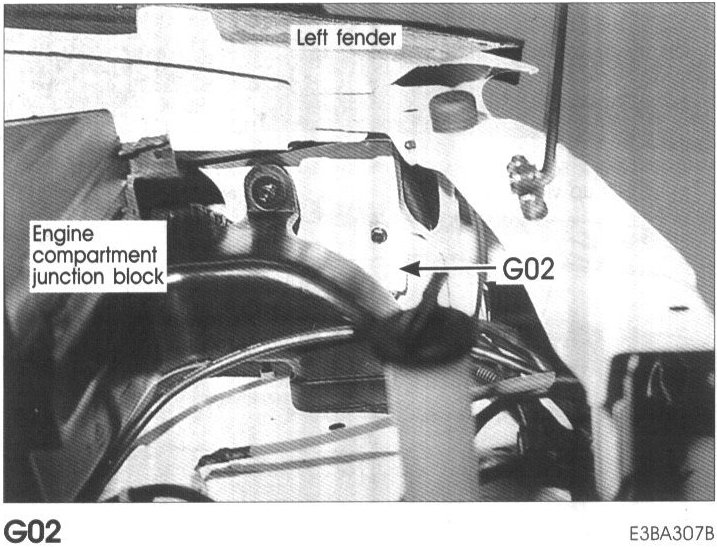

G02:



G03:



G04:



G05:



G06:

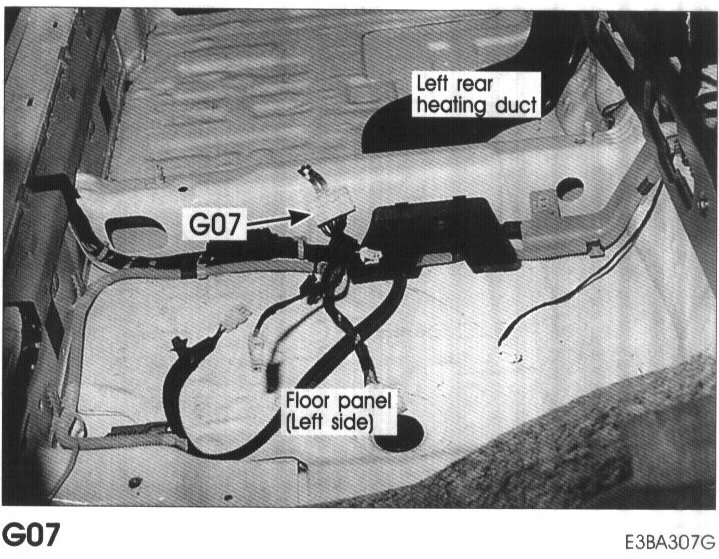

G07:

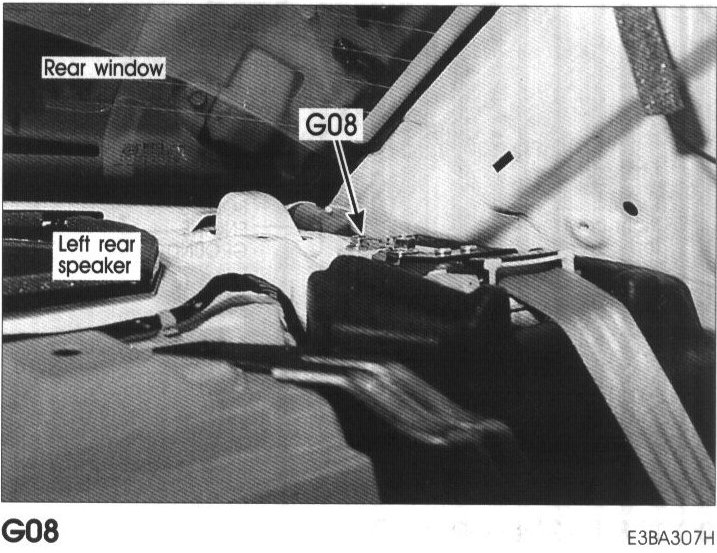

G08:

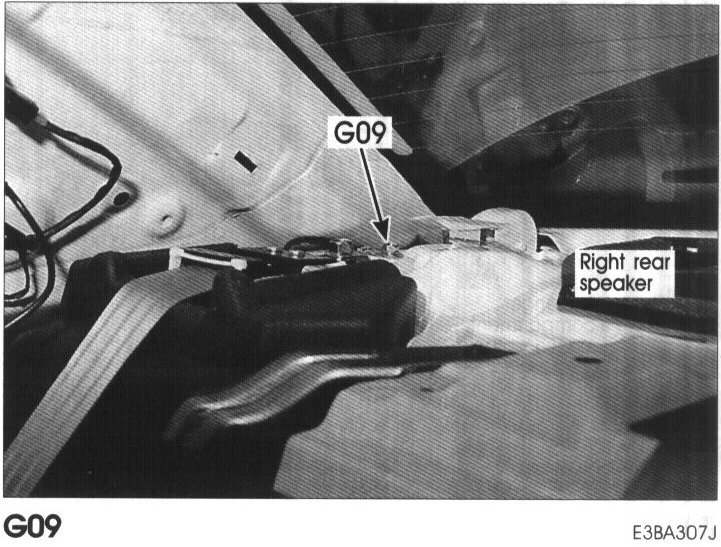

G09:



G10:

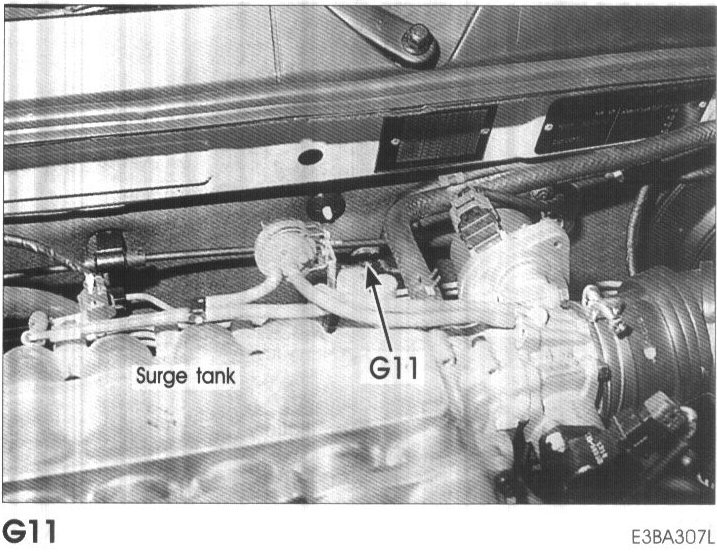

G11:



G12:



G13, G14, G15:



G16:

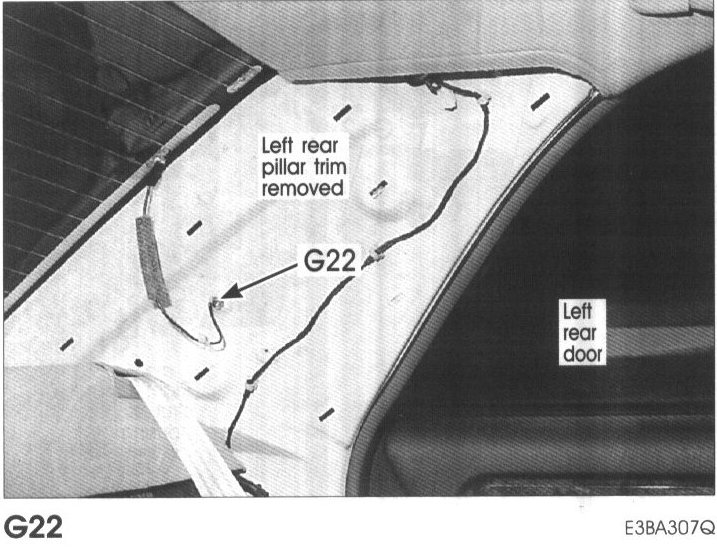

G22:



G23:



Body & Engine Ground:

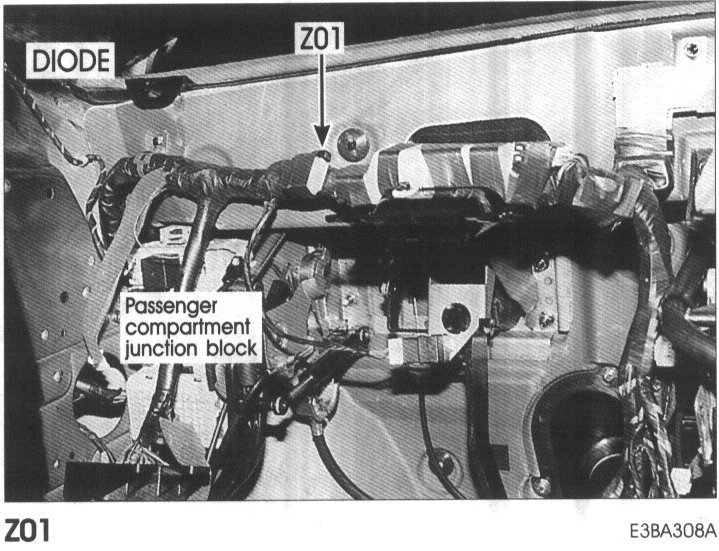

Z01:
