R Connectors (Rear Harness)

R01 Left Rear Combination Lamp:

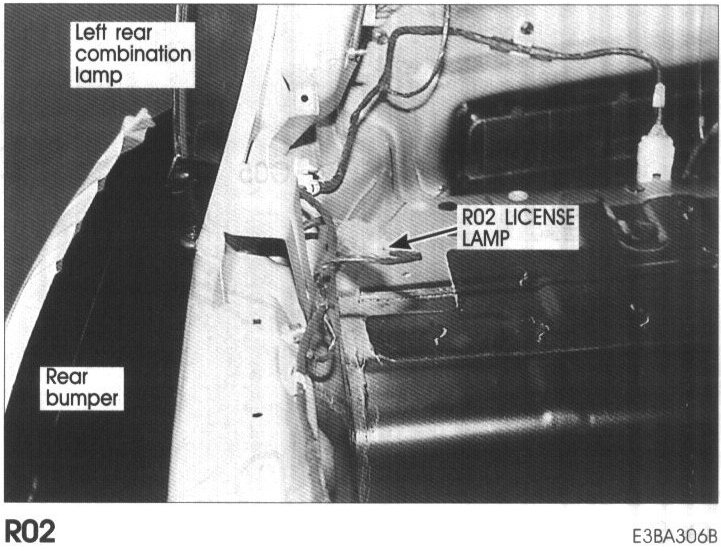

R02 License Lamp:

R03 Right Rear Combination Lamp:

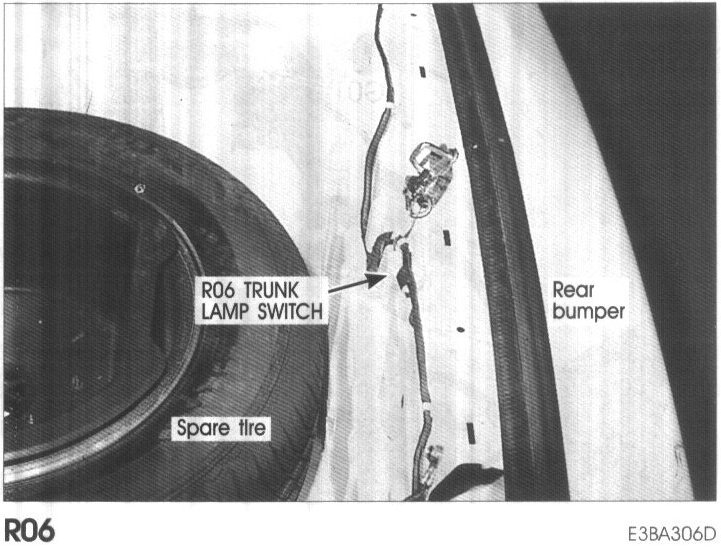

R06 Trunk Room Lamp Switch:

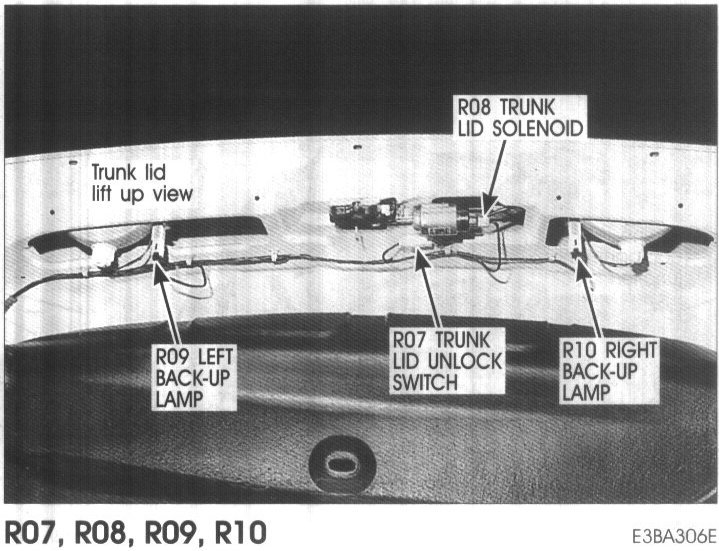

R07 Trunk Lid Unlock Switch, R08 Trunk Lid Solenoid, R09, R10 Left & Right Back-up Lamp:
