Cruise Control
Cruise Control

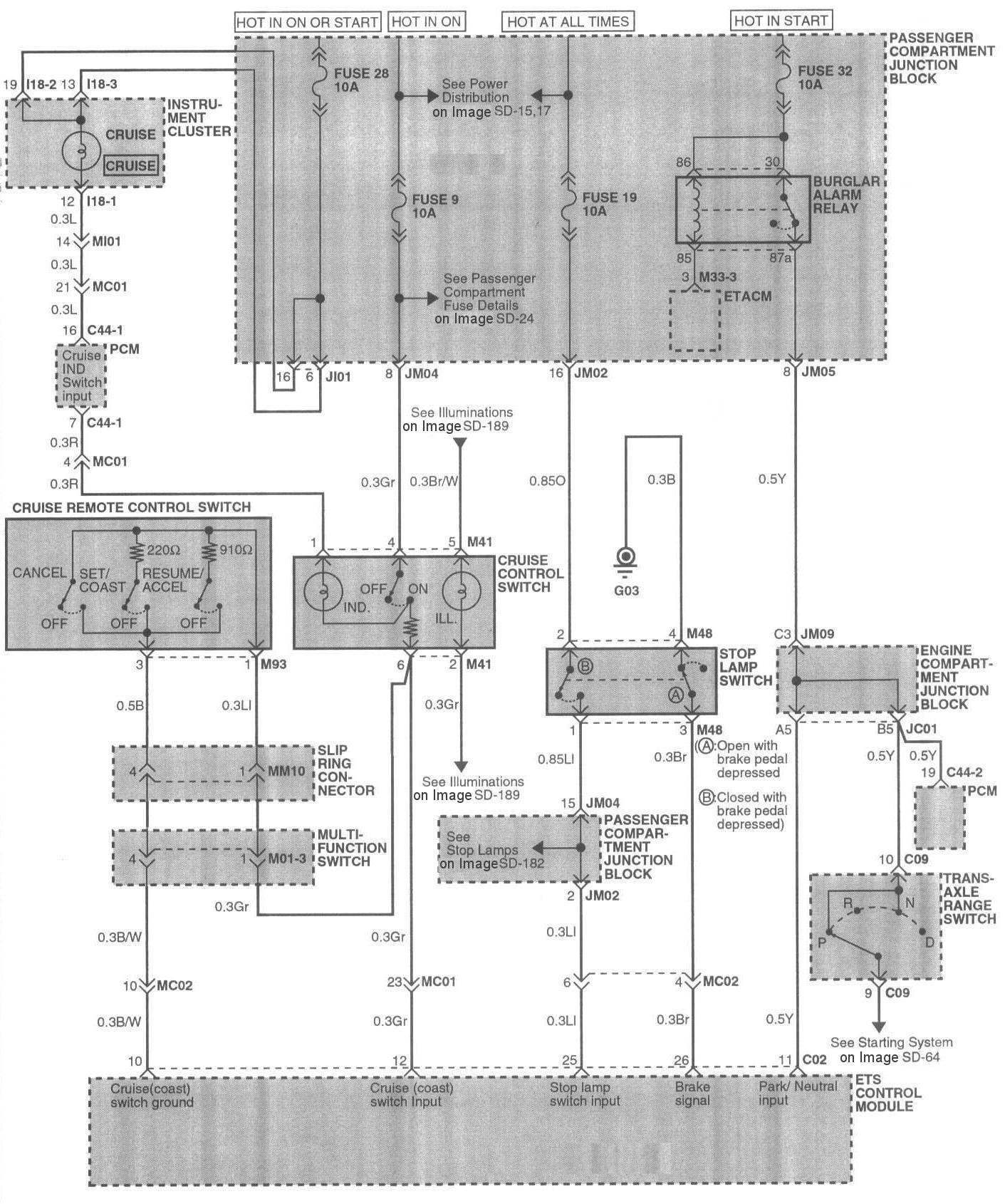

Image SD-84 Cruise Control System (1):

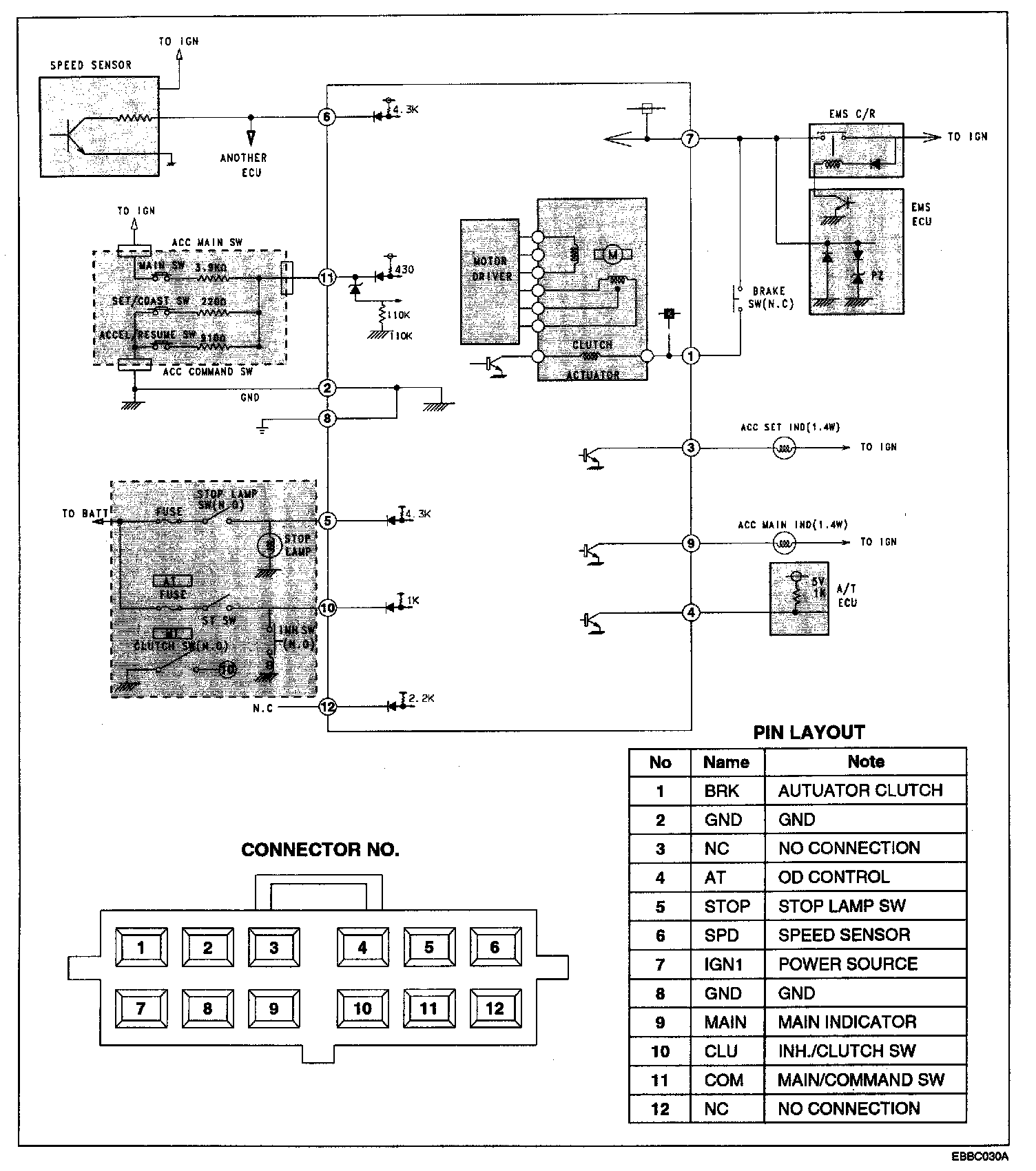

Cruise Control System - Circuit Diagram:
