System Diagram

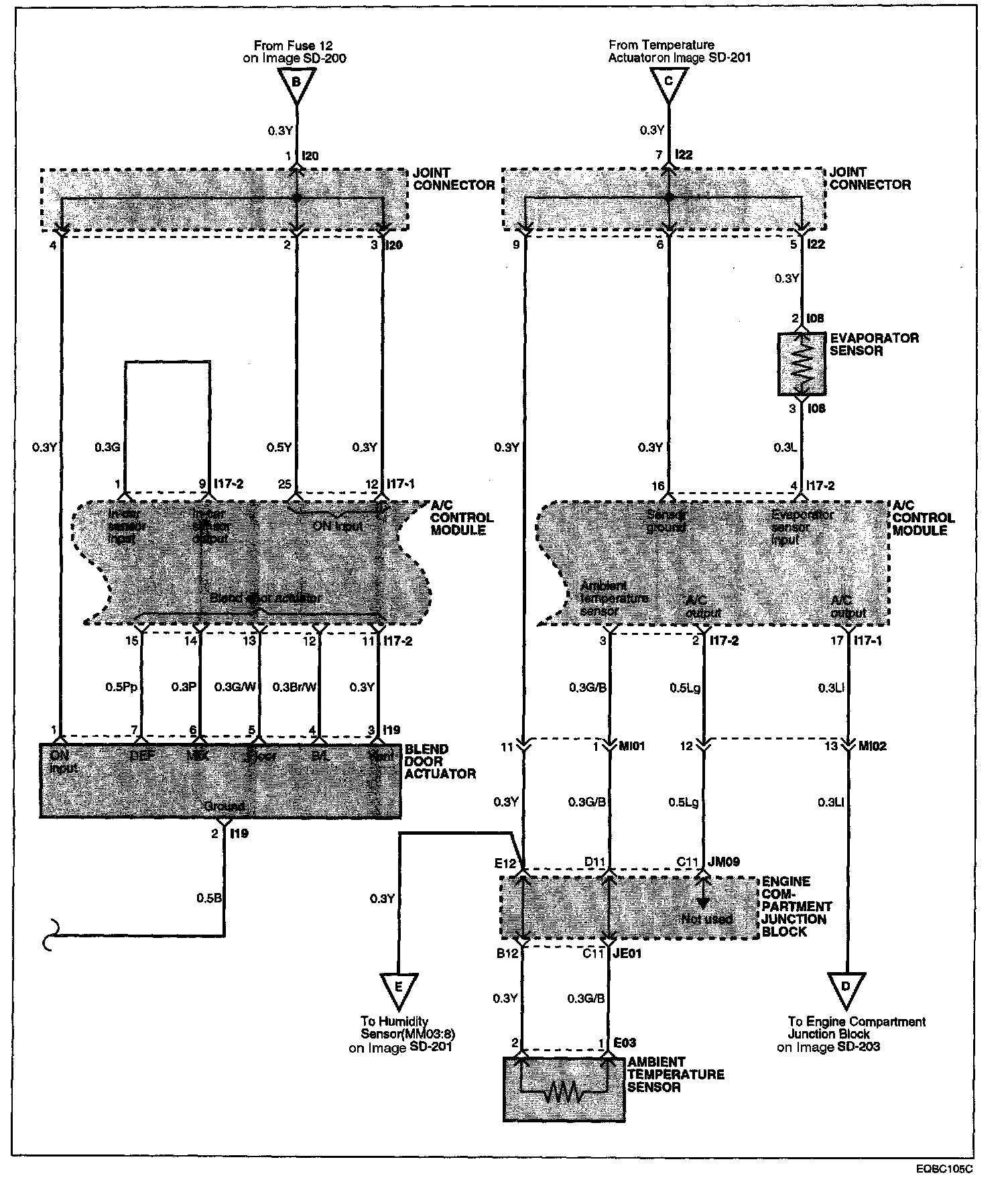

Blower And A/C Controls (Manual) Part 1:

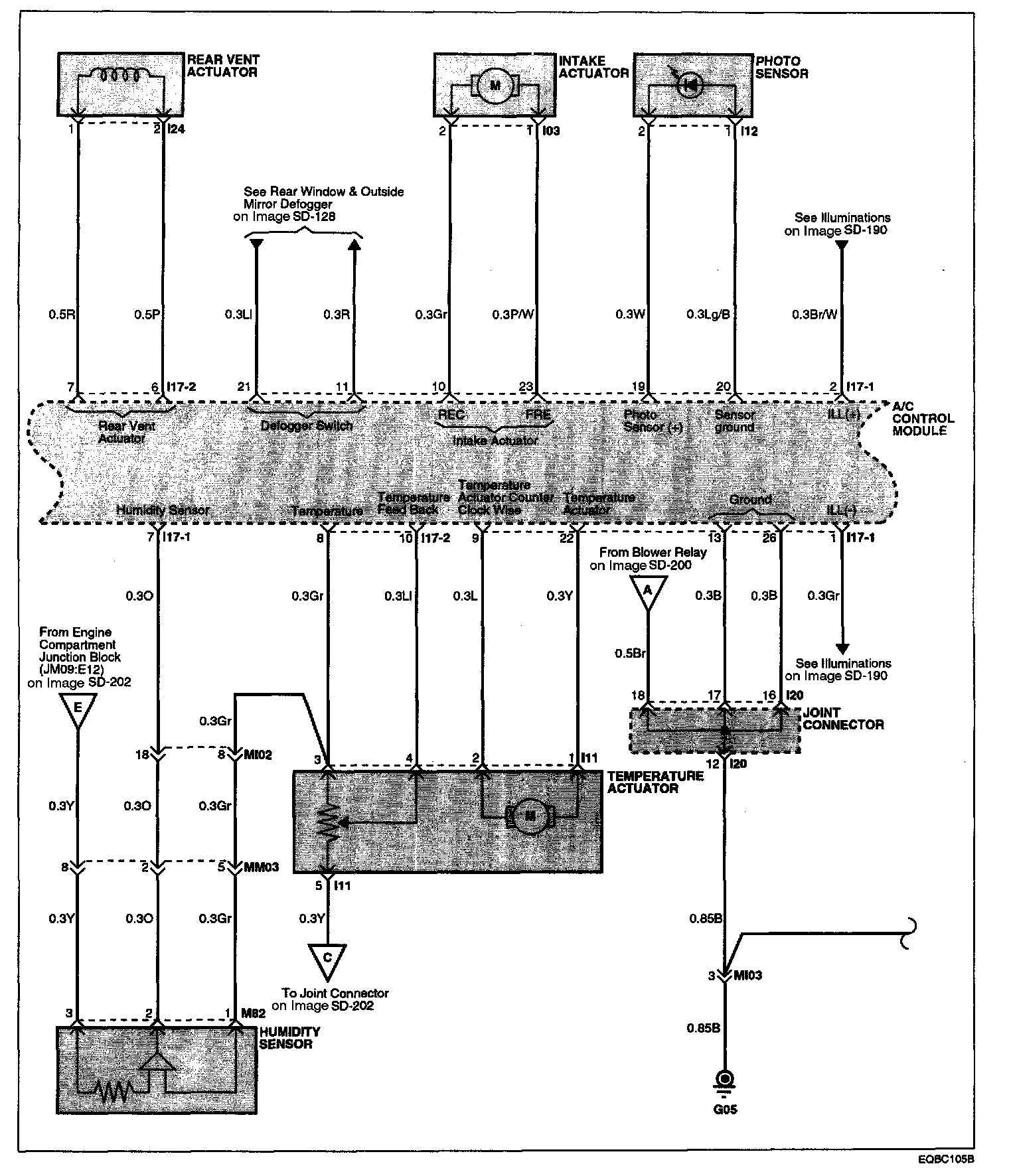

Blower And A/C Controls (Manual) Part 2:

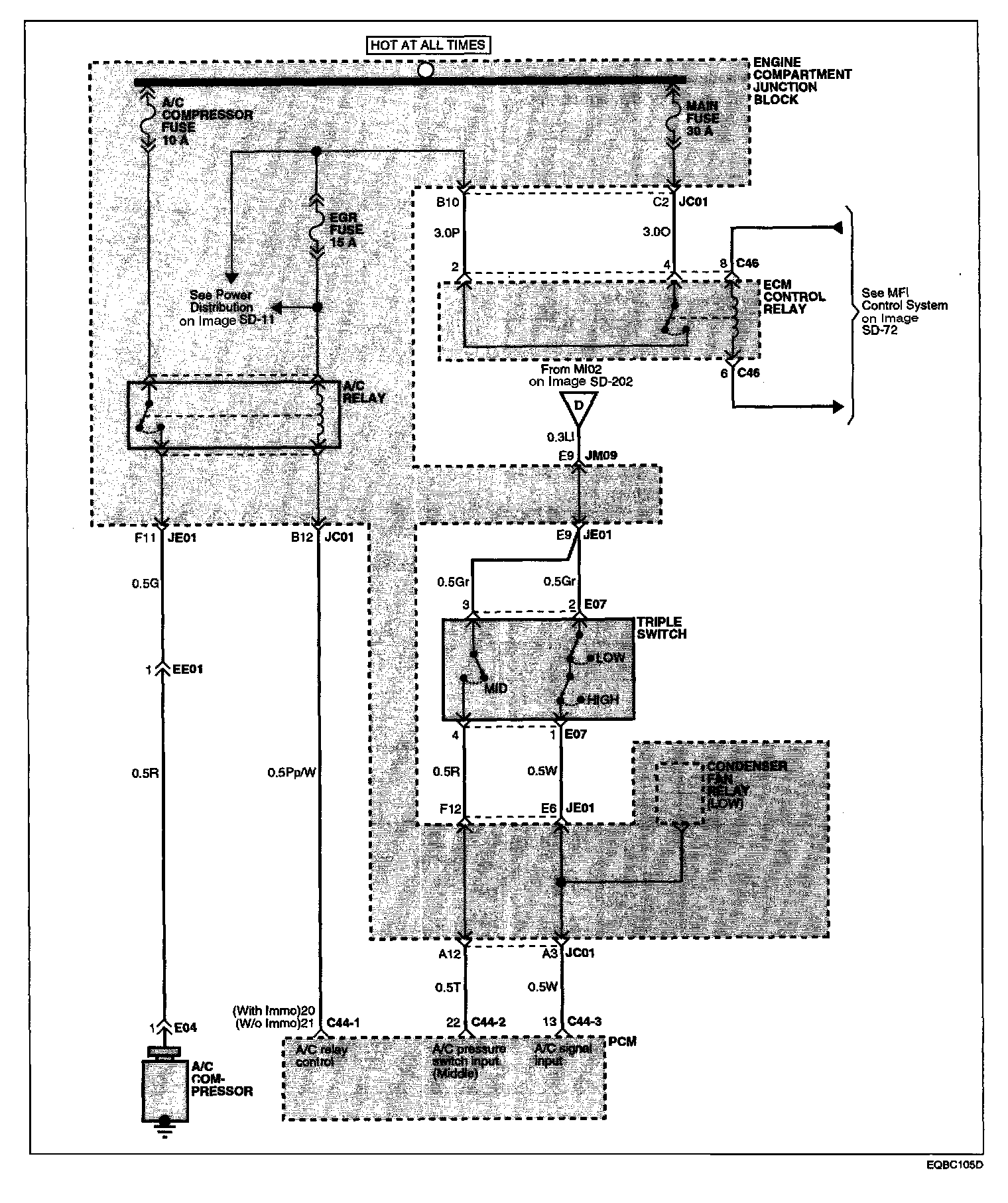

Blower And A/C Controls (Manual) Part 3:

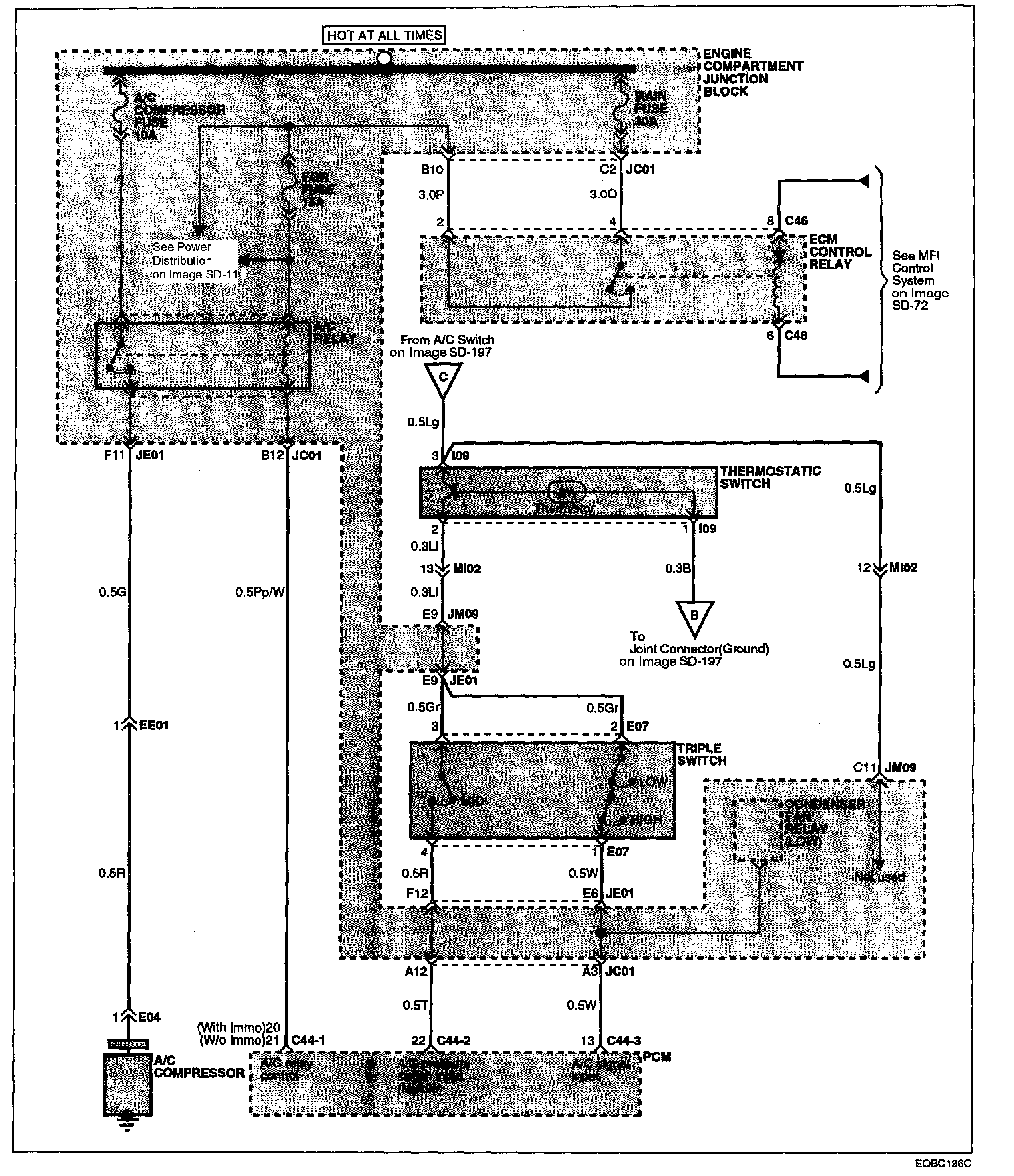

Blower And A/C Controls (Automatic) Part 1:



Blower And A/C Controls (Automatic) Part 2:



Blower And A/C Controls (Automatic) Part 3:



Blower And A/C Controls (Automatic) Part 4:
