Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
Instrument Cluster / Carrier
Circuit Diagram:

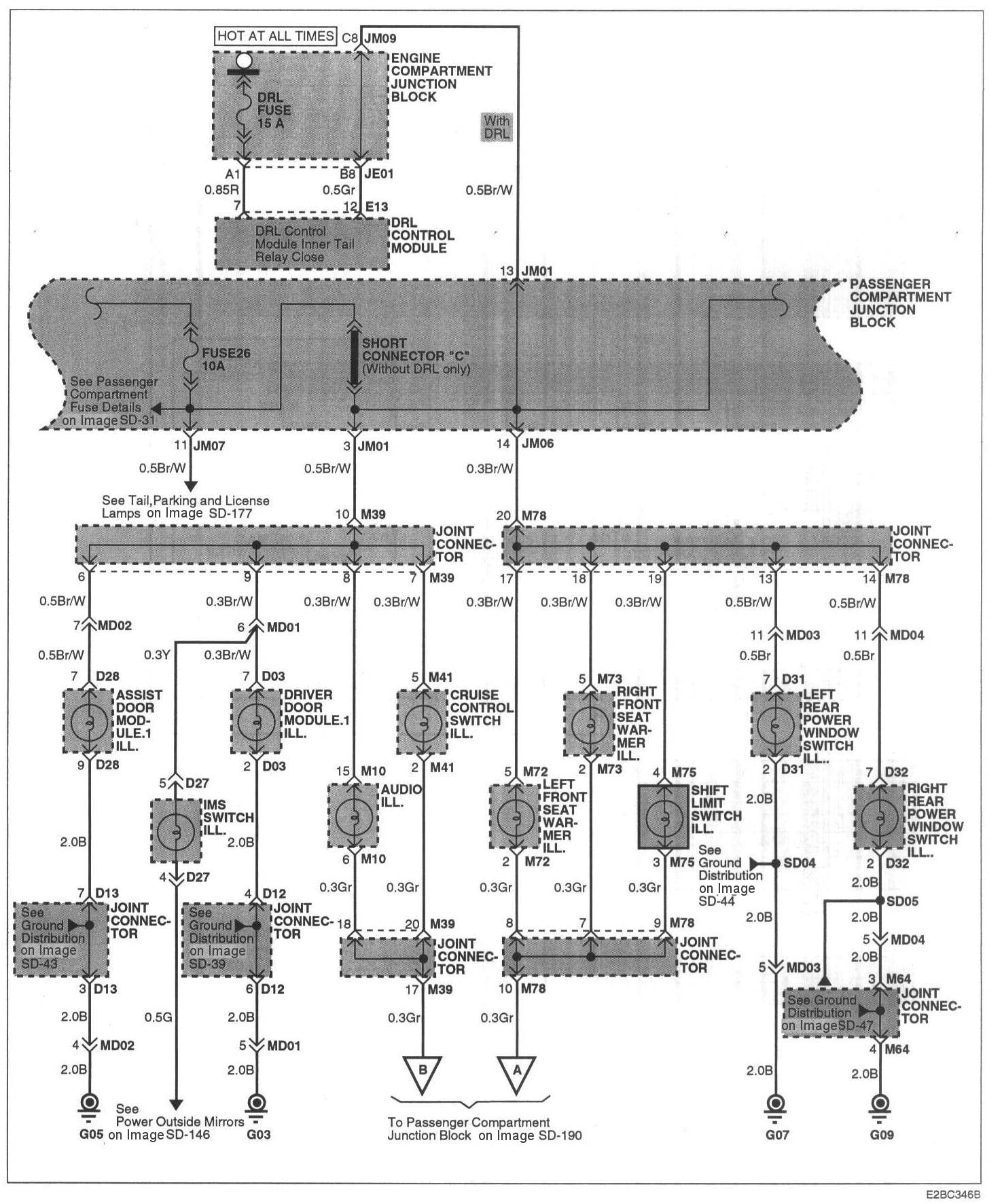

Image SD-188 Illuminations (1):

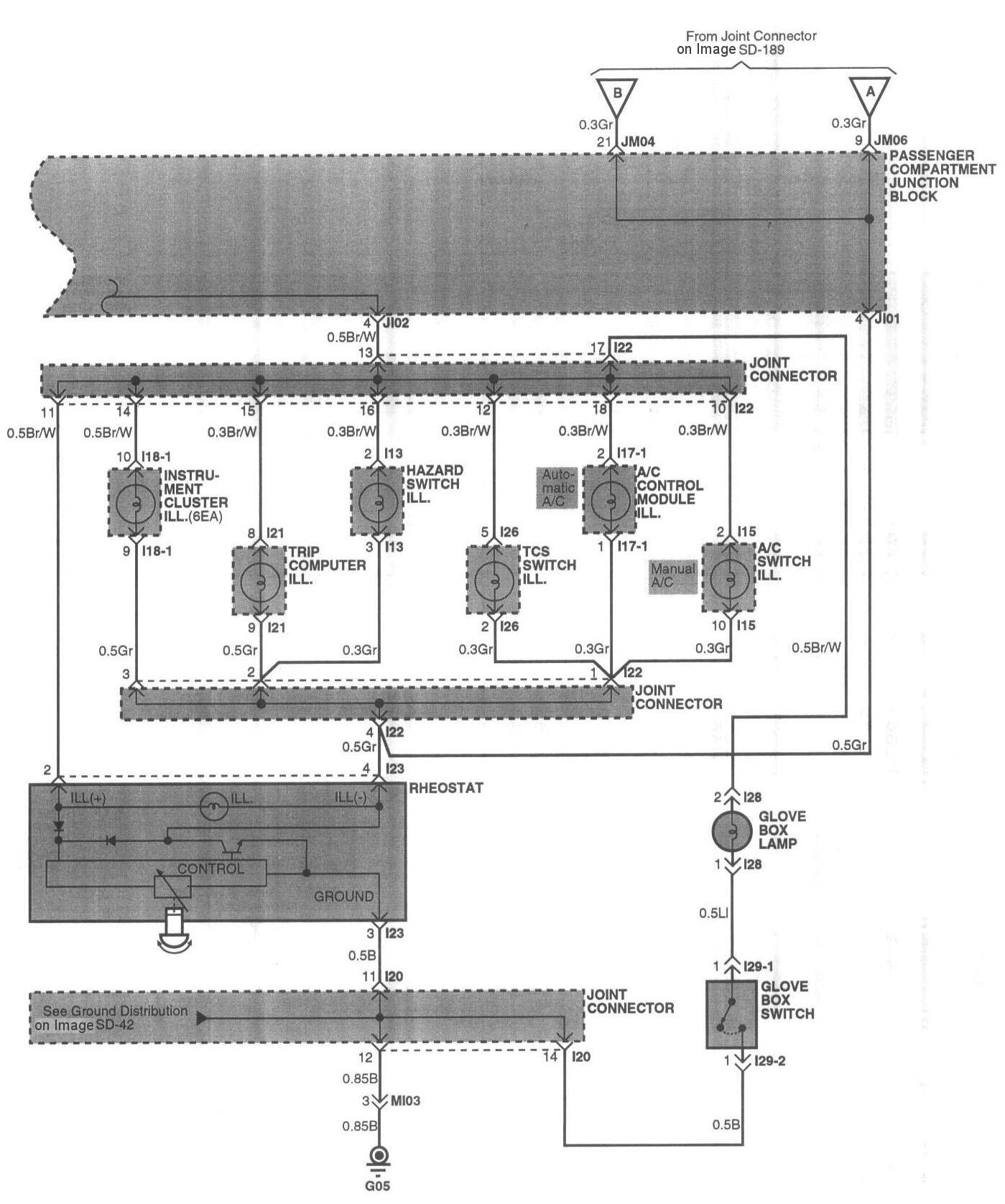

Image SD-189 Illuminations (2):

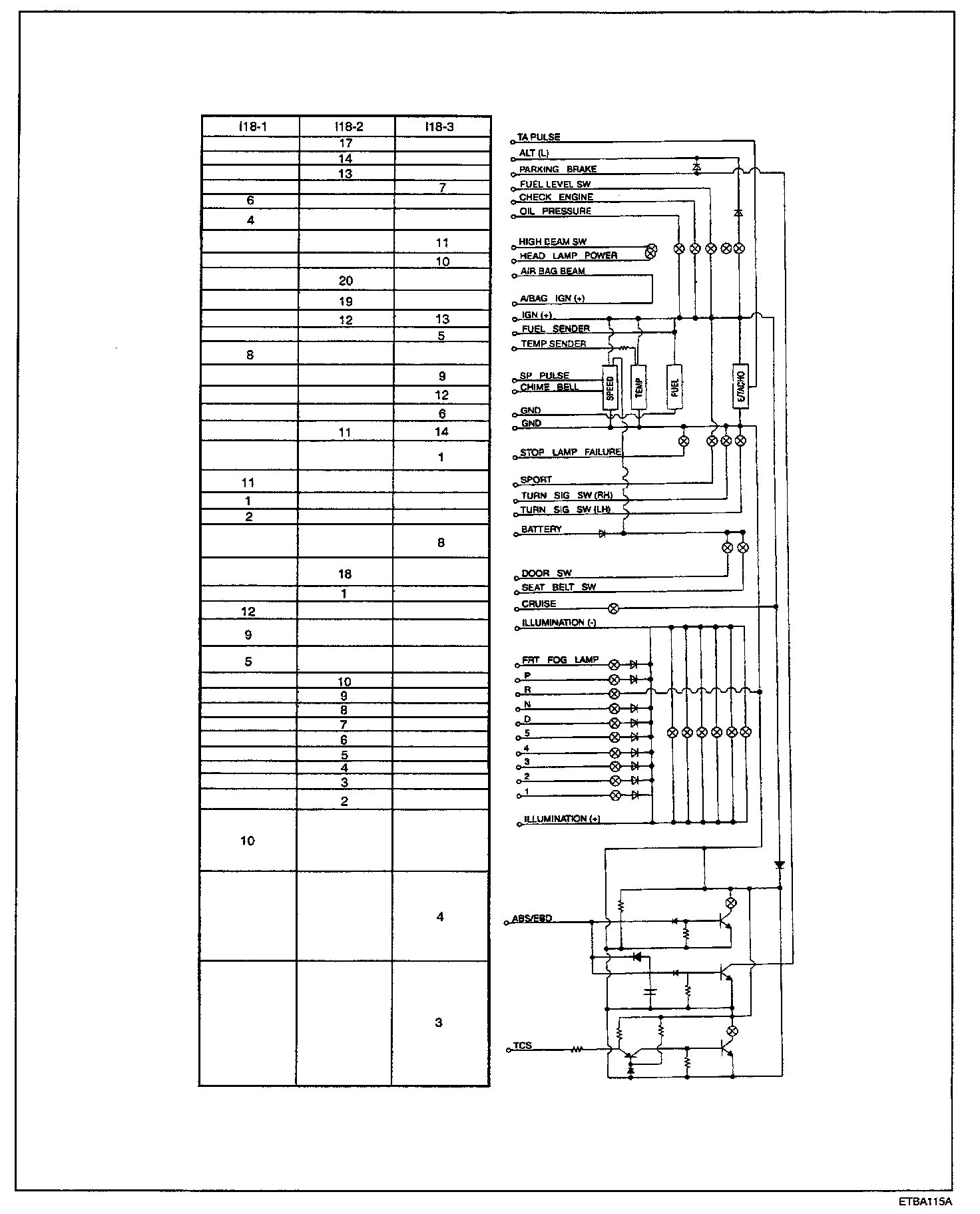

Image SD-190 Illuminations (3):
