Data Link Connector
Data Link Connector

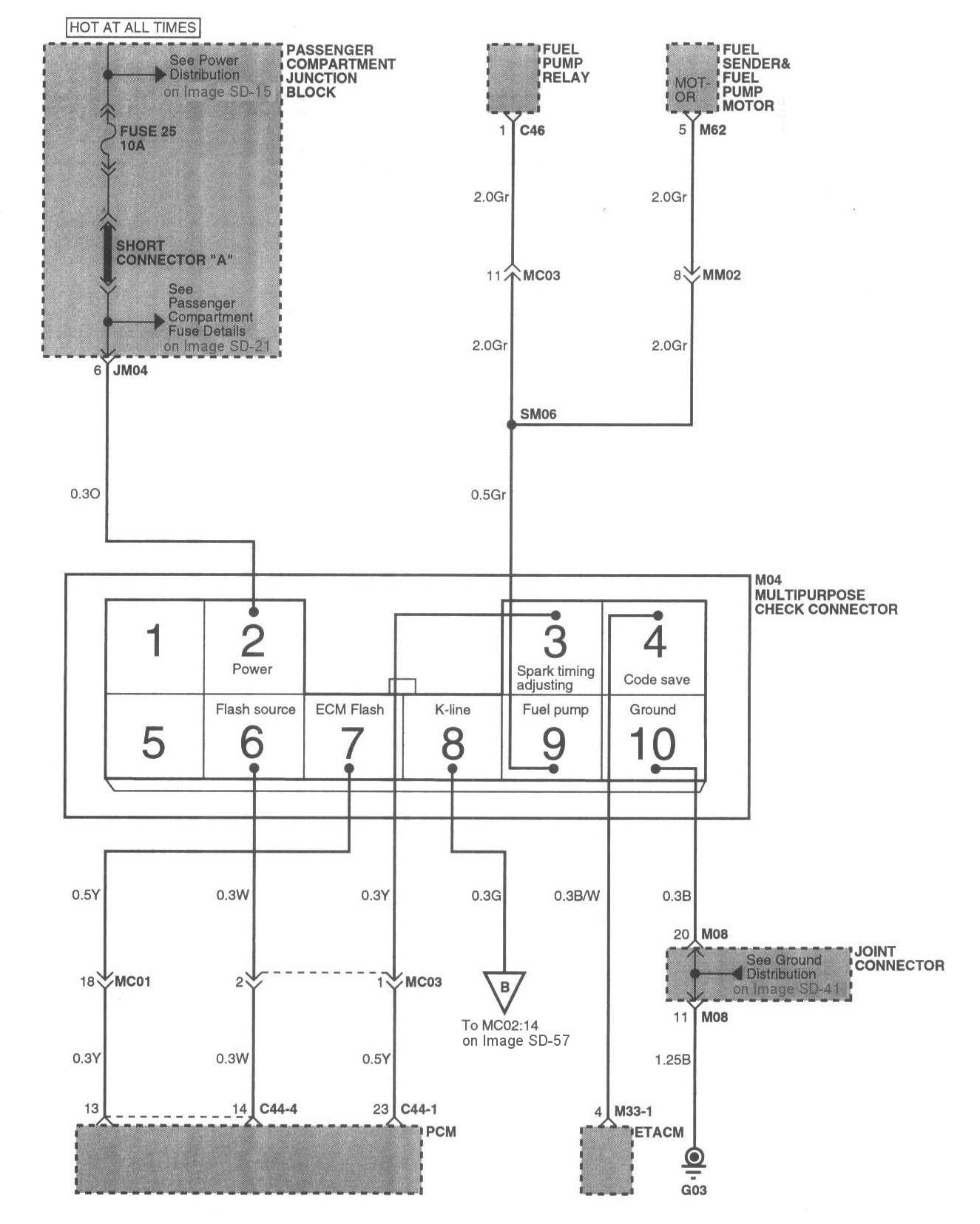

Image SD-56 Data Link Details (1):

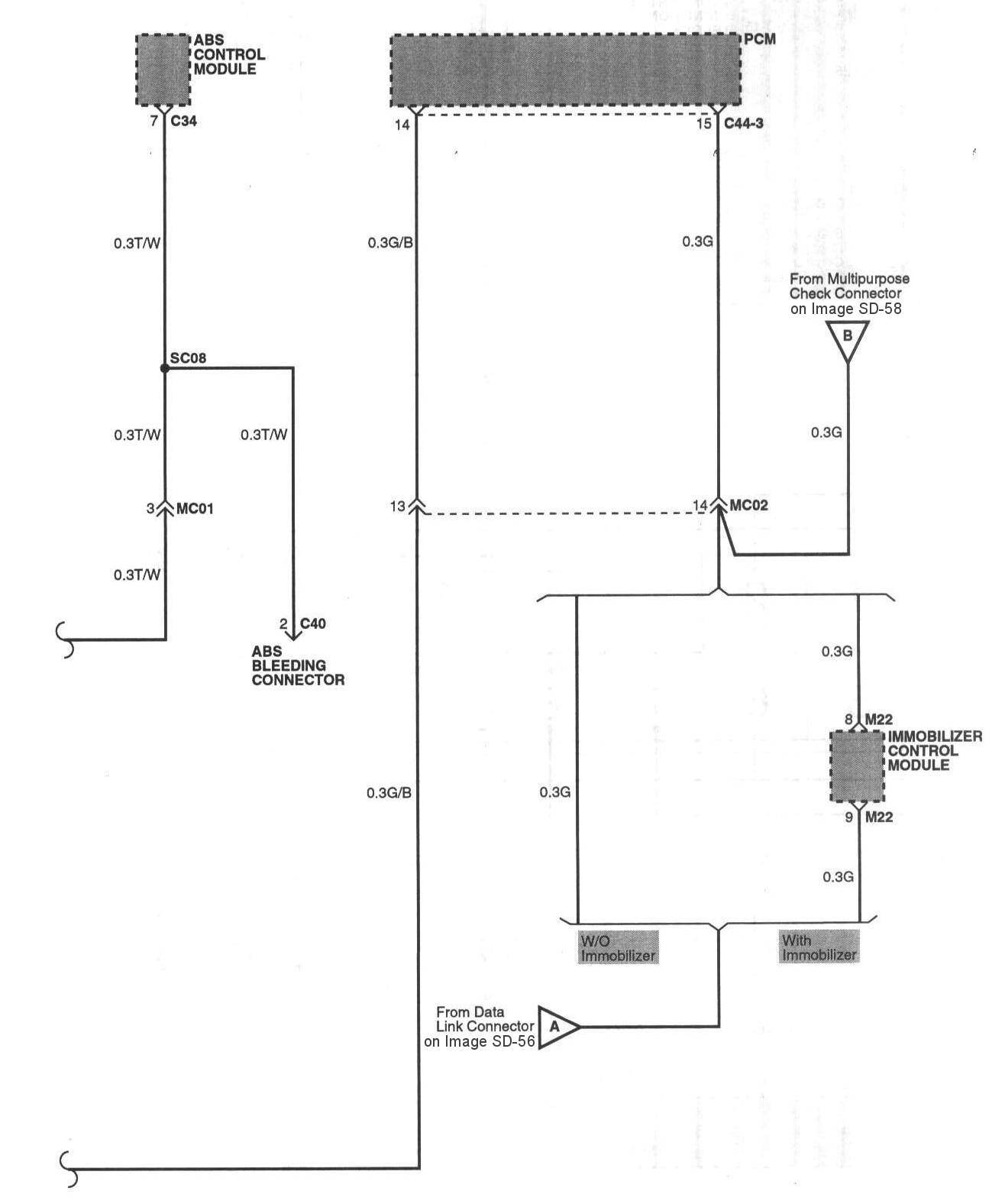

Image SD-57 Data Link Details (2):
Image SD-58 Data Link Details (3):
