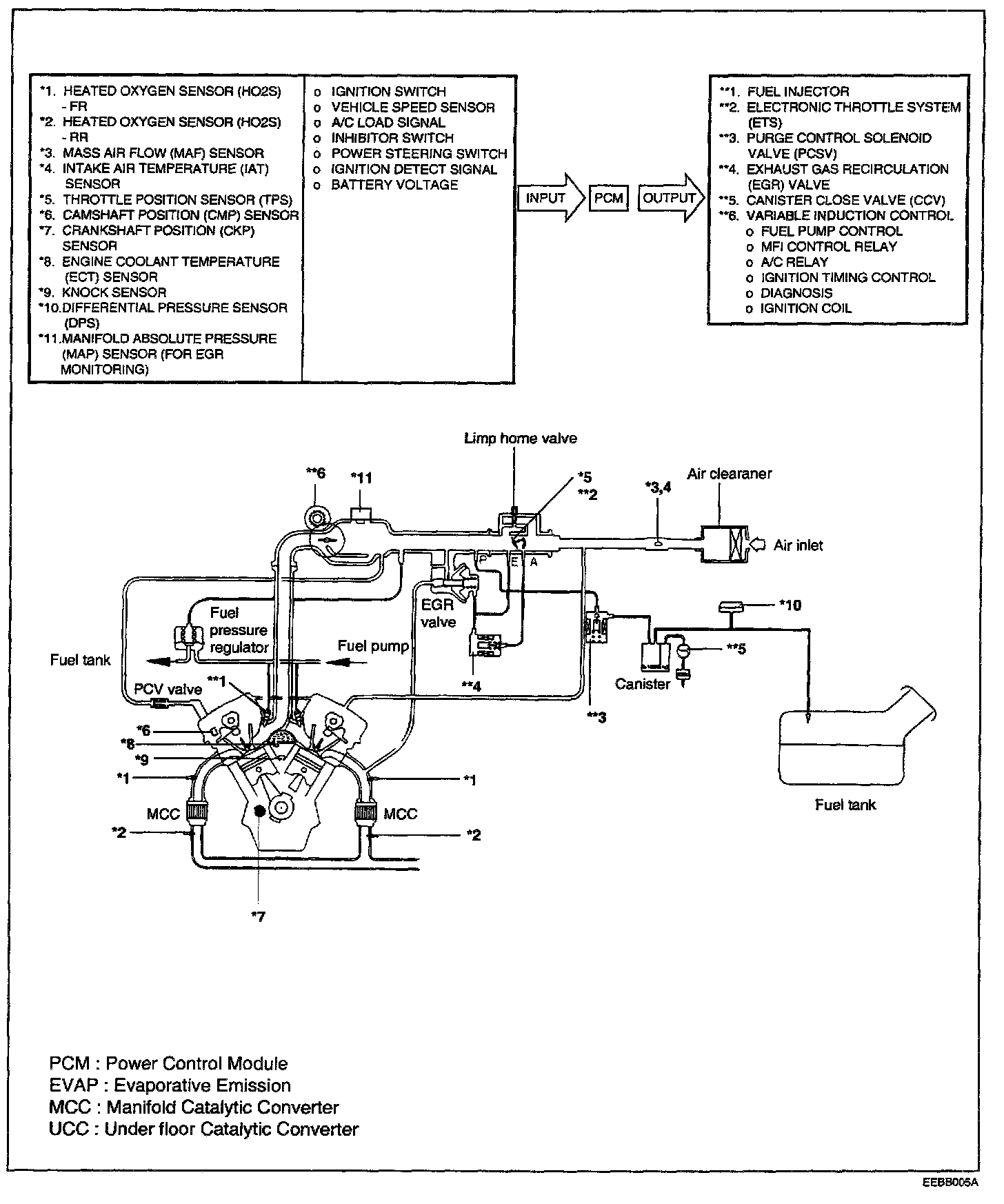

System Diagram

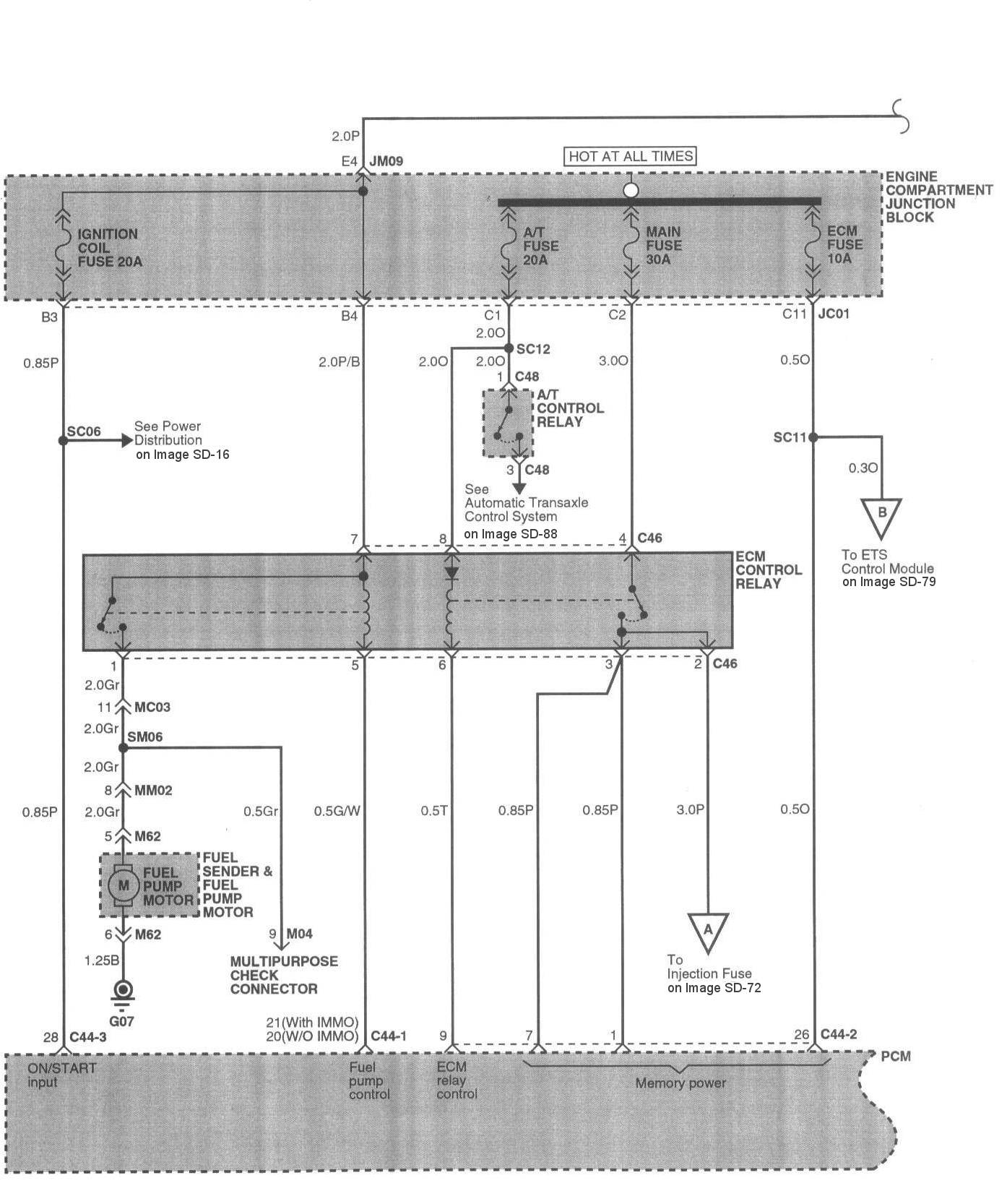

Image SD-72 MFI Control System (1):

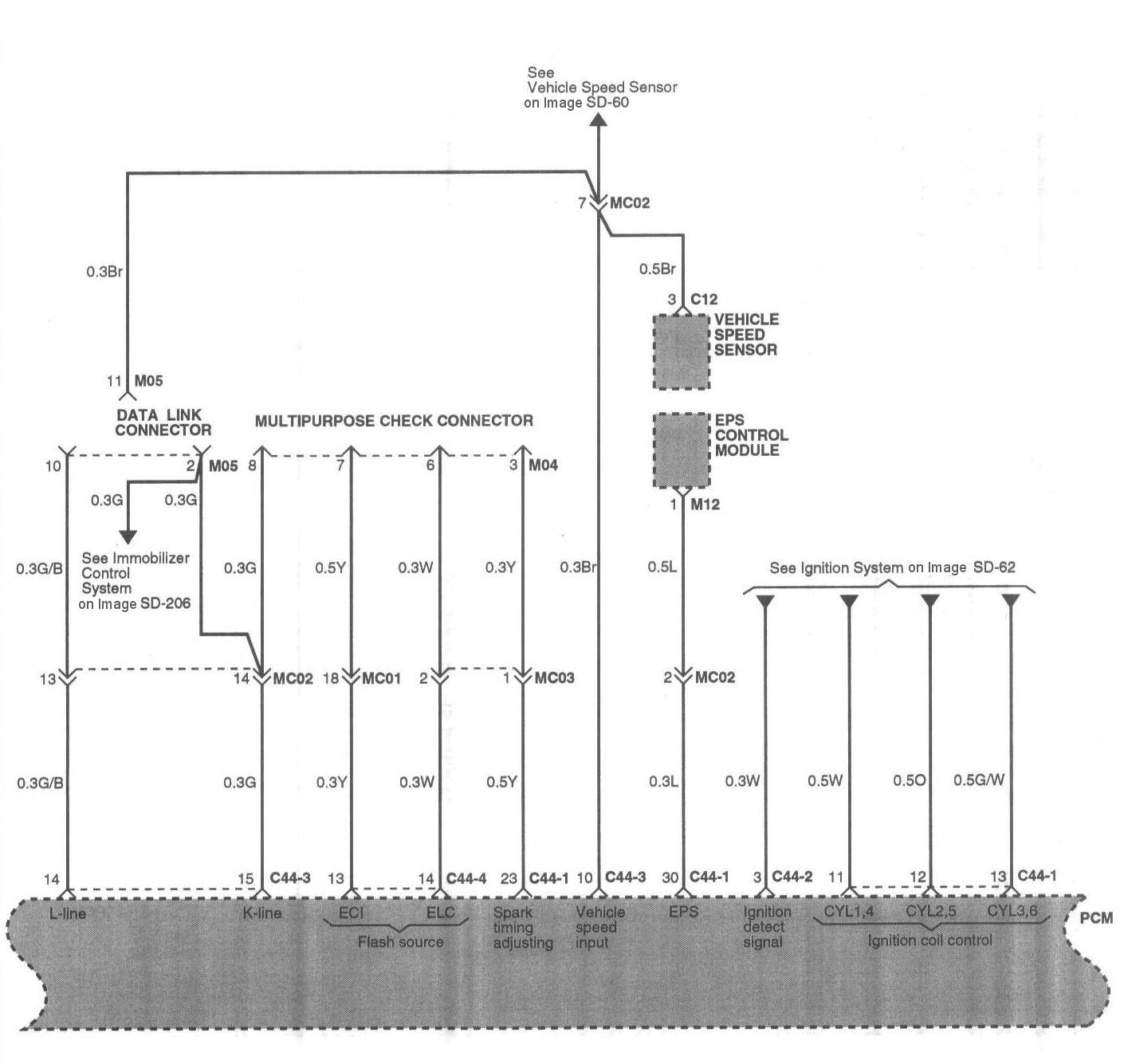

Image SD-73 MFI Control System (2):

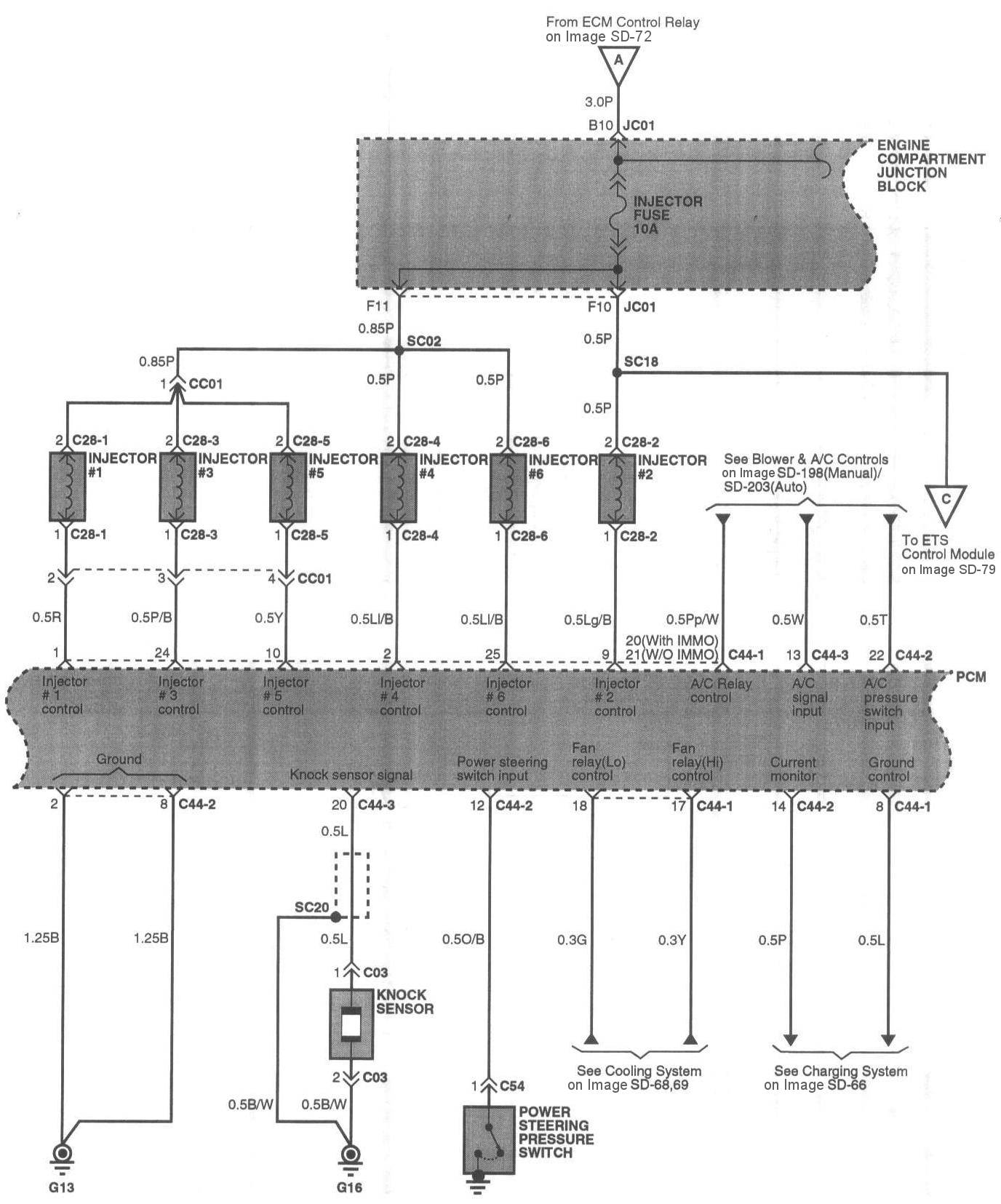

Image SD-74 MFI Control System (3):

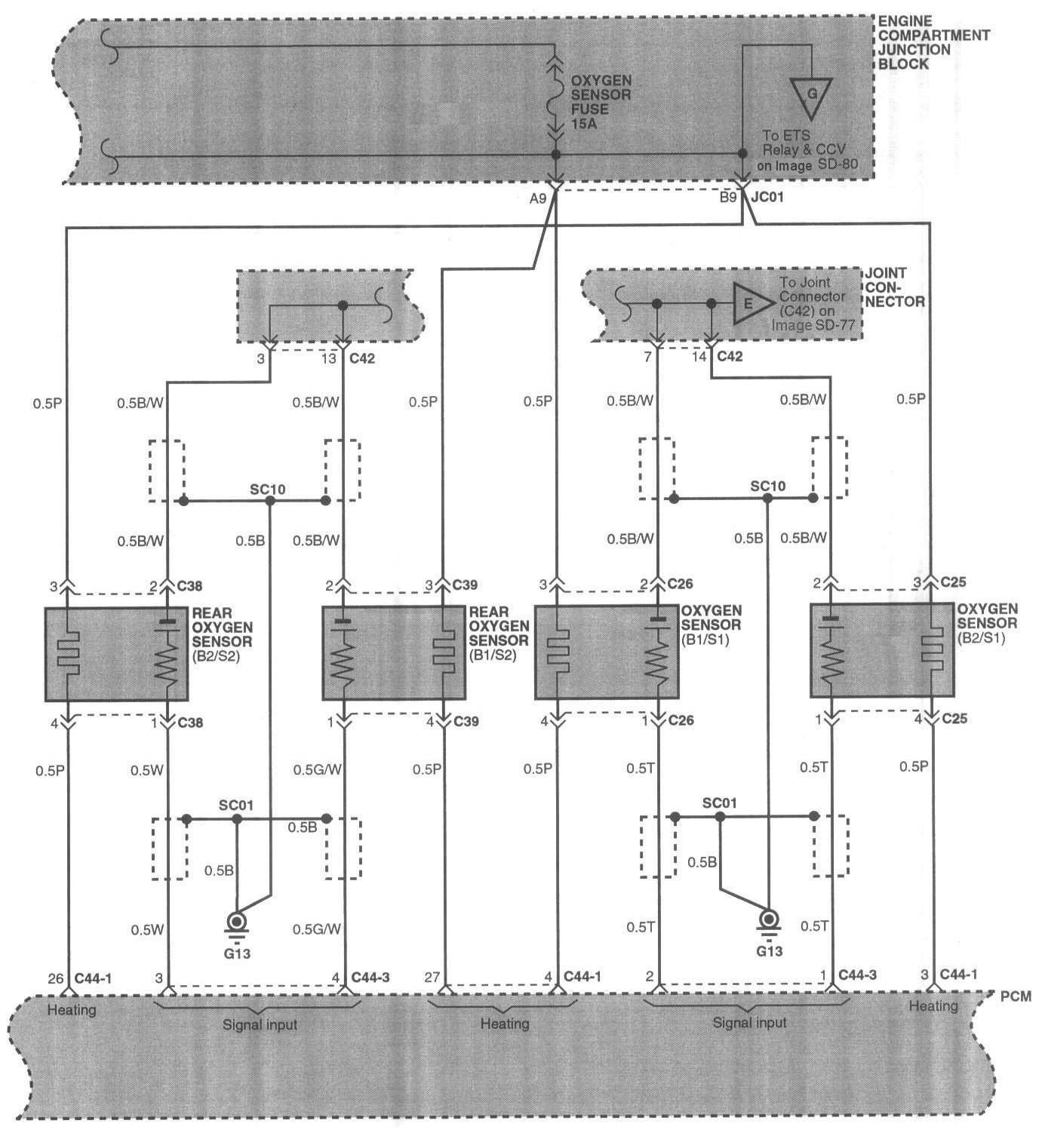

Image SD-75 MFI Control System (4):

Image SD-76 MFI Control System (5):

Image SD-77 MFI Control System (6):

Image SD-78 MFI Control System (7):

Image SD-79 MFI Control System (8):

Image SD-80 MFI Control System (9):

Schematic Drawing:
