Radio, Stereo, and Compact Disc
Radio, Stereo, and Compact Disc

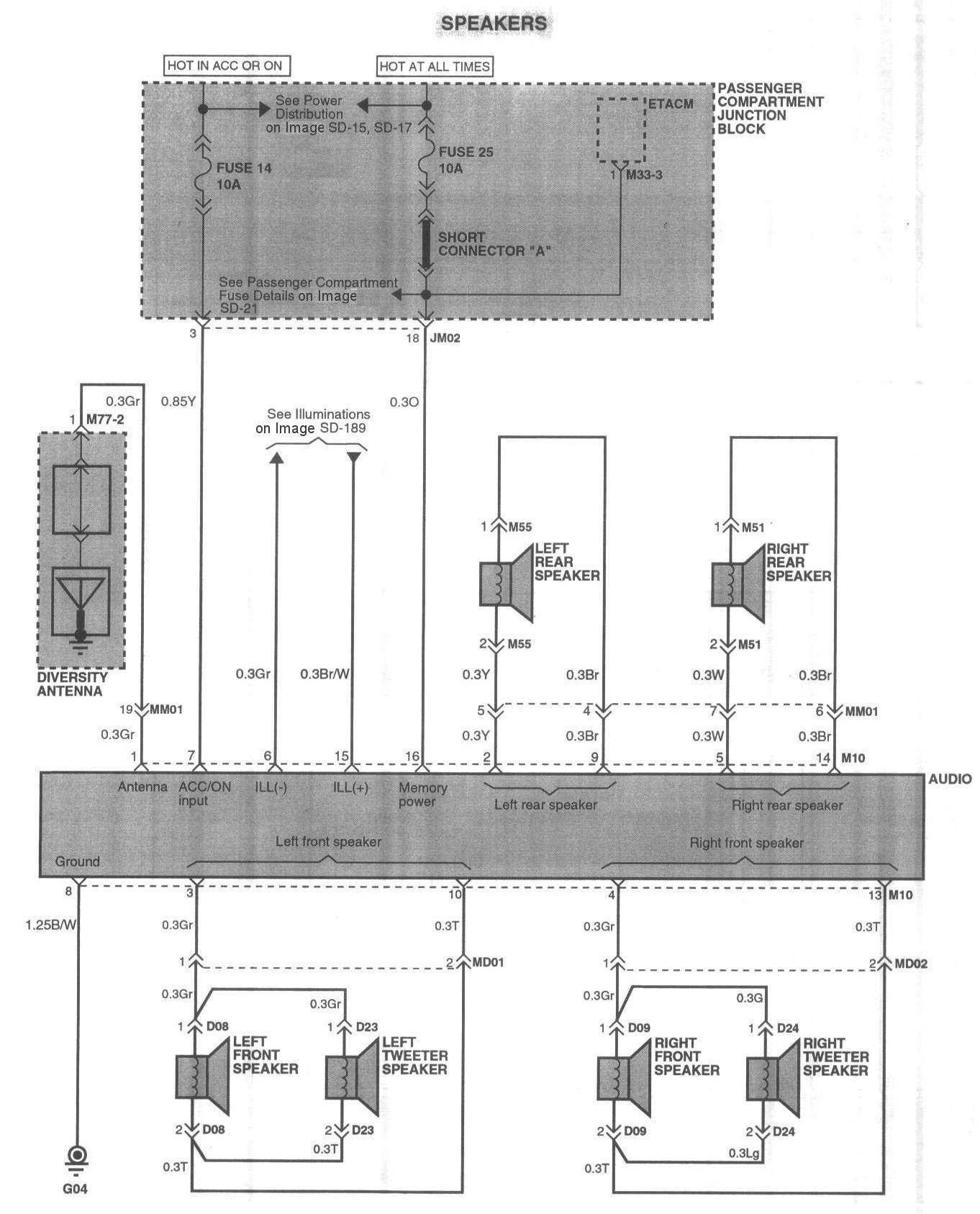

Image SD-150 Audio System (1):

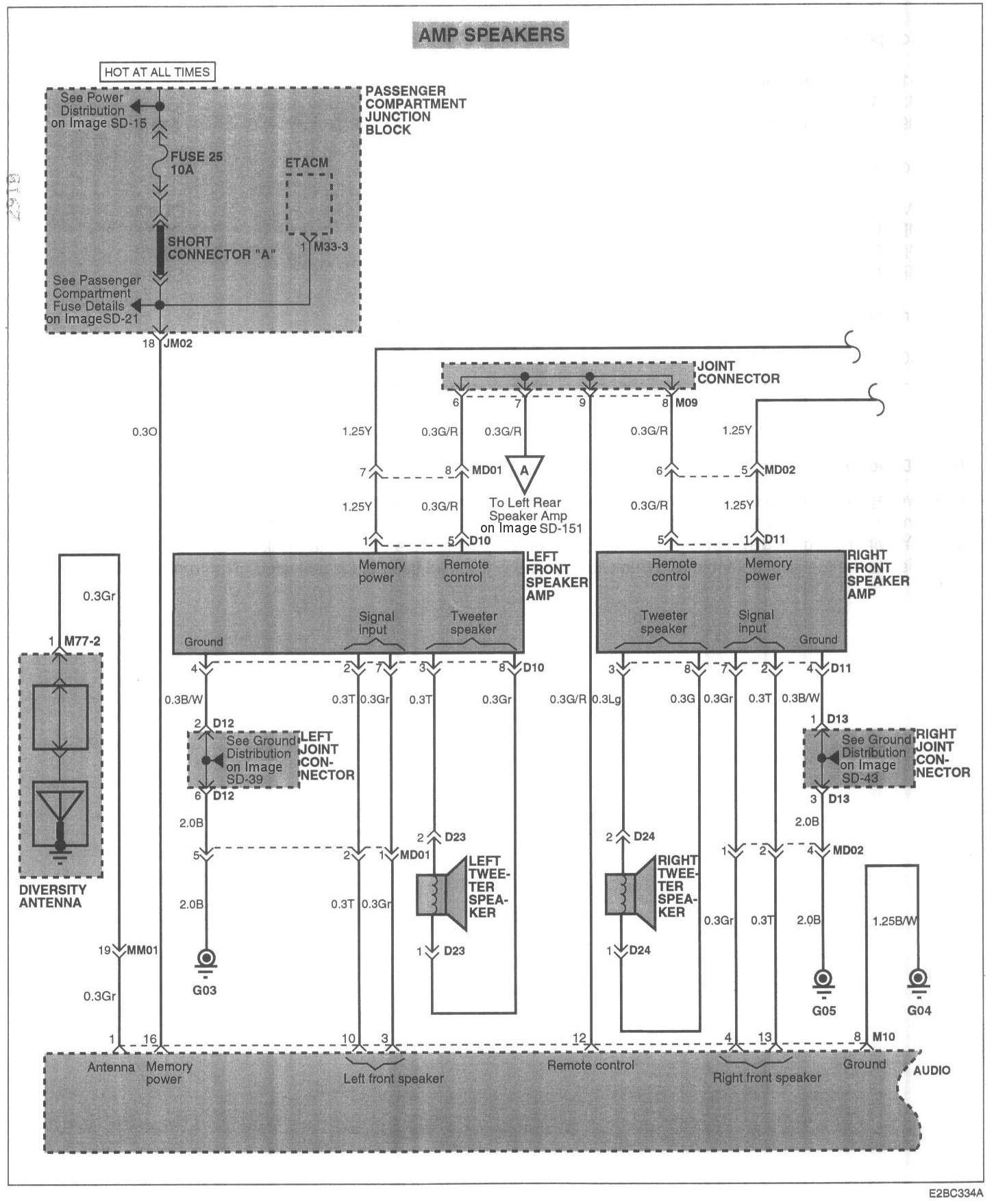

Image SD-151 Audio System (2):
Image SD-152 Audio System (3):
