Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
2003
>>
XG 350 V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
>>
System Diagram
System Diagram

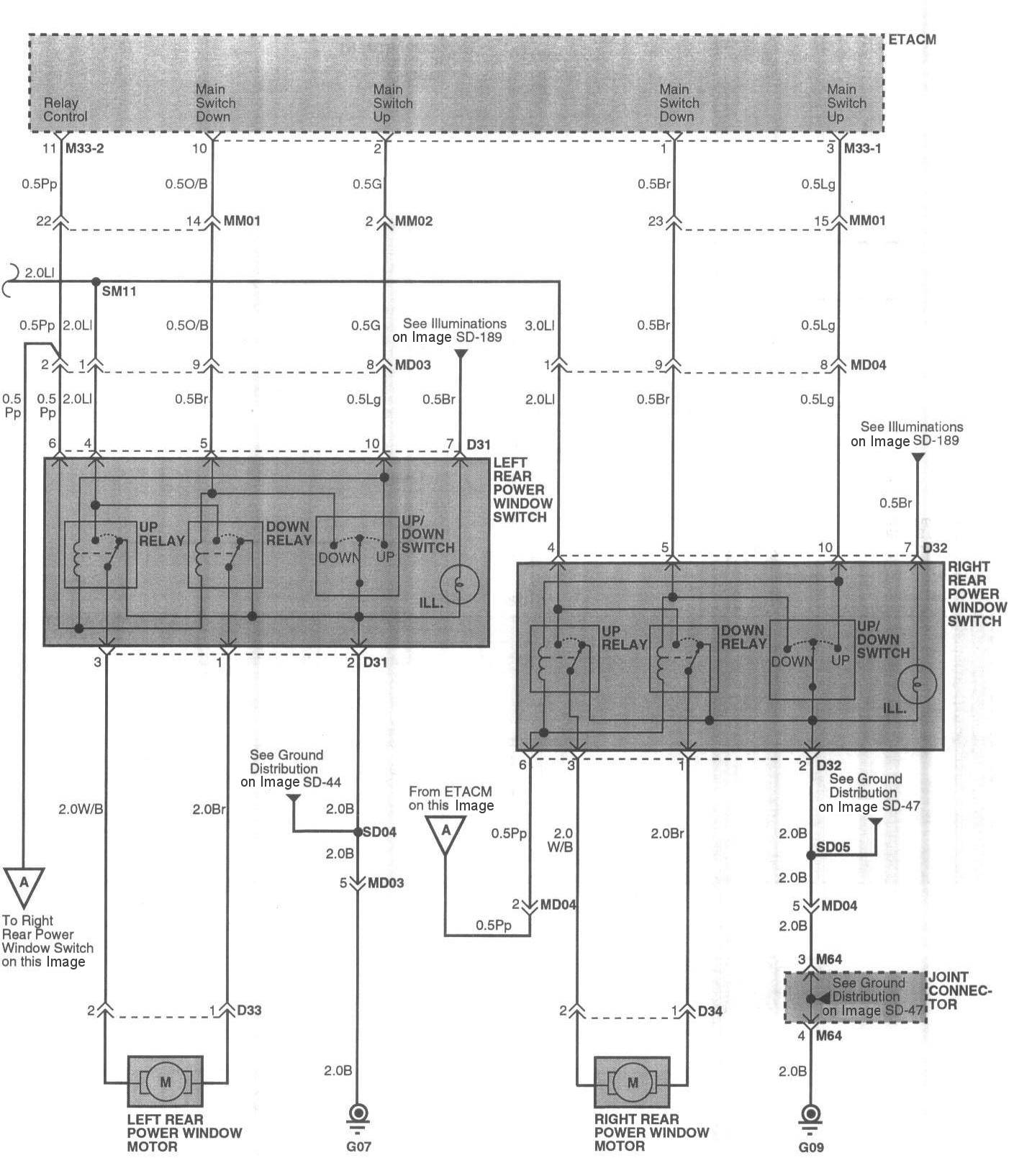

Image SD-142 Power Windows (1):
Image SD-143 Power Windows (2):
Image SD-144 Power Windows (3):
