Cabin Temperature Sensor / Switch: Testing and Inspection
IN-CAR SENSOR
CHECKING

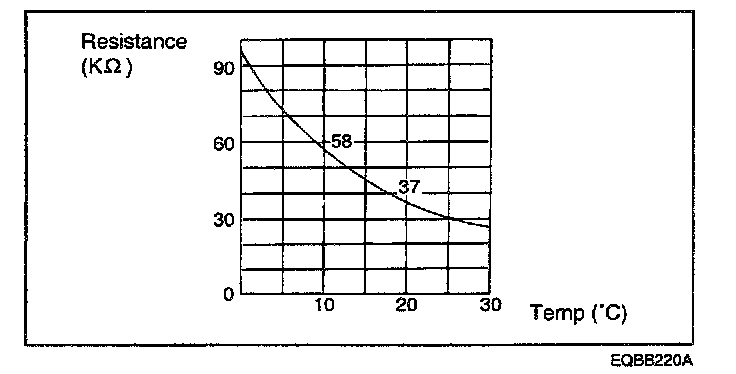

Measure the resistance and the temperature.
25 °C : 30 ± 0.36 Kohm
