Power Transistor HVAC: Locations

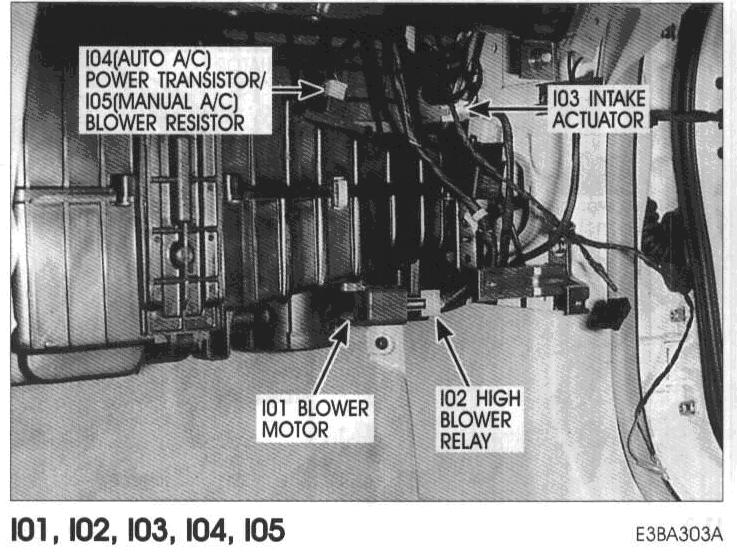

I01 Blower Motor, I02 High Blower Relay, I03 Intake Actuator, I04 Power Transistor, I05 Blower Resistor:
