Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>
Gauges
Gauges

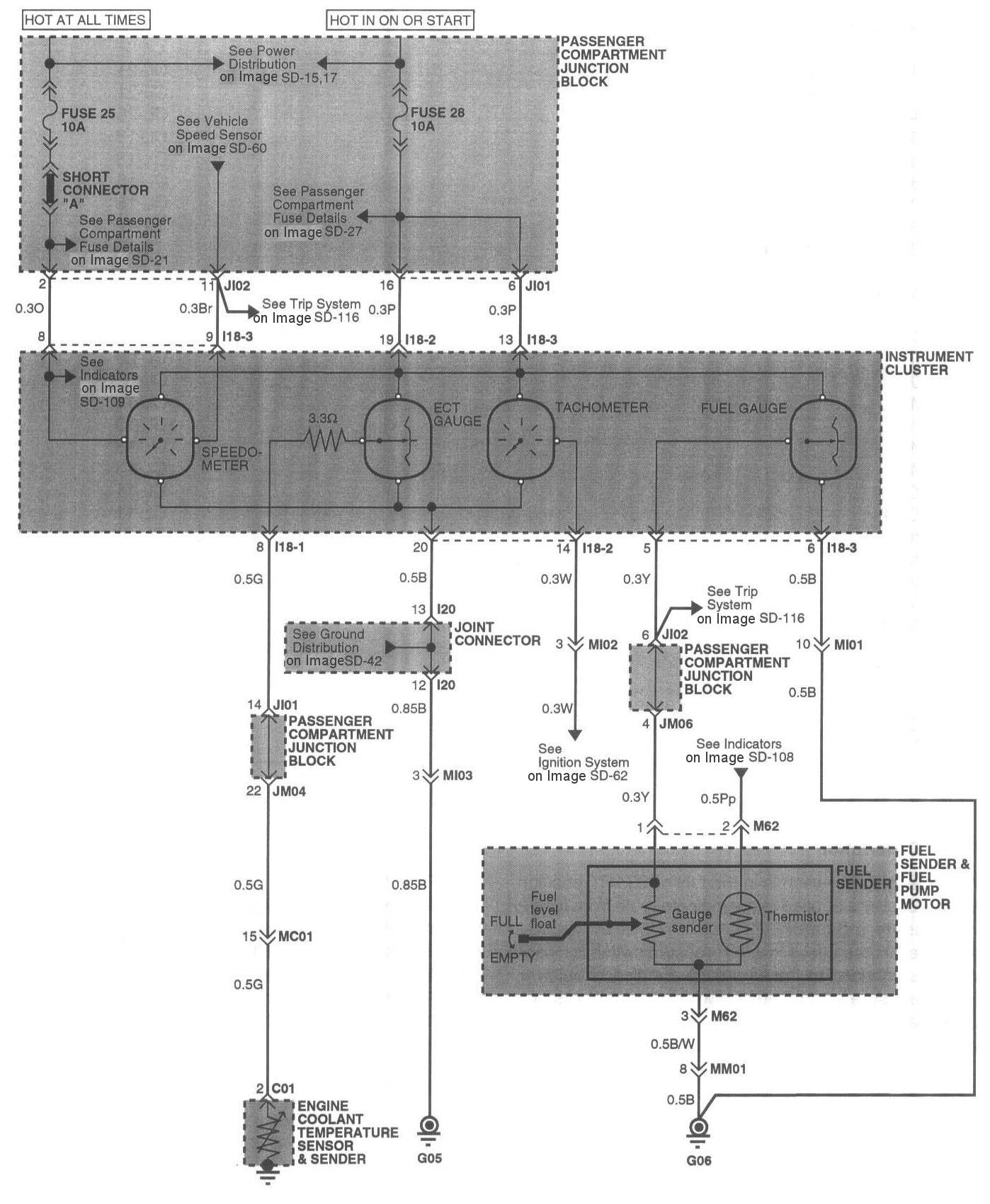

Image SD-114 Gauges (1):
