Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
2003
>>
XG 350 V6-3.5L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>
Indicators
Indicators

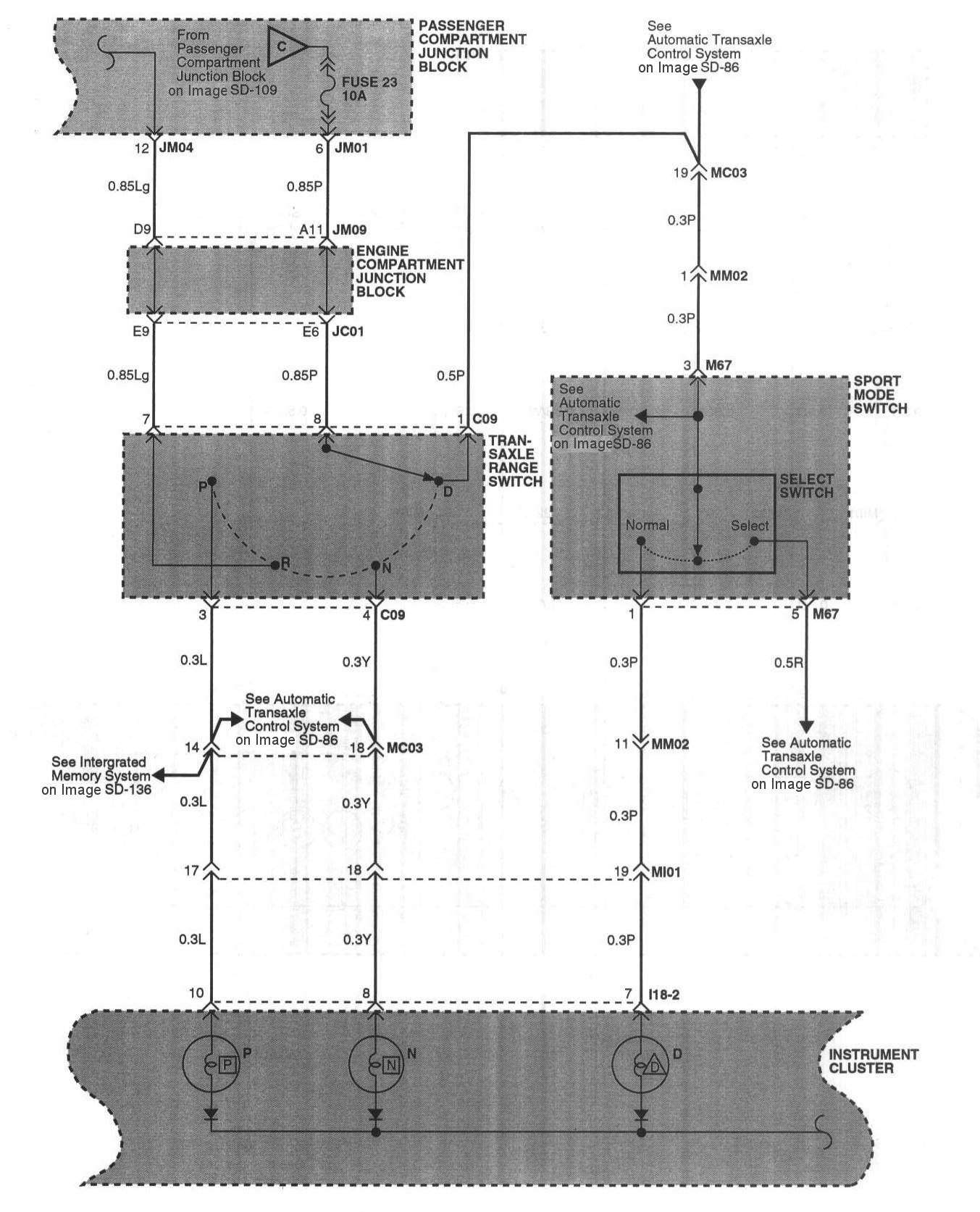

Image SD-108 Indicators (1):

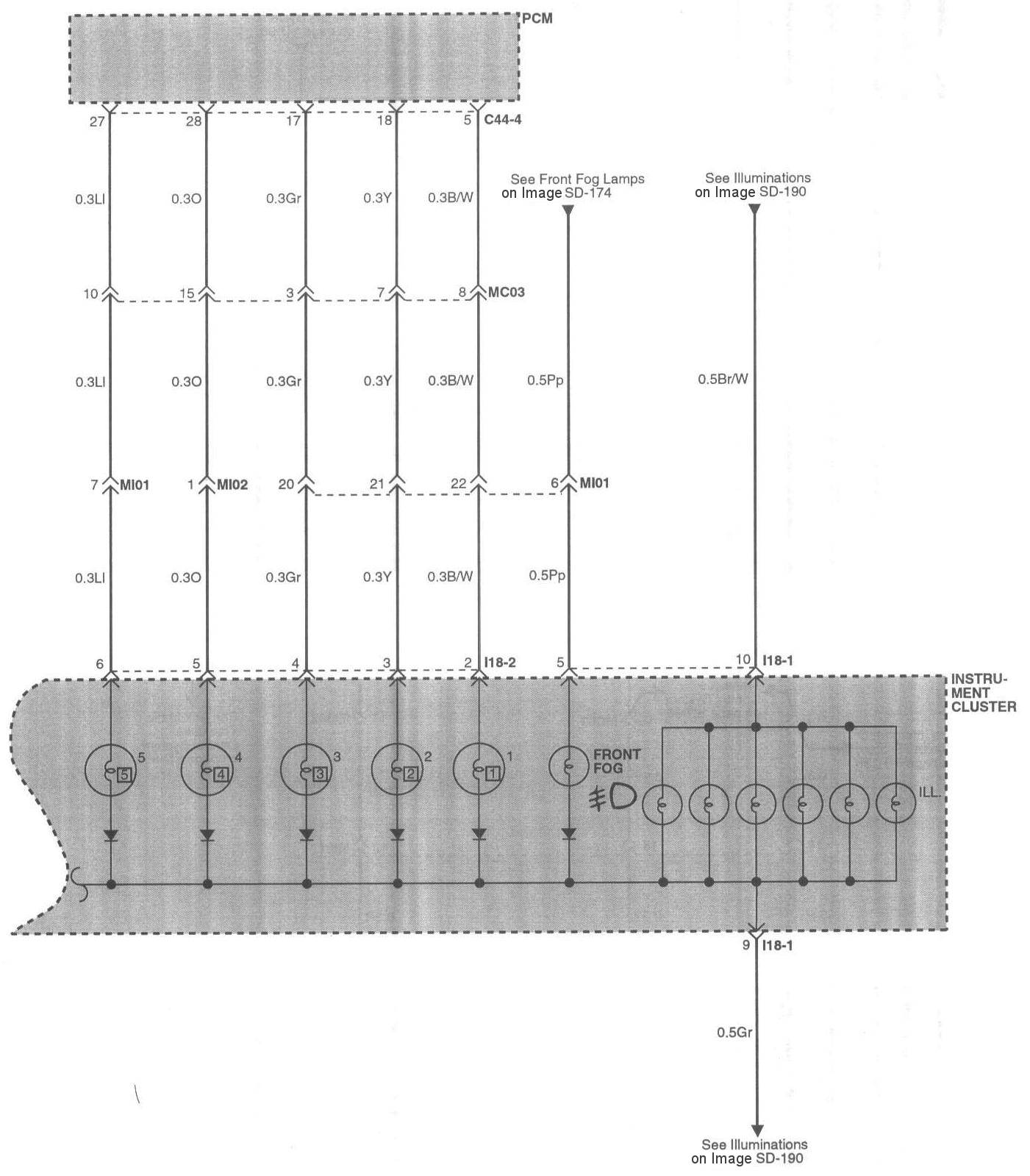

Image SD-109 Indicators (2):

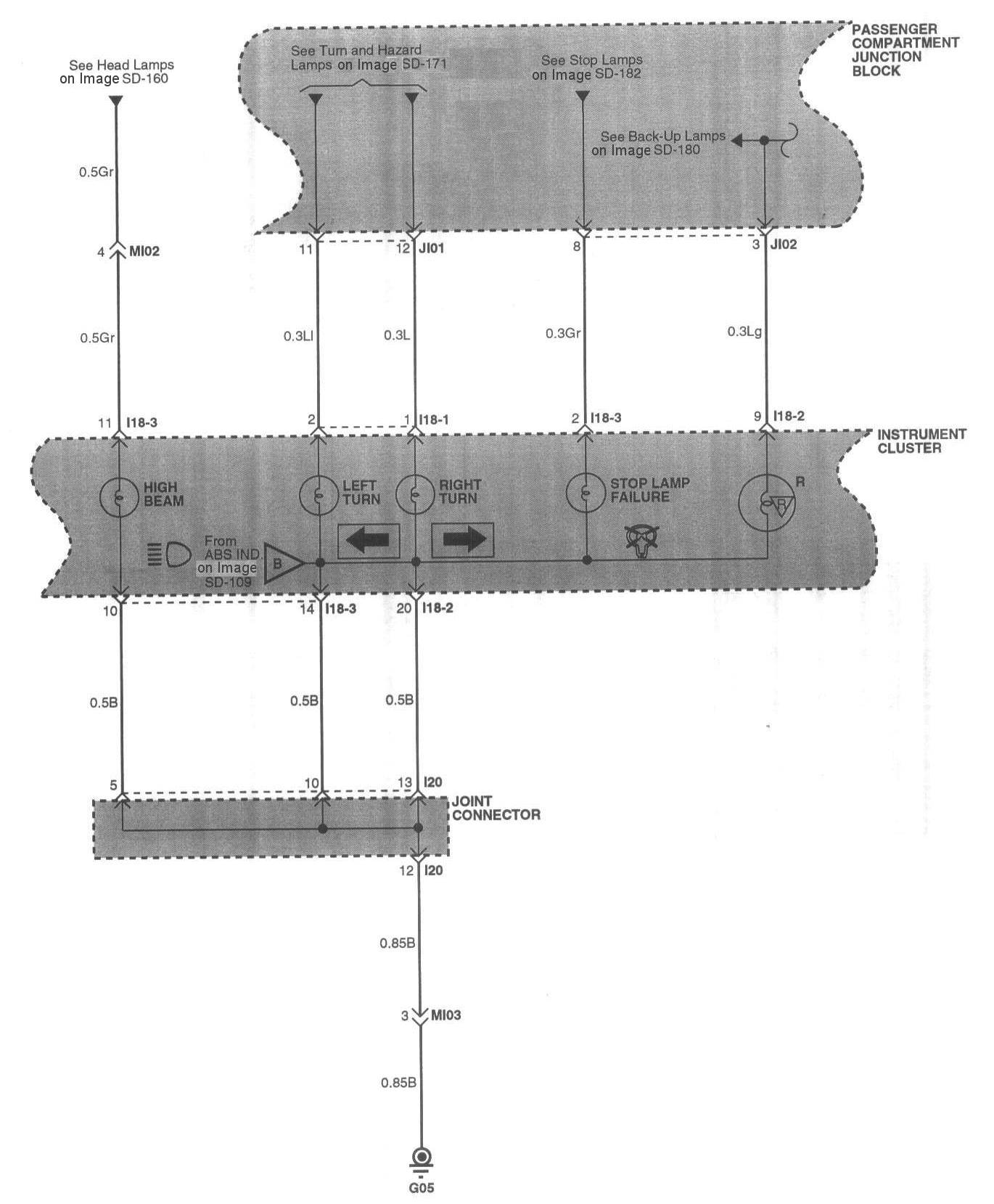

Image SD-110 Indicators (3):

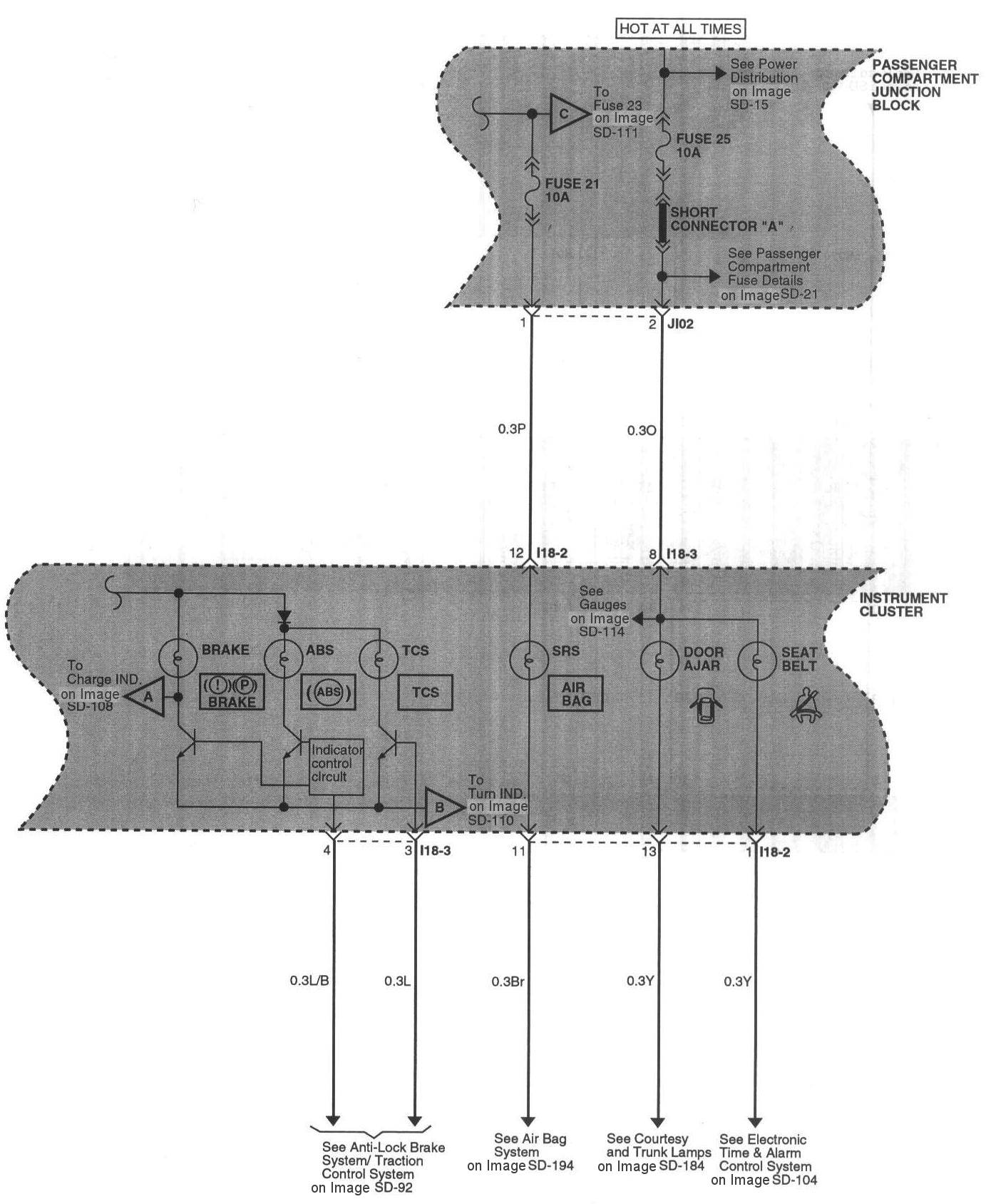

Image SD-111 Indicators (4):
Image SD-112 Indicators (5):
