DRL Control Module - Circuit Diagram:

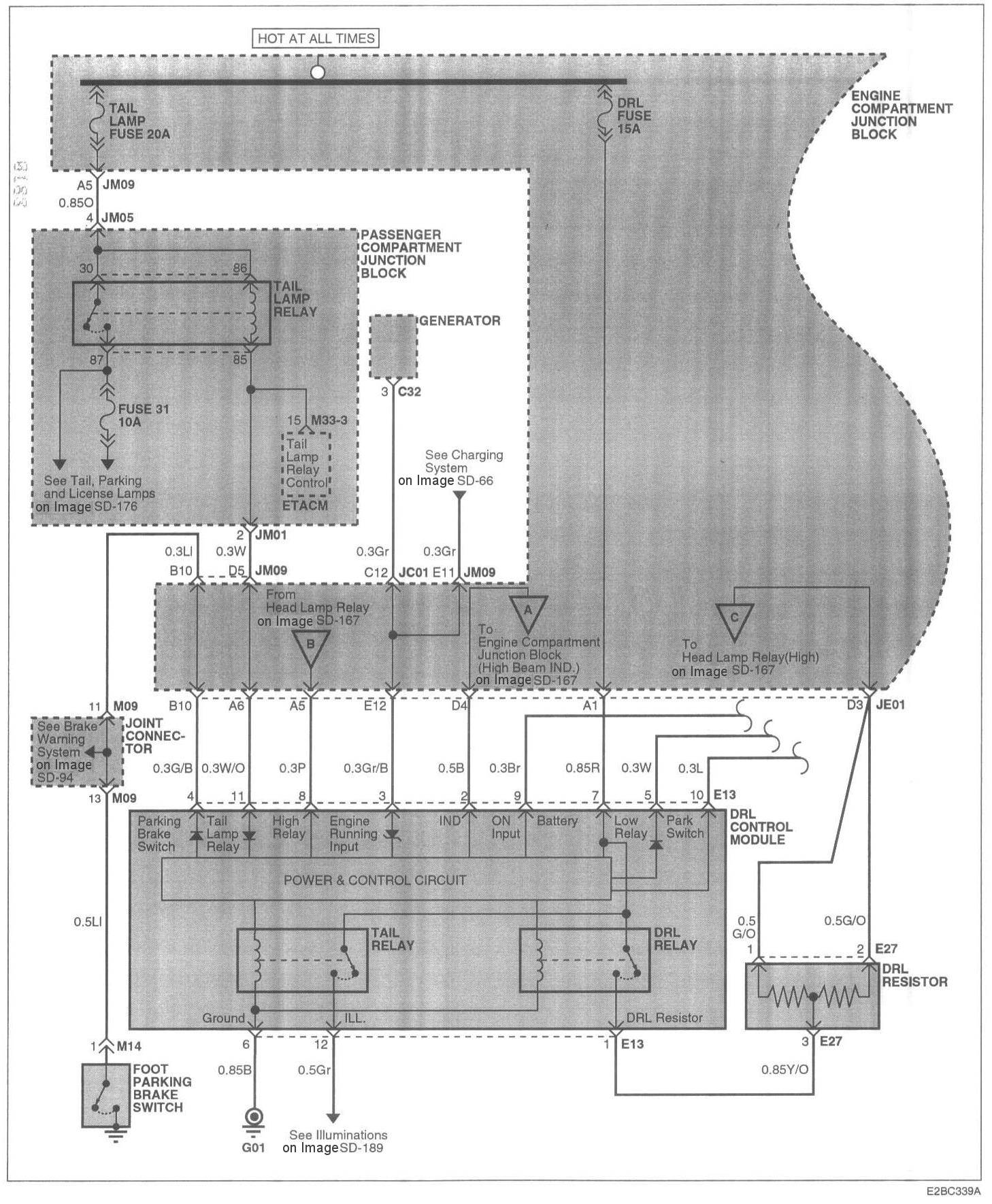

Image SD-166 Daytime Running Lights (1):

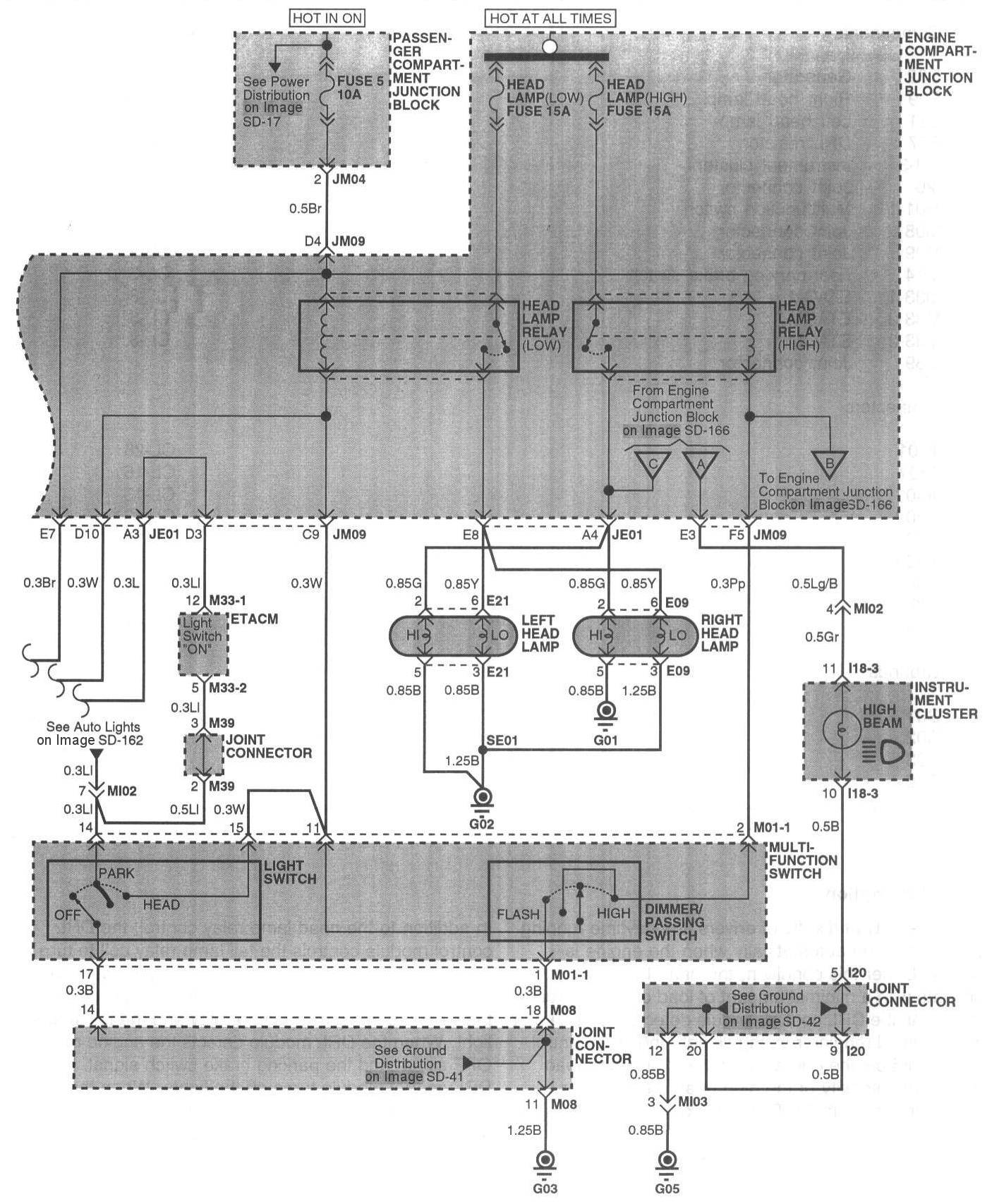

Image SD-167 Daytime Running Lights (2):
