Home
>>
Hyundai
>>
2003
>>
XG 350 V6-3.5L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Tail Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

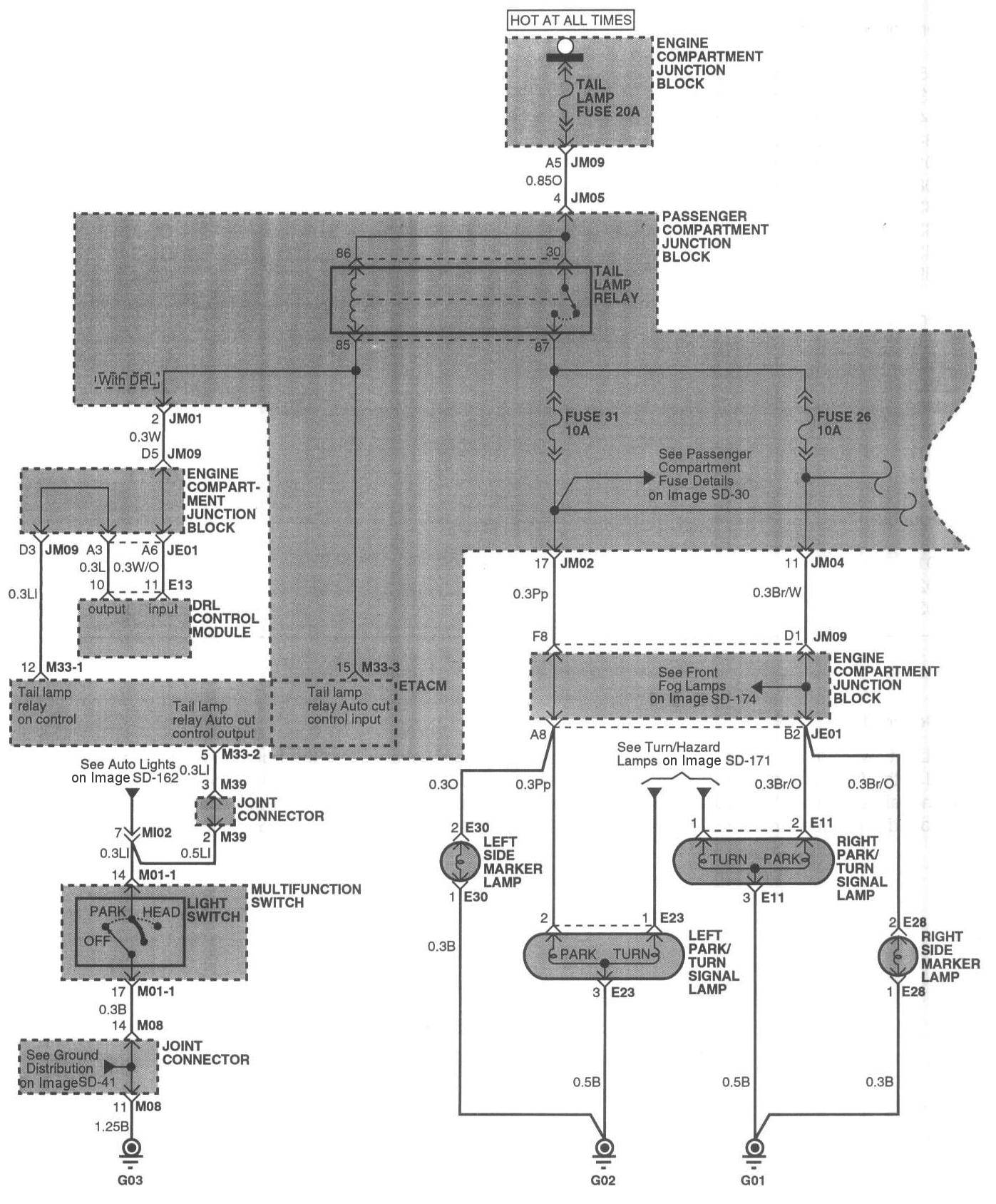

Image SD-176 Tail, Parking And License Lamps (1):
Image SD-177 Tail, Parking And License Lamps (2):
