Fluid Diagrams

AUTOMATIC TRANSAXLE HYDRAULIC CIRCUIT

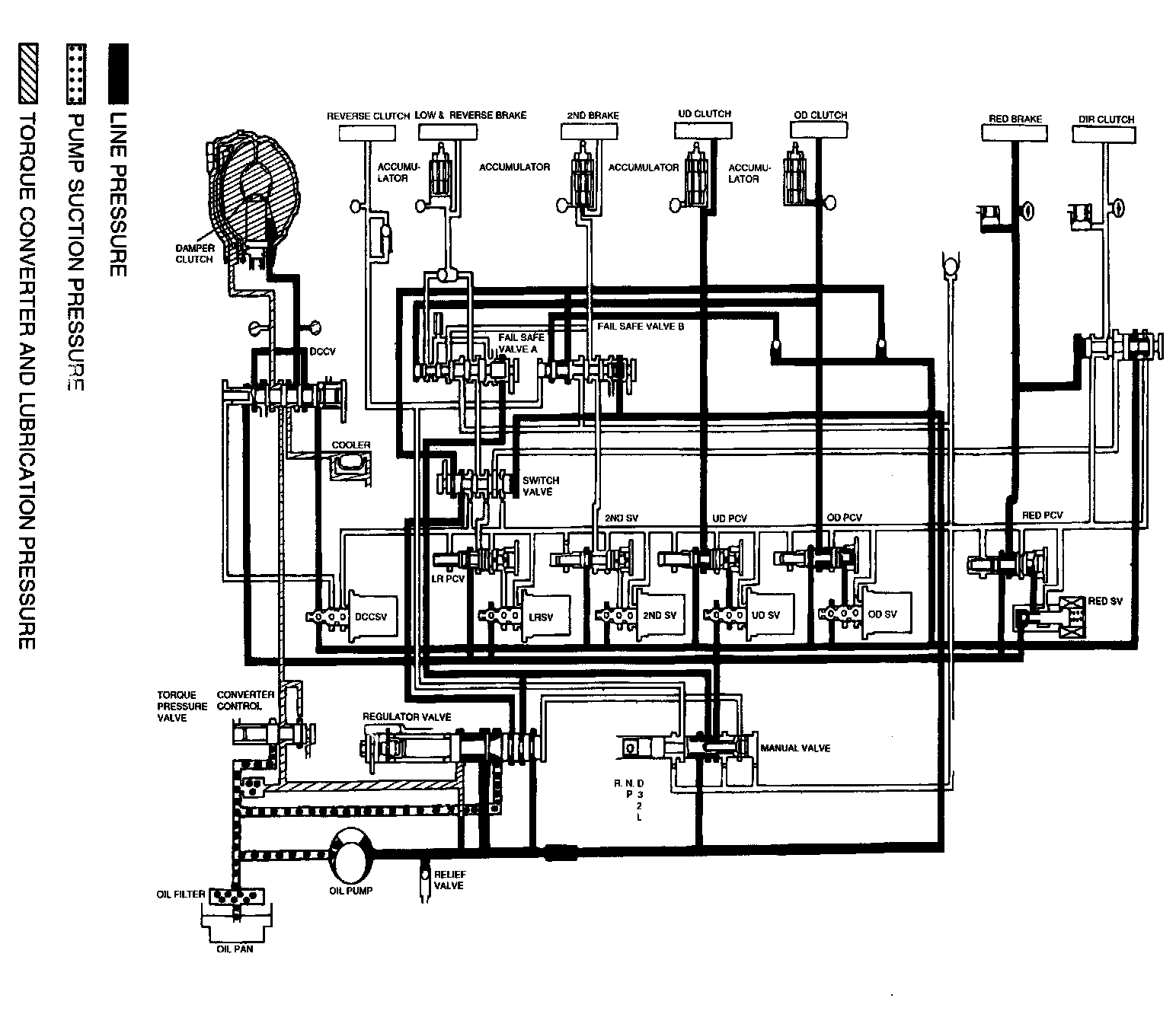

PARKING & NEUTRAL

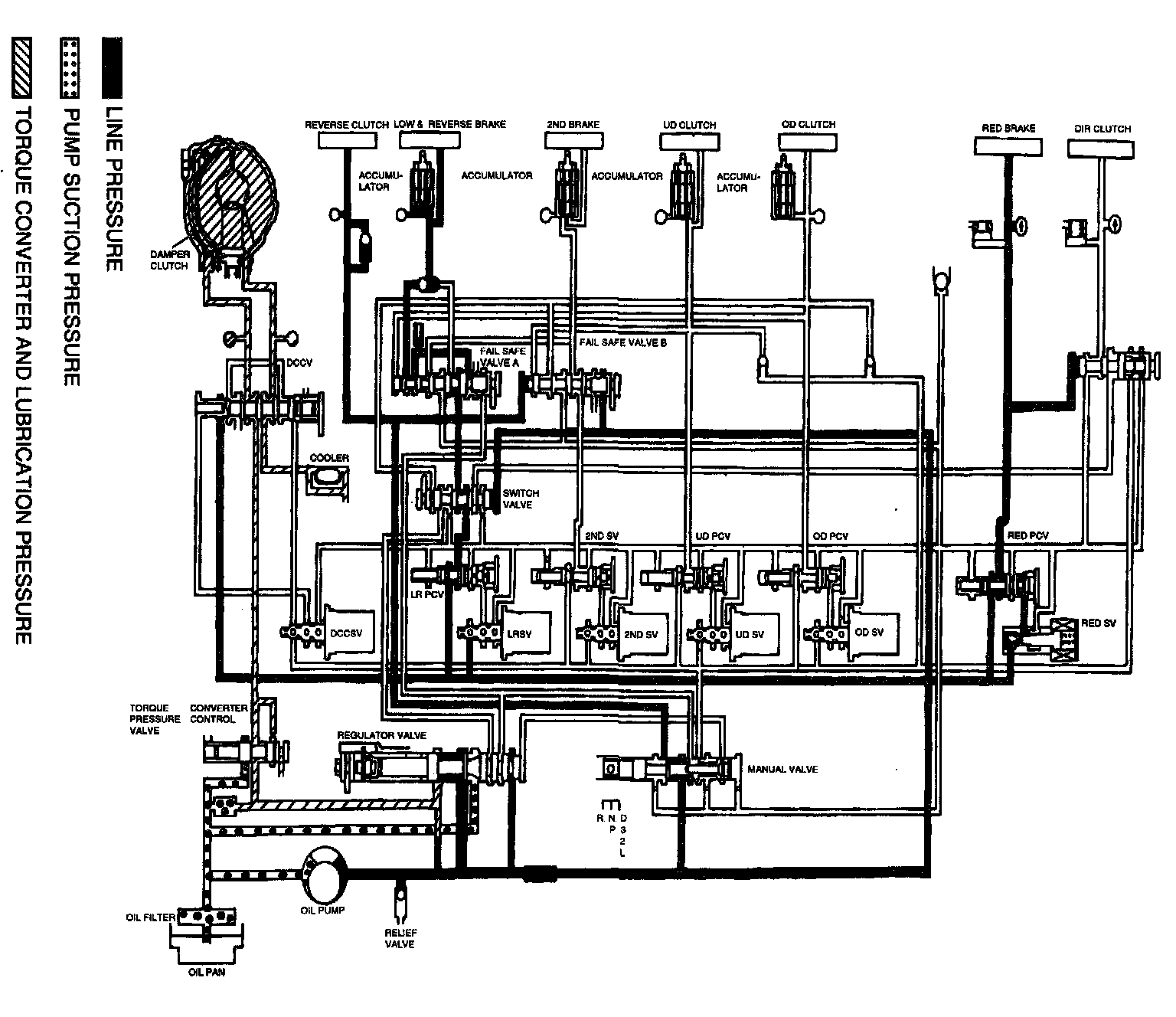

FIRST

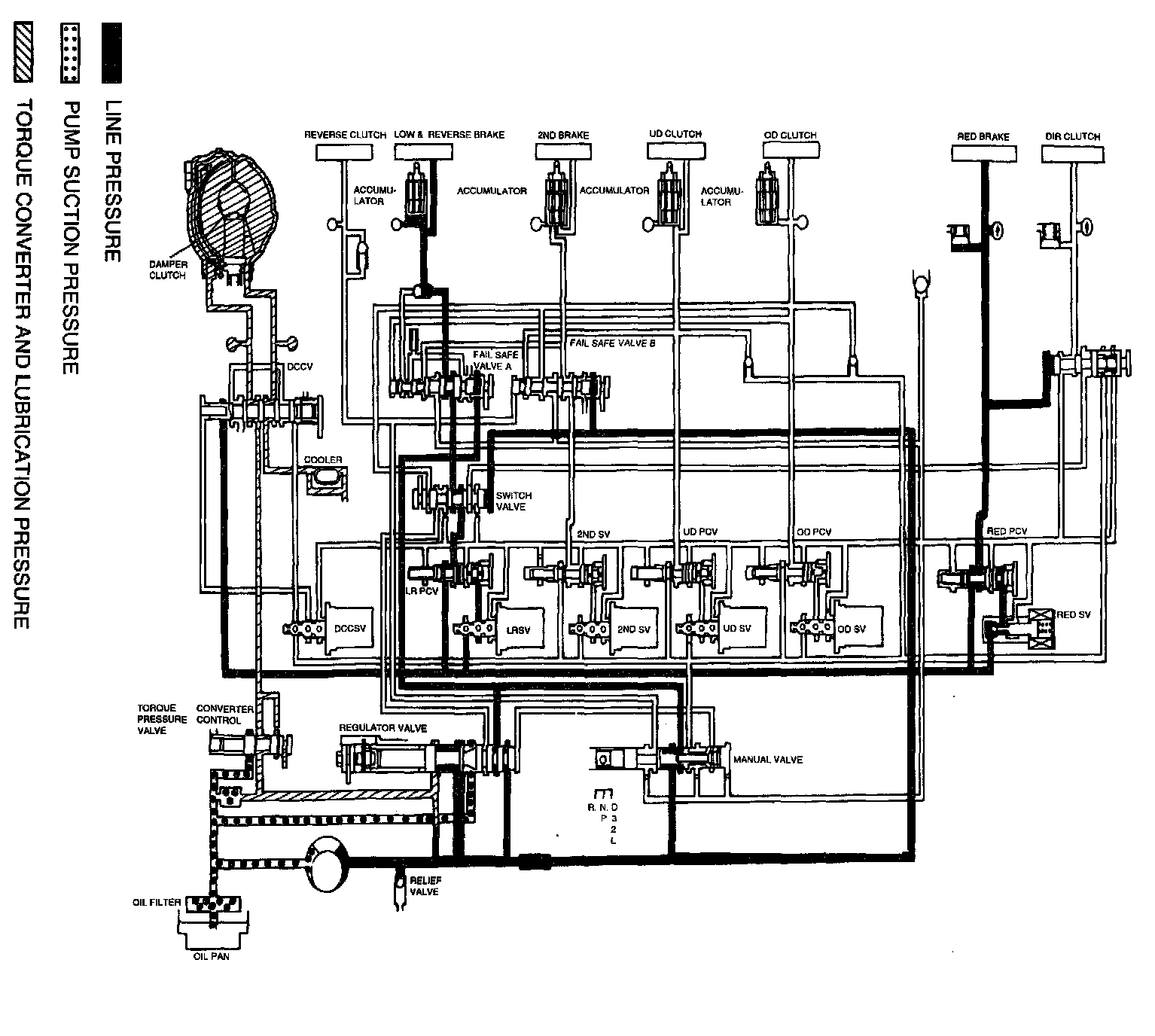

SECOND

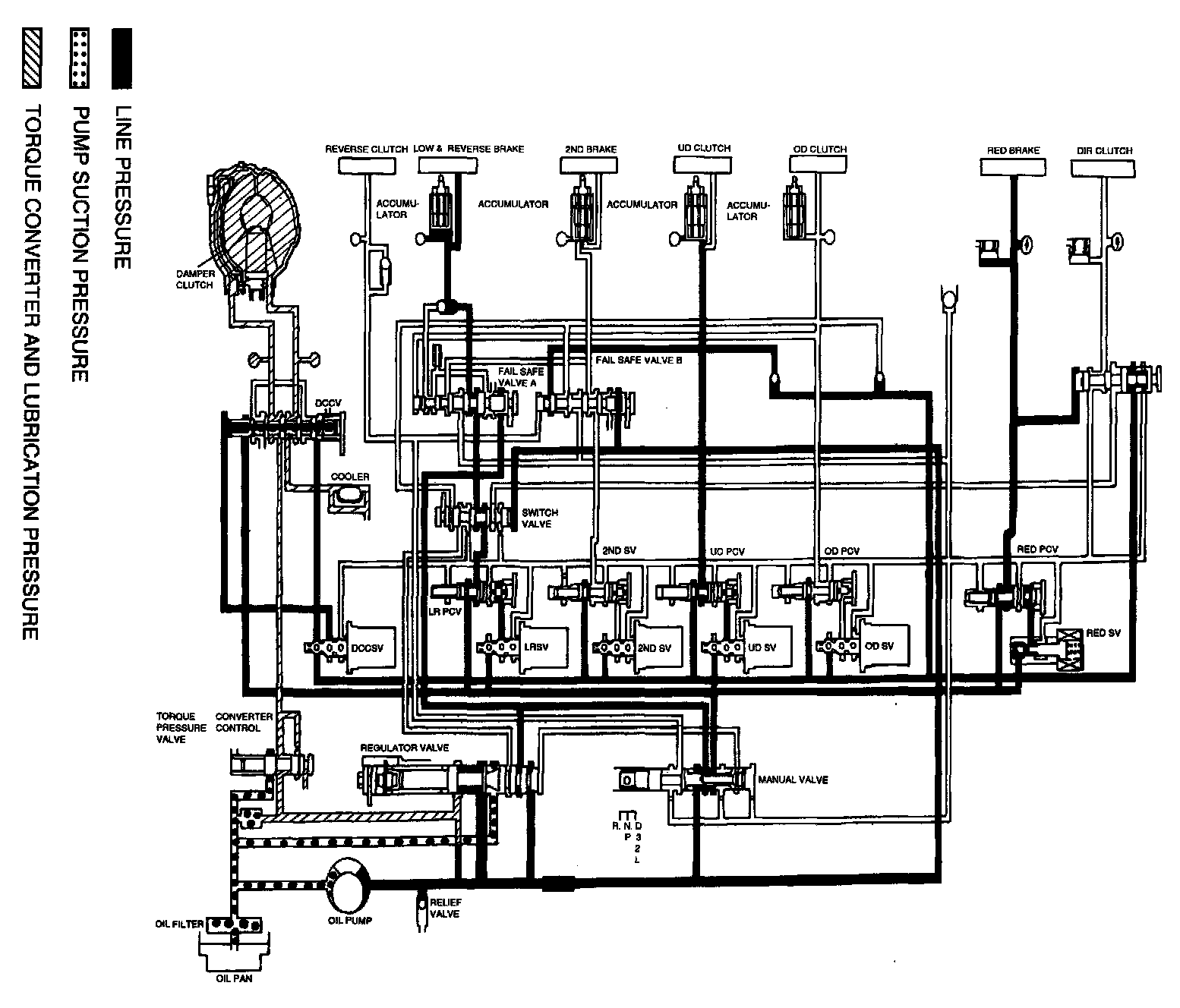

THIRD

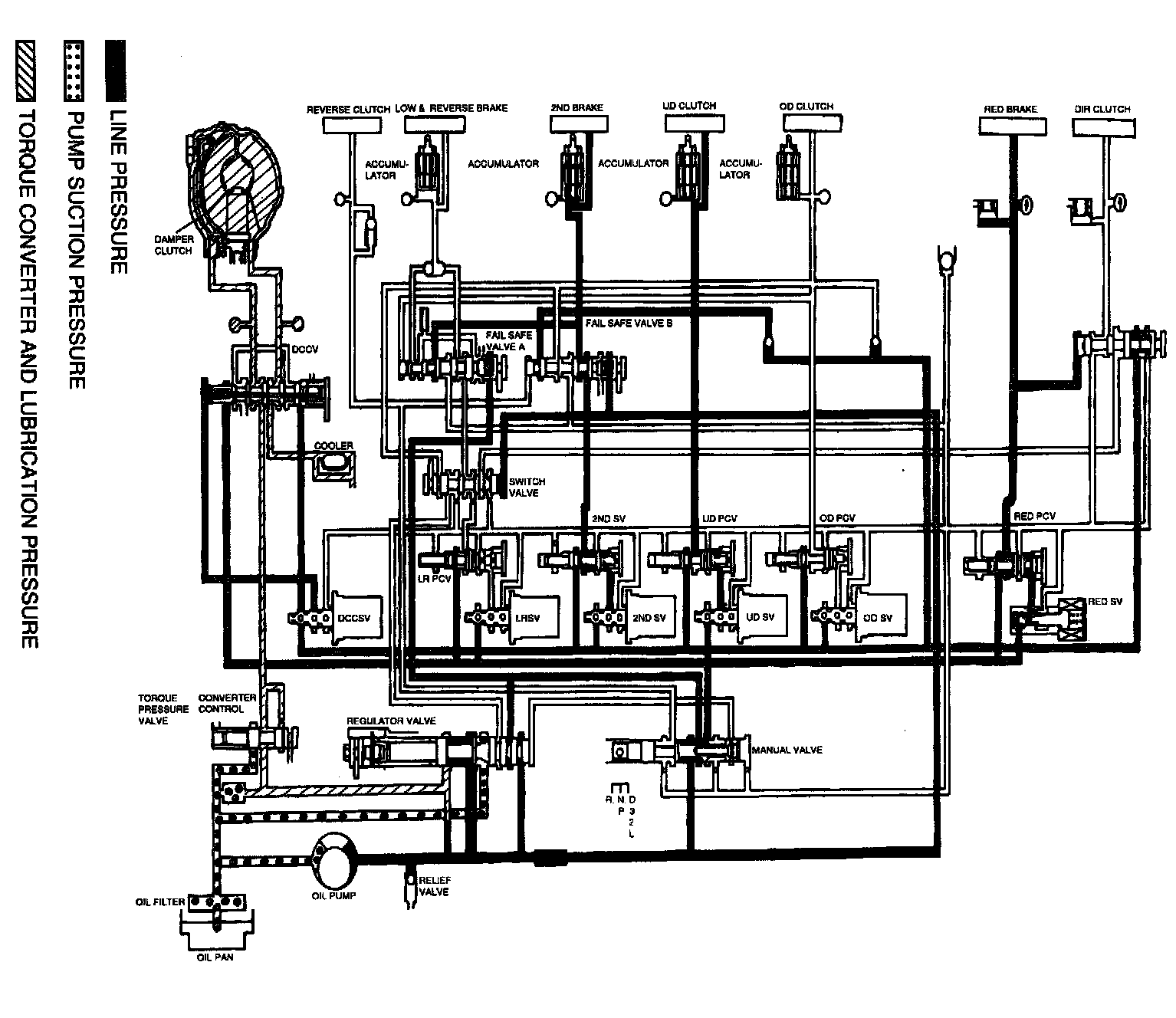

FOURTH





FIFTH





REVERSE

TCM CIRCUIT DIAGRAM

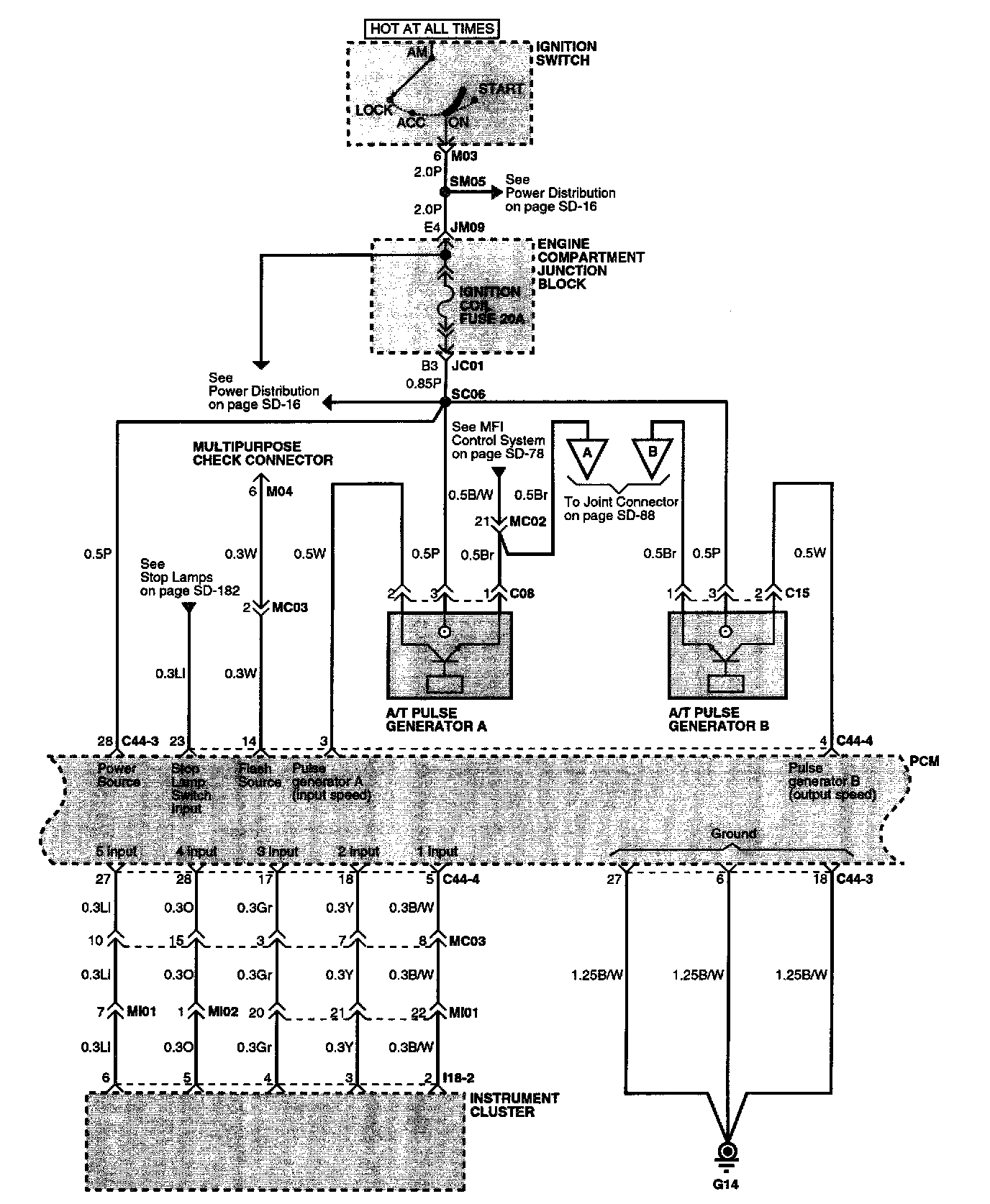

1 of 3

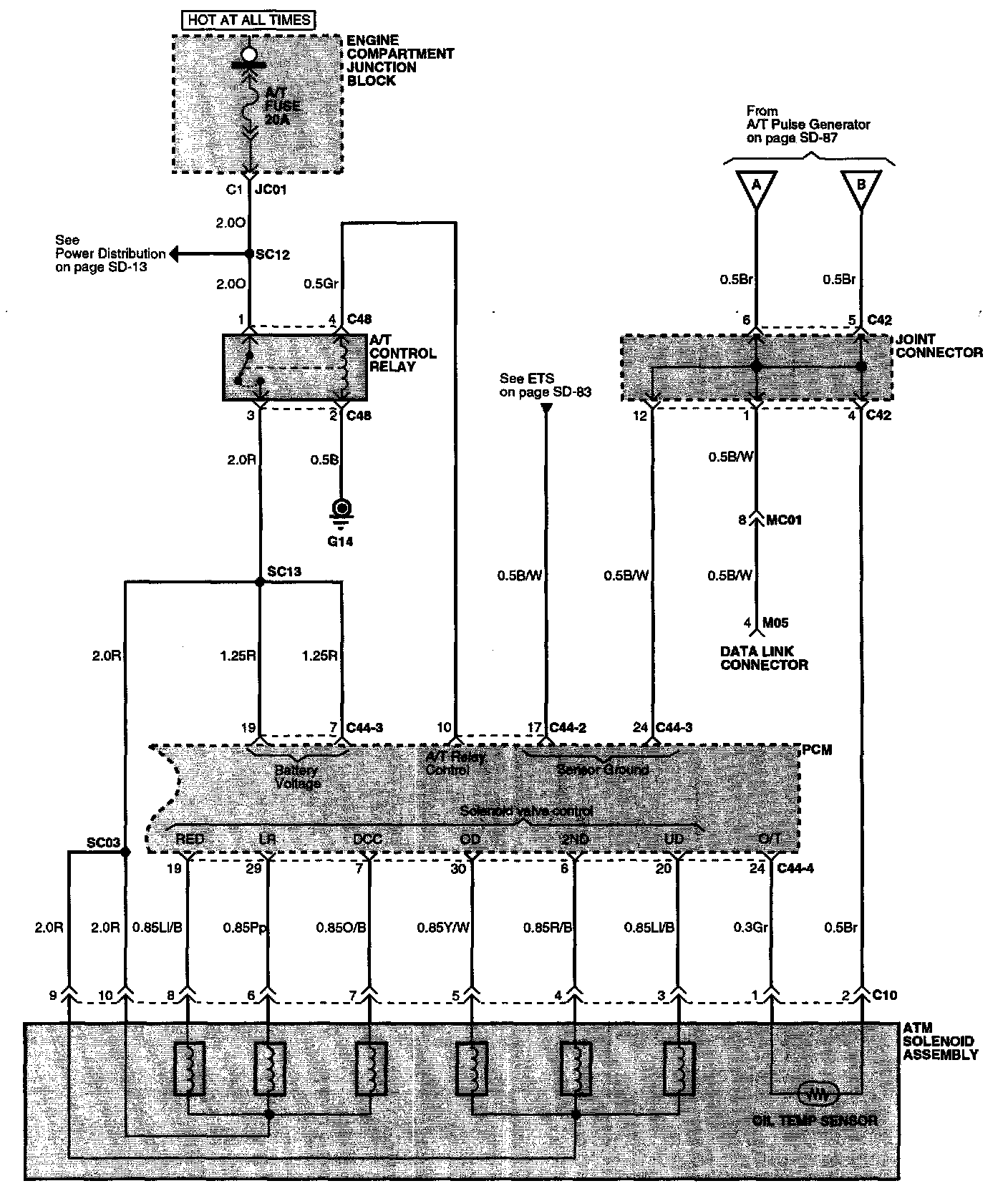

2 of 3





3 of 3
