Radio, Stereo, and Compact Disc: Service and Repair

Audio Unit Part 1:

Audio Unit Part 2:

Audio Unit Part 3:

REMOVAL AND INSTALLATION
1. Disconnect the negative battery terminal.

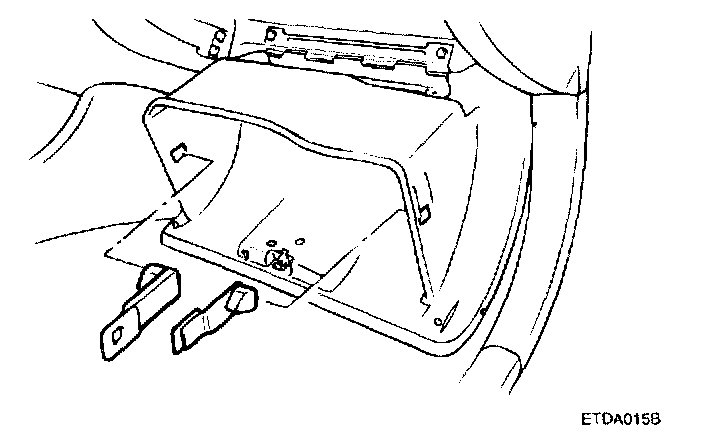

2. Remove the glove box.




3. Disconnect the heater control cables under the glove box and lower crash pad.




4. Loosen the screws and remove the center facia panel.




5. Remove the audio mounting screws (4EA) and the audio system.
6. Installation is the reverse of removal.
