Home >> Hyundai >> 2004 >> Accent L4-1.6L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Control Arm

Control Arm

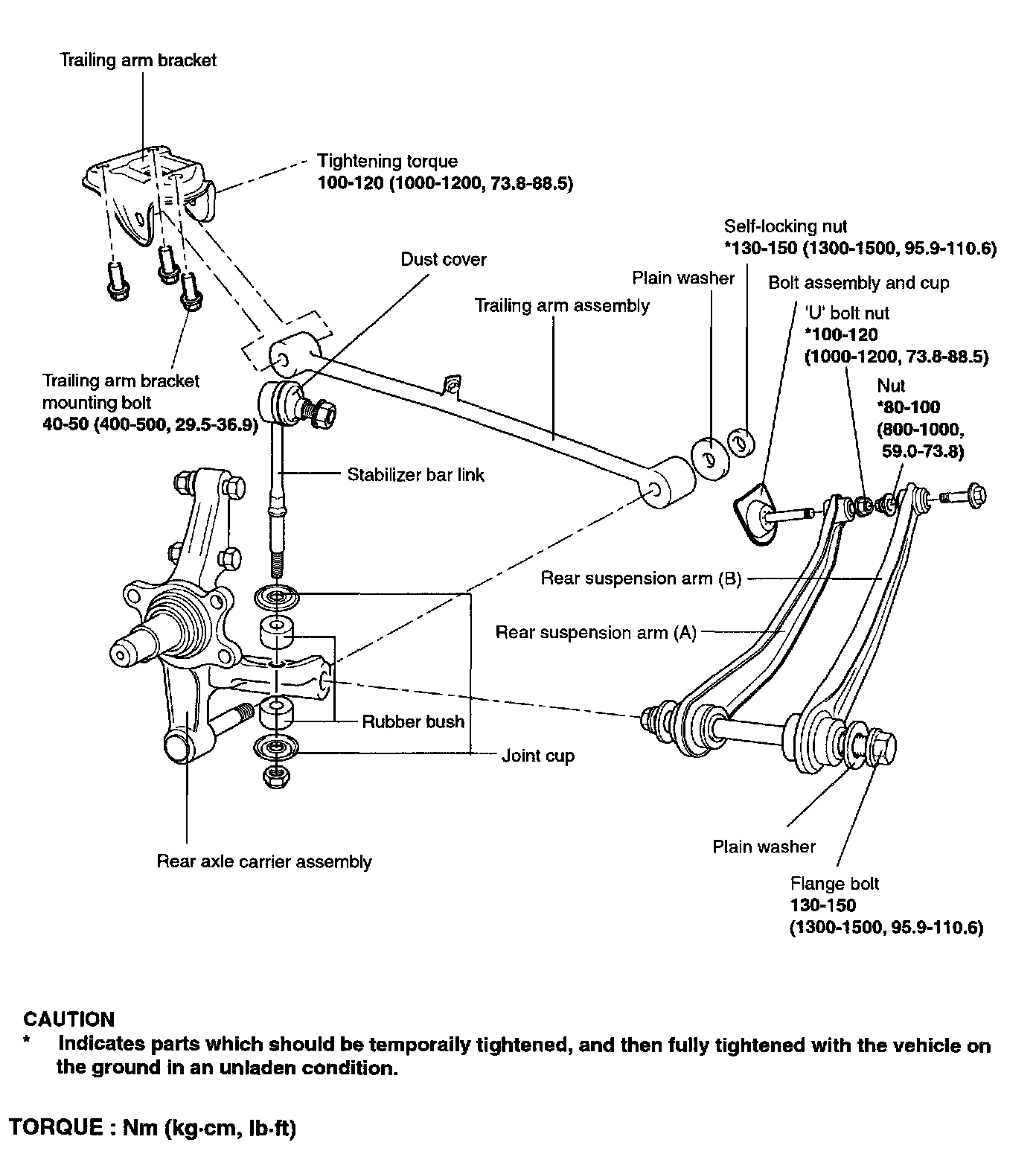

UPPER ARM, LOWER ARM AND ASSIST LINK (Rear):
