Main Harness
Main Harness

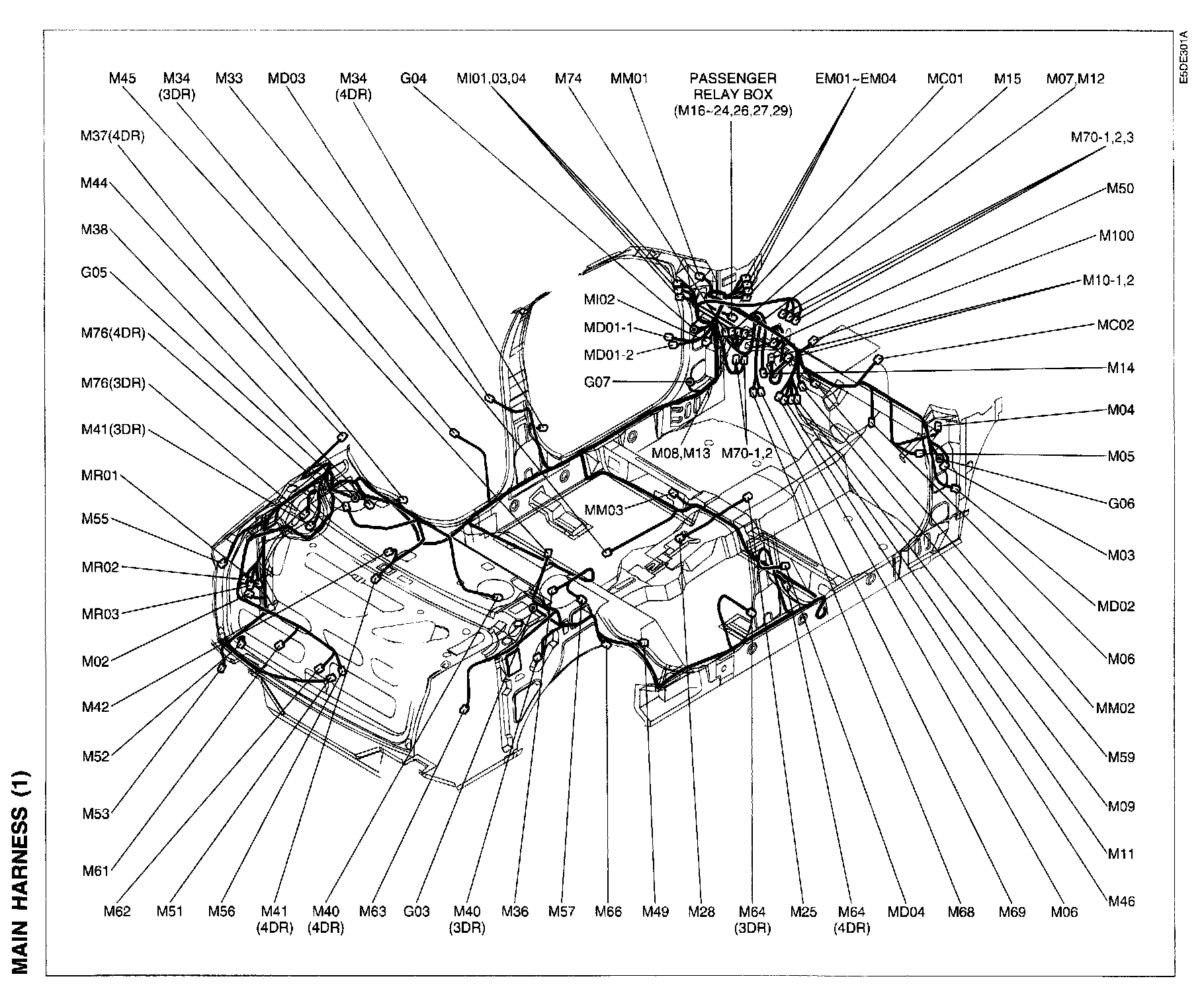

Main Harness View:

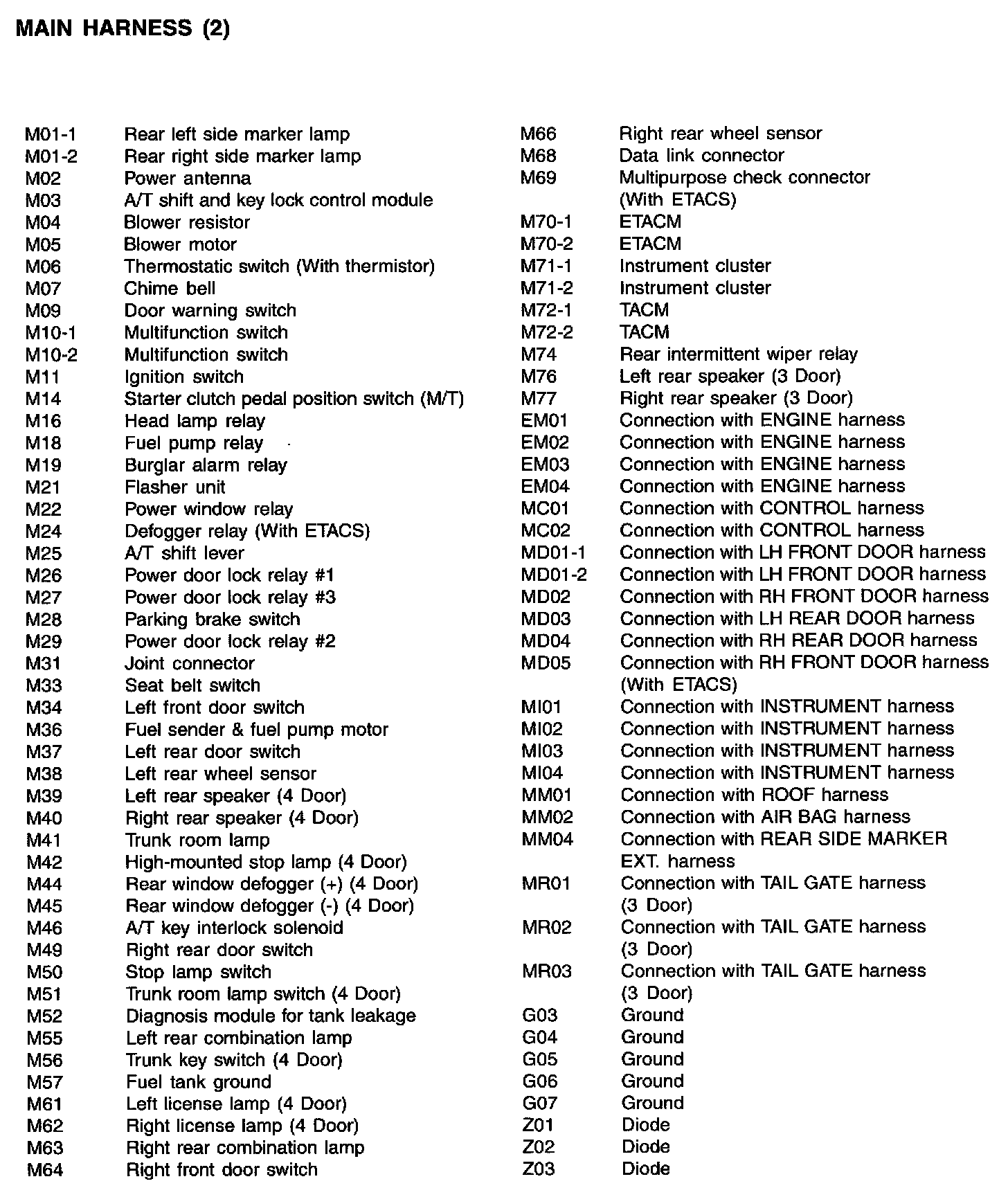

Main Harness Index:

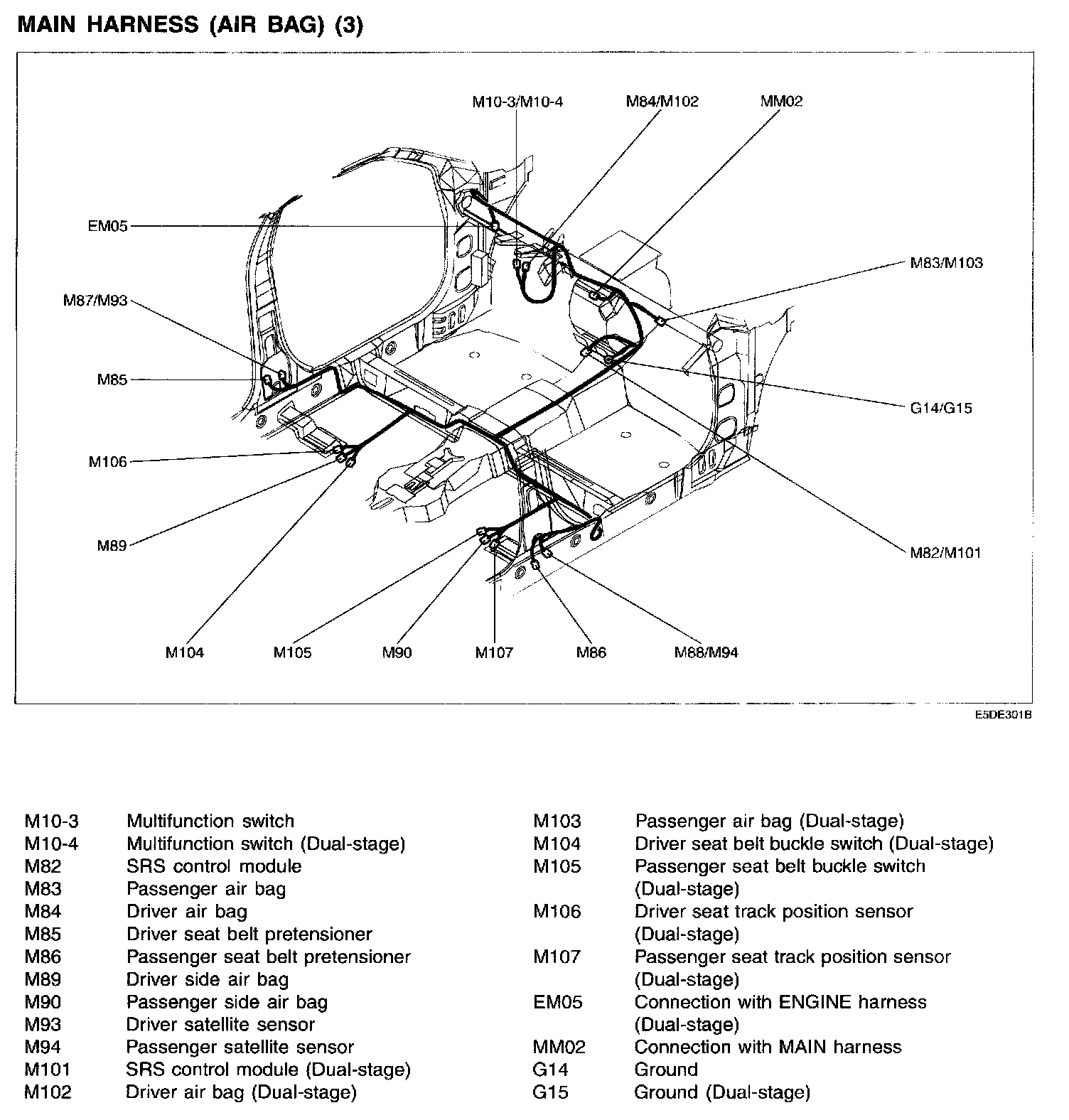

Main Harness (Air Bag):

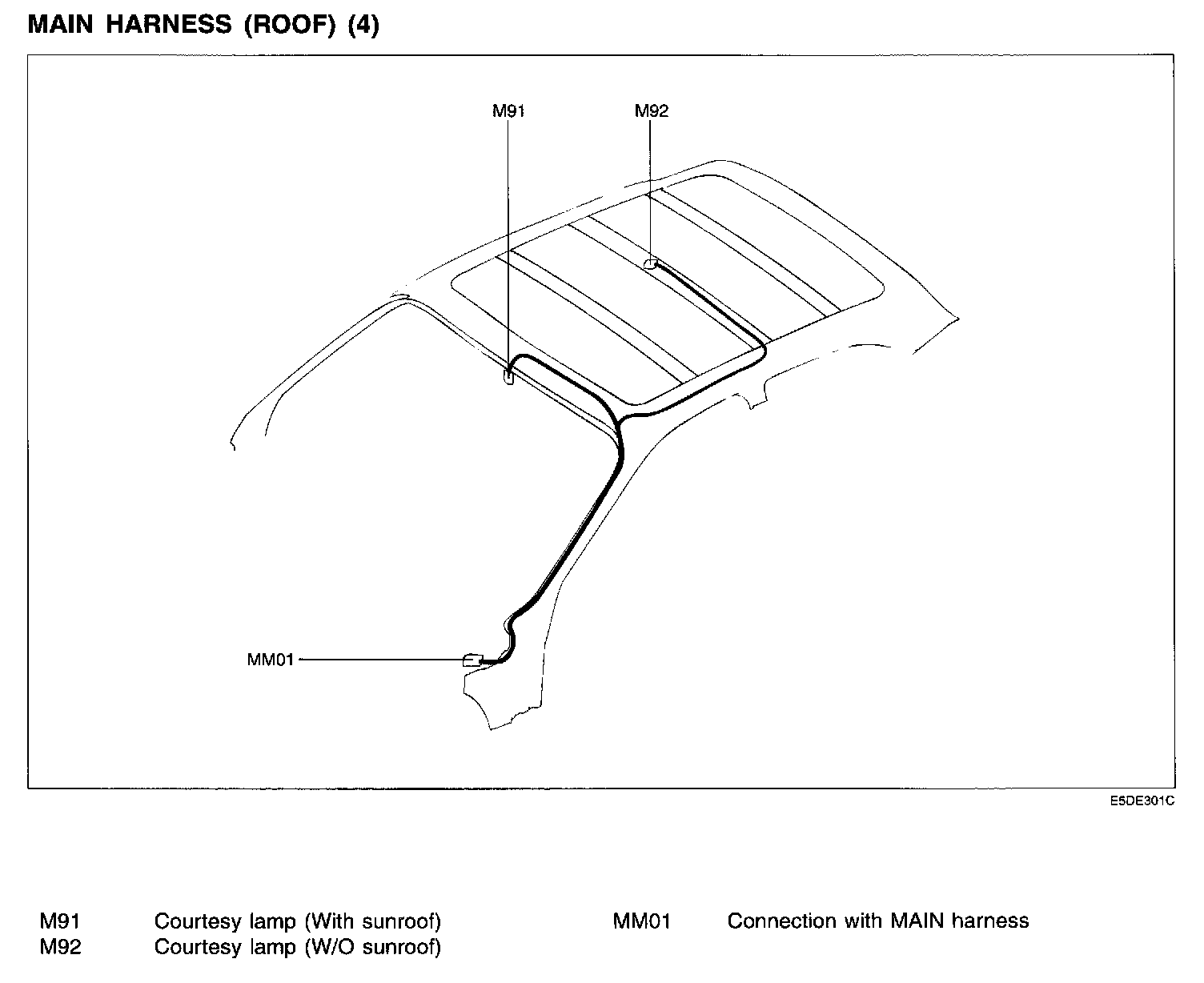

Main Harness (Roof):
